How Does Photovoltaic Heat Pump Work?

Views: 0     Author: Site Editor     Publish Time: 2025-07-14      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
sharethis sharing button

Ever wondered how to heat your home using the power of the sun? Photovoltaic heat pumps might be the answer. These systems combine solar panels and heat pumps to efficiently warm your home. In this post, you'll learn the basics of photovoltaic heat pumps, their role in renewable energy, and why they are a smart choice for eco-conscious homeowners.


How Photovoltaic Heat Pumps Work

Integration of Solar Panels and Heat Pumps

Photovoltaic heat pumps combine two powerful technologies to heat your home efficiently. Solar panels, usually installed on your roof, capture sunlight and convert it into electricity. This electricity powers the heat pump, which extracts heat from the outside air—even on chilly days—and transfers it indoors. By linking these two systems, you use clean solar energy to run the heat pump, reducing your reliance on the grid and lowering energy bills.

The solar panels generate direct current (DC) electricity, which an inverter converts to alternating current (AC) to power the heat pump. When sunlight is abundant, the system primarily runs on solar energy. During less sunny periods, it can switch to grid electricity as a backup, ensuring your home stays warm without interruption. This seamless integration offers flexibility and maximizes renewable energy use.

Energy Conversion Process

The heart of the heat pump's operation lies in its ability to move heat rather than create it. Here's how the energy conversion unfolds:

  1. Solar Panels Capture Sunlight: They transform sunlight into electrical energy.

  2. Electricity Powers the Heat Pump: This electricity runs the compressor and fans inside the heat pump.

  3. Heat Extraction: The heat pump's evaporator pulls heat from the outside air, even when temperatures are low.

  4. Compression: The refrigerant inside the system compresses, raising its temperature.

  5. Heat Transfer: The warm refrigerant passes through a heat exchanger, releasing heat indoors.

  6. Cycle Repeats: The refrigerant cools down and returns outside to absorb more heat.

This process uses electricity efficiently, producing several units of heat for every unit of electricity consumed. When powered by solar energy, it becomes an even greener solution.

Role of Refrigerant Circuit and Heat Exchanger

The refrigerant circuit is the system's lifeblood. It circulates a special fluid—called refrigerant—that absorbs heat from the outside air. This fluid evaporates at low temperatures, capturing thermal energy. The compressor then squeezes this vapor, increasing its pressure and temperature significantly.

Next, the hot refrigerant flows through the heat exchanger. This component transfers the heat from the refrigerant to your home's heating system or hot water tank. The refrigerant cools down and condenses back into a liquid, ready to absorb more heat from outside air.

Modern systems use eco-friendly refrigerants with low global warming potential, making the process safer for the environment. Additionally, the heat exchanger is often placed outside the living area to prevent any refrigerant leaks indoors, ensuring a clean and safe home environment.

This clever cycle, powered by solar electricity, keeps your home cozy while minimizing environmental impact and energy costs.

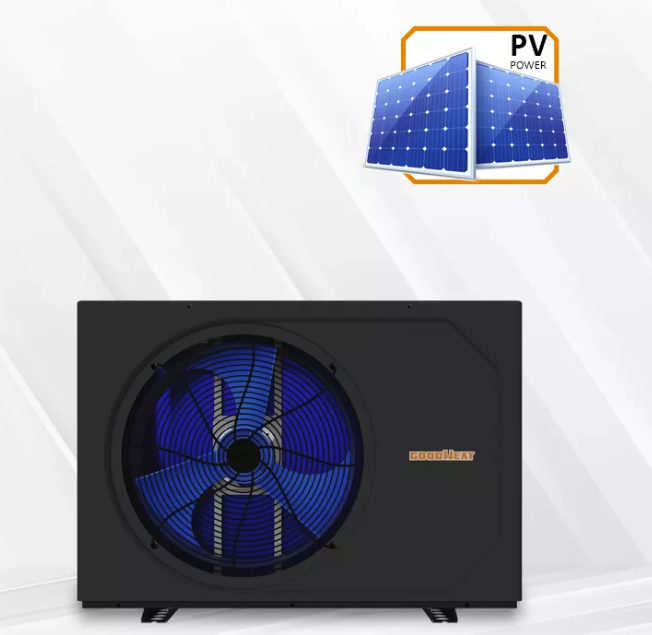

Image of a photovoltaic heat pump system, showcasing solar panels powering a heat pump for efficient heating and cooling.

Components of a Photovoltaic Heat Pump System

When diving into photovoltaic heat pumps, understanding their main parts helps you see how this smart system works so well. Each component plays a key role in turning sunlight and air into cozy warmth for your home.

Solar Panels

These are the system's energy catchers. Mounted on your roof or somewhere sunny, solar panels soak up sunlight and turn it into electricity. They use special cells made from materials like silicon, which react to sunlight and generate direct current (DC) electricity. This power feeds the heat pump, reducing your need for electricity from the grid.

Modern solar panels are designed to work even in low-light conditions, so a cloudy day won't stop them from producing energy. Their size and number depend on your home's energy needs and roof space. Plus, the more efficient the panels, the more electricity they can create from the sun's rays.

Refrigerant Circuit

This is the system's heat mover. It contains a refrigerant, a special fluid that absorbs heat from the outside air—even when it's cold. The refrigerant evaporates at low temperatures, capturing heat energy as it changes from liquid to gas.

Then, a compressor squeezes the refrigerant gas, raising its temperature and pressure. This hot gas travels through the system, ready to release its heat inside your home. The refrigerant then cools back into a liquid and starts the cycle again.

Many systems now use eco-friendly refrigerants like R290, which have very low global warming potential. This choice helps keep your heating system green and safe.

Heat Exchanger

Think of the heat exchanger as the middleman between the hot refrigerant and your home's heating system. It transfers heat from the compressed refrigerant to water or air inside your house, warming your rooms or hot water tanks.

In photovoltaic heat pumps, the heat exchanger is often placed outside the living space to avoid any risk of refrigerant leaks indoors. This setup keeps your home safe and clean while efficiently moving heat where it's needed.

Control Systems

Behind the scenes, smart control systems manage how the whole setup runs. They monitor energy use, switch between solar and grid power, and optimize performance to save you money and energy.

Some systems come with apps that let you check your heat pump's operation in real time. You can see how much solar energy you're using, adjust settings, or get alerts if something needs attention. These controls ensure your system works smoothly and adapts to changing weather or energy demands.


Benefits of Using Photovoltaic Heat Pumps

Energy Efficiency and Cost Savings

Photovoltaic heat pumps shine when it comes to energy efficiency. They use solar panels to generate electricity, powering the heat pump without relying heavily on the grid. This means your heating system consumes less traditional electricity, reducing monthly energy bills significantly. Since heat pumps transfer heat instead of creating it, they produce several units of heat for every unit of electricity used—making them much more efficient than conventional electric heaters.

On sunny days, solar panels can fully power the heat pump, sometimes even producing surplus energy that can be stored or fed back to the grid. This self-generated electricity lowers your dependence on utility companies and shields you from rising energy prices. Over time, the savings on electricity bills often offset the initial investment in the system.

Moreover, many regions offer incentives, rebates, or tax credits for installing renewable energy systems, which can further reduce upfront costs. Combining photovoltaic systems with heat pumps maximizes these financial benefits, making it a smart long-term investment for homeowners.

Environmental Impact

Using photovoltaic heat pumps greatly reduces your carbon footprint. Since solar panels produce clean, renewable energy, they cut down greenhouse gas emissions compared to fossil fuel-based heating systems. Heat pumps themselves are already more environmentally friendly because they use ambient heat from the air, water, or ground, requiring less electricity overall.

By powering heat pumps with solar energy, you eliminate much of the carbon emissions associated with electricity generation from coal, natural gas, or oil. This makes photovoltaic heat pumps an excellent choice for homeowners wanting to contribute to climate change mitigation and promote sustainable living.

Some systems use eco-friendly refrigerants with low global warming potential, ensuring the entire heating process is greener. Plus, because these systems operate quietly and efficiently, they reduce noise pollution and energy waste, adding to their environmental benefits.

Low Noise and Eco-Friendly Design

Photovoltaic heat pumps often operate more quietly than traditional heating systems. The technology behind heat pumps involves compressors and fans designed for low noise, making them suitable for residential neighborhoods. This quiet operation enhances comfort without disturbing your household or neighbors.

Their eco-friendly design extends beyond emissions. Many heat pumps use natural refrigerants like R290, which have minimal impact on the atmosphere. The heat exchanger is typically installed outside the living space, preventing refrigerant leaks indoors and ensuring safety.

Additionally, the modular nature of these systems allows for sleek installations that blend well with your home's aesthetics. Solar panels can be mounted discreetly on roofs, and heat pump units are compact enough to fit in small outdoor spaces.

Together, these features make photovoltaic heat pumps a sustainable, comfortable, and practical heating solution for modern homes.


Challenges and Considerations

Weather Dependency

One key challenge of photovoltaic heat pumps is their reliance on weather conditions. Since solar panels generate electricity from sunlight, their output drops on cloudy or rainy days. This means less power for the heat pump, potentially reducing heating efficiency. At night, solar power isn't available at all, so the system must switch to grid electricity or stored energy to keep your home warm.

To handle this, many systems include batteries that store excess solar energy produced during sunny hours. These batteries provide backup power when sunlight is insufficient. Alternatively, a connection to the electrical grid ensures continuous operation. However, these solutions can add complexity and cost to the system.

Moreover, very cold or extreme weather can affect heat pump performance. While modern heat pumps work well in cold climates, their efficiency may decrease as outdoor temperatures drop. Combining solar power with a heat pump still reduces overall energy use, but it's important to recognize that weather can impact system output and heating capacity.

Space Requirements

Photovoltaic heat pumps need enough space for solar panels and the heat pump unit itself. Solar panels require a sunny, unobstructed area—usually a roof with good sun exposure. The size of the panel array depends on your home's heating needs and available roof space. For larger homes or colder climates, more panels are necessary, which means more space.

The heat pump unit often sits outside the home, requiring room for installation and airflow. Some models are compact, but you still need to plan for installation space that complies with local codes and manufacturer guidelines. In tight urban settings or homes with limited roof area, finding enough space for an efficient system can be challenging.

Additionally, if you choose to add battery storage for solar energy, that requires extra space indoors or in a dedicated outdoor enclosure. Proper planning ensures all components fit comfortably without compromising aesthetics or functionality.

Initial Investment Costs

Installing a photovoltaic heat pump system involves a significant upfront investment. Costs include purchasing solar panels, the heat pump unit, inverters, control systems, and possibly batteries or storage tanks. Installation labor and any necessary home upgrades add to the total price.

Typical system costs vary widely based on size, technology, and location but expect tens of thousands of dollars for a full setup. While this may seem high, many homeowners find the investment worthwhile due to long-term energy savings and government incentives.

Subsidies, rebates, and tax credits often help reduce initial costs. For example, some regions offer financial support for renewable energy installations, making solar heat pumps more affordable. It's essential to research local programs and factor these into your budget.

Payback periods usually range from 10 to 15 years, depending on energy prices, system size, and usage patterns. Though the initial cost is a hurdle, the combination of lower energy bills and environmental benefits makes photovoltaic heat pumps an attractive option for many homeowners.


Installation and Maintenance Tips

Site Assessment and Feasibility

Before installing a photovoltaic heat pump, a thorough site assessment is crucial. This step ensures the system will perform efficiently and meet your home's heating needs. Professionals will evaluate your roof's orientation, angle, and shading to determine the best placement for solar panels. Ideally, panels face south (in the northern hemisphere) or north (in the southern hemisphere) to capture maximum sunlight throughout the day.

They also assess available space for the heat pump unit, ensuring proper airflow and compliance with local regulations. The climate and typical weather patterns in your area influence system sizing and expected energy production. For example, homes in regions with frequent cloud cover may require larger solar arrays or supplemental grid connection.

A feasibility study includes calculating your home's heating demand, roof load capacity, and electrical infrastructure compatibility. This helps avoid surprises during installation and ensures the system's components match your energy needs. It also identifies potential obstacles like roof shading from trees or nearby buildings, which could reduce solar panel output.

Necessary Equipment and Components

Installing a photovoltaic heat pump system involves several key components working together:

  • Solar Panels: Capture sunlight and convert it into electricity. Their number depends on your home's energy needs and roof space.

  • Heat Pump Unit: Extracts heat from outside air and transfers it indoors. It contains the refrigerant circuit and compressor.

  • Inverter: Converts the solar panels' direct current (DC) into alternating current (AC) that powers the heat pump.

  • Heat Exchanger: Transfers heat from the refrigerant to your home's heating system or hot water tank.

  • Control System: Manages energy flow, switching between solar and grid power as needed, and optimizes performance.

  • Optional Batteries: Store excess solar energy for use during cloudy days or nighttime, increasing system independence.

  • Buffer Storage Tank: Stores heated water, allowing the system to operate efficiently by balancing supply and demand.

Proper sizing and compatibility of these components are vital. For example, choosing an inverter that matches the solar panel capacity avoids power losses. Similarly, the heat pump's capacity should align with your home's heating requirements to prevent under- or over-sizing.

Regular Maintenance and Troubleshooting

Maintaining a photovoltaic heat pump system keeps it running efficiently and extends its lifespan. Here are key maintenance tips:

  • Solar Panel Cleaning: Dirt, leaves, or snow can block sunlight, reducing electricity production. Clean panels gently with water and a soft brush as needed, especially after storms or in dusty areas.

  • Inspect for Shading: Trim nearby trees or vegetation that may start shading panels over time.

  • Check Refrigerant Levels: Low refrigerant can decrease heat pump efficiency. A professional should inspect and recharge refrigerant if necessary.

  • Clean Filters and Coils: Dust and debris on heat pump filters or coils reduce airflow and performance. Regular cleaning or replacement ensures optimal operation.

  • Monitor System Performance: Use the control system or app to track energy production and consumption. Sudden drops in output may indicate issues needing professional attention.

  • Listen for Unusual Noises: Strange sounds from the heat pump could signal mechanical problems, requiring inspection.

  • Inspect Electrical Connections: Loose or corroded wiring can cause faults or inefficiencies.

  • Professional Inspections: Schedule annual check-ups with certified technicians to perform comprehensive system diagnostics and preventive maintenance.

Troubleshooting common issues often starts with simple checks. For instance, if the system isn't heating properly, verify the thermostat settings and ensure the outdoor unit is not obstructed. If solar panels produce less power, check for dirt or shading.

By staying proactive with maintenance, you avoid costly repairs and keep your photovoltaic heat pump delivering clean, efficient heat year-round.


Conclusion

Photovoltaic heat pumps efficiently combine solar panels and heat pumps to reduce energy costs and environmental impact. They offer significant advantages, such as energy efficiency, cost savings, and eco-friendly operation, making them a smart investment for homeowners. As technology advances, the future of photovoltaic heat pumps looks promising, with potential improvements in performance and affordability. Overall, these systems represent a sustainable heating solution that balances economic and ecological benefits, contributing to a cleaner, greener future.


FAQ

Q: How do photovoltaic heat pumps work?

A: They use solar panels to generate electricity, powering a heat pump that extracts and transfers heat indoors.

Q: What are the main components of a photovoltaic heat pump system?

A: Key components include solar panels, a heat pump unit, inverter, heat exchanger, control system, and optional batteries.

Q: What are the benefits of using photovoltaic heat pumps?

A: Benefits include energy efficiency, cost savings, reduced carbon footprint, and quiet operation.

Q: What challenges do photovoltaic heat pumps face?

A: Challenges include weather dependency, space requirements, and initial investment costs.
