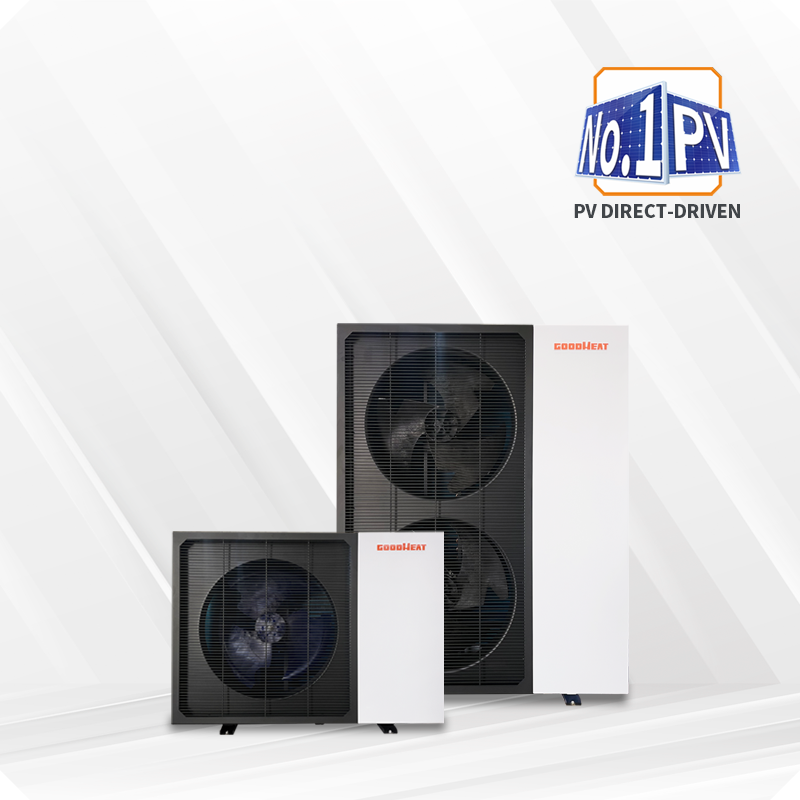

| Model | 6kW | 8kW | 10kW | 10kW | 12kW | 12kW | 14kW | 14kW | 16kW | 16kW | 18kW | 18kW | 24kW | 30kW | 34kW |
| GSHVSH-6BA1 | GSHVSH-8BA1 | GSHVSH-10BA1 | GSHVTH-10BA1 | GSHVSH-12BA1 | GSHVTH-12BA1 | GSHVAH-14BA1 | GSHVTH-14BA1 | GSHVSH-16BA1 | GSHVTH-16BA1 | GSHVSH-18BA1 | GSHVTH-18BA1 | GSHVTH-24BA1 | GSHVTH-30BA1 | GSHVTH-34BA1 |
| Power Supply | 220~240V/1ph/50Hz | 220~240V/1ph/50Hz | 220~240V/1ph/50Hz | 380~415V/3ph/50Hz | 220~240V/1ph/50Hz | 380~415V/3ph/50Hz | 220~240V/1ph/50Hz | 380~415V/3ph/50Hz | 220~240V/1ph/50Hz | 380~415V/3ph/50Hz | 220~240V/1ph/50Hz | 380~415V/3ph/50Hz | 380~415V/3ph/50Hz | 380~415V/3ph/50Hz | 380~415V/3ph/50Hz |
| PV Max. Input Current(A) | 18 | 18 | 18 | 18 | 30 | 18 | 30 | 18 | 30 | 18 | 30 | 18 | 30 | 30 | 30 |
| Optimal PV Input Voltage Range(V) | 180~350 | 180~350 | 180~350 | 360~500 | 180~350 | 360~500 | 180~350 | 360~500 | 180~350 | 360~500 | 180~350 | 360~500 | 360~500 | 360~500 | 360~500 |
Recommended PV Module Qty. (630W/50.2V)(pcs)
| 5 | 5 | 6 | 8 | 2 strings * 4 modules | 8 | 2 strings *5 modules | 10 | 2 strings * 6 modules | 11 | 2 strings * 6 modules | 11 | 2 strings * 9 dokules | 2 strings * 10 modules | 2 strings * 11 modules |
| Nominal Heating(Max.)(A7/6℃, W30/35℃) |
| Heating Capacity(kW) | 6.50(2.80~8.80) | 8.20(5.10~10.85)
| 10.05(5.10~12.90) | 10.05(5.10~12.90) | 12.00(5.90~15.12) | 12.00(5.90~15.12) | 14.05(6.10~16.99) | 14.05(6.10~16.99) | 15.80(6.37~19.11) | 15.80(6.37~19.11)
| 18.21(6.90~21.00) | 18.21(6.90~21.00) | 24.05(7.90~26.20) | 30.05(9.17~32.71) | 34.15(9.17~36.80) |
| Power Input(kW) | 1.29(0.59~1.95)
| 1.74(0.86~2.42) | 2.16(0.86~2.88) | 2.16(0.86~2.88) | 2.45(1.15~3.61) | 2.45(1.15~3.61) | 2.99(1.15~4.15) | 2.99(1.15~4.15) | 3.43(1.31~4.93)
| 3.43(1.31~4.93) | 3.65(1.36~5.28) | 3.65(1.36~5.28) | 5.29(1.78~6.45) | 6.60(2.51~8.07) | 7.59(2.51(9.09) |
| COP | 4.70(4.25~5.05) | 4.70(4.23~5.08) | 4.65(4.23~5.05) | 4.65(4.23~5.05) | 4.90(4.15~5.06) | 4.90(4.15~5.06) | 4.70(4.15~5.05) | 4.70(4.15~5.05) | 4.64(4.10~5.02) | 4.64(4.10~5.02) | 4.99(4.05~5.05) | 4.99(4.05~5.05) | 4.55(4.03~5.02) | 4.55(4.05~5.03) | 4.50(4.05~5.03) |
| Nominal Heating(Max.)(A7/6℃, W47/55℃) |
| Heating Capacity | 5.88(2.30~7.62) | 8.05(3.85~9.41) | 9.50(3.85~11.20) | 9.50(3.85~11.20) | 12.00(4.90~13.15) | 12.00(4.90~13.15) | 13.98(4.90~15.10) | 13.98(4.90~15.10) | 15.70(4.90~17.60) | 15.70(4.90~17.60 | 18.10(6.30~19.90) | 18.10(6.30~19.90) | 22.99(6.90~26.10) | 29.86(9.73~31.82) | 33.50(9.73~36.80) |
| Power Input | 1.78(0.75~2.61) | 2.44(1.13~3.15) | 2.92(1.13~3.75） | 2.92(1.13~3.75） | 3.96(1.65~4.56) | 3.96(1.65~4.56) | 4.30(1.65~5.25) | 4.30(1.65~5.25) | 4.83(1.65~5.33) | 4.83(1.65~5.33) | 5.82(1.65~6.82) | 5.82(1.65~6.82) | 8.04(1.95~8.55) | 10.12(2.75~10.36) | 11.55(2.75~12.06) |
| COP | 3.30(2.92~3.33) | 3.30(2.99~3.46) | 3.25（2.99~3.46) | 3.25（2.99~3.46) | 3.03(2.87~3.38) | 3.03(2.87~3.38) | 3.25(2.87~3.38) | 3.25(2.87~3.38) | 3.25(2.87(3.38) | 3.25(2.87~3.38) | 3.11(2.91~3.34) | 3.11(2.91~3.34) | 2.86(3.05~3.42) | 2.95(3.05~3.42) | 2.90(3.05~3.42) |
| Nominal Cooling(Max.)(A35/24℃, W12/7℃) |
| Cooling Capacity(kW) | 5.00(1.80~7.10) | 7.00(2.60~8.50) | 8.50(2.60~10.30) | 8.50(2.60~10.30) | 10.00(4.50~11.85) | 10.00(4.50~11.85) | 11.50(4.50~13.50) | 11.50(4.50~13.50) | 13.00(5.05~15.00) | 13.00(5.05~15.00) | 15.00(5.50~17.50) | 15.00(5.50~17.50) | 19.50(5.20~21.30) | 23.50(7.33~26.70) | 28.50(7.33~30.03) |
| Power Input(kW) | 2.00(0.61~2.43) | 2.69(0.91~2.93) | 3.40(0.91~3.65) | 3.40(0.91~3.65) | 4.00(1.45~4.30) | 4.00(1.45~4.30) | 4.42(1.45~13.50) | 4.42(1.45~4.85) | 5.20(1.65~5.33) | 5.20(1.65~5.33) | 6.00(1.65~6.25) | 6.00(1.65~6.25) | 7.80(1.95~8.20) | 9.40(2.75~10.27) | 11.40(2.75~11.56) |
| EER | 2.50(2.45~3.05) | 2.60(2.45~3.05) | 2.50(2.35~3.00) | 2.50(2.35~3.00) | 2.50(2.40~2.96) | 2.50(2.40~2.96) | 2.60(2.42~2.89) | 2.60(2.42~2.89) | 2.50(2.42~2.85) | 2.50(2.42~2.85) | 2.50(2.38~2.96) | 2.50(2.38~2.96) | 2.50(2.34~2.95) | 2.50(2.36~2.98) | 2.50(2.35~2.92) |
| General Data |
| ErP Level(Outlet Water Temp. at 35℃/55℃) | A+++/A++ |
| Rated Input Power(kW) | 2.78 | 3.49 | 3.79 | 3.89 | 5.05 | 5.05 | 6.11 | 6.11 | 7.12 | 7.12 | 7.80 | 7.56 | 11.50 | 11.65 | 13.10 |
| Rated Input Current(A) | 12 | 15 | 17 | 6.5 | 22.2 | 8.5 | 27.50 | 10.50 | 33.00 | 12.50 | 35.00 | 13.00 | 18.50 | 19.76 | 22.00 |
| Refrigerant | R32 |
| Rated Water Flow(m³/h) | 1.1 | 1.38 | 1.72 | 1.72 | 2.06 | 2.06 | 2.41 | 2.41 | 2.75 | 2.75 | 3.10 | 3.10 | 4.12 | 5.85 | 5.85 |
| Pressure Drop at Rating Water Flow(kPa) | 29 | 32
| 35 | 39
|
| Fan Quantity | 1 | 2
|
| Fan Motor Type | DC Inverter |
| Compressor | DC Inverer/Rotary/EVI |
| Circulating Pump | Inverter Type/Built-in |
| IP Class | IPX4 |
| Max. Outlet Water Temp.(℃) | 60 |
| Operating Temp. Range(Heating Mode)(℃) | -38~43 |
| Operating Temp. Range(Cooling Mode)(℃) | 16~48 |
| Sound Pressure at 1m Distance(dB(A)) | 49 | 43(39~52) | 45(39~52) | 45(39~52) | 54(39~53) | 45(39~53) | 46(39~53) | 46(39~53) | 48(39~54) | 48(39~54) | 48(39~54) | 48(39~54) | 52(40~58) | 52(42~62) | 52(42~62) |
| Water Piping Connections(inch) | G1 | G5/4
| G3/2
|
| Net Weight(kg) | 113 | 120 | 120 | 121 | 128 | 126 | 132 | 131 | 132 | 131 | 175 | 174 | 181 | 212 | 212 |
| Gross Weight(kg) | 125 | 132 | 132 | 133 | 140 | 138 | 144 | 143 | 144 | 143 | 189 | 188 | 195 | 228 | 228 |
| Net Dimensions(L*D*H)(mm) | 1170*462*855 | 1130*452*1443
| 1220*452*1657
|
| Packed Dimensions(L*D*H)(mm) | 1230*540*1010 | 1190*540*1600
| 1280*540*1815
|
