Model
| 10kW | 12kW | 14kW | 17kW | 20kW | 22kW | 27kW | 27kW | 32kW | 32kW | 40kW |
| GSPVSH-10AA1 | GSPVSH-12AA1 | GSPVSH-14AA1 | GSPVSH-17AA1 | GSPVSH-20AA1 | GSPVSH-22AA1 | GSPVSH-27AA1 | GSPVTH-27AA1 | GSPVSH-32AA1 | GSPVTH-32AA1 | GSPVTH-40AA1 |
| Power Supply | 220~240V/1ph/50Hz
| 380~415V/3ph/50Hz | 220~240V/1ph/50Hz | 380~415V/3ph/50Hz
|
| Advised Pool Volume(m³) | 18~35 | 25~40 | 30~50 | 35~60 | 40~65 | 45~75 | 55~90 | 55~90 | 65~105 | 65~105 | 75~120 |

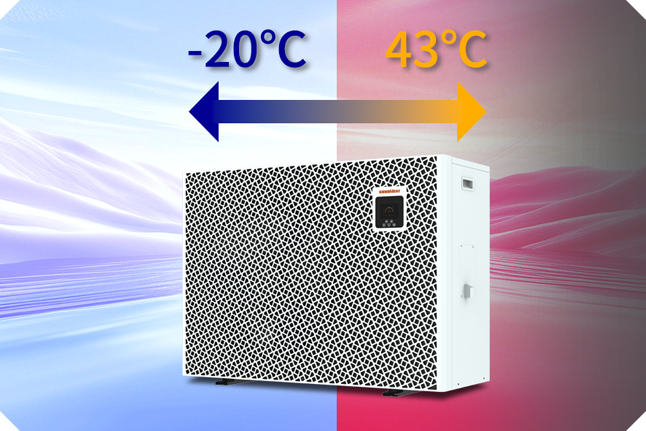

| Operating Air Temp.(℃) | -20~43
|
Performance Condition: Air 26℃, Water 26℃, Humidity 80%
|
| Heating Capacity(kW) in Turbo Mode | 9.5 | 12 | 14 | 16.5 | 20 | 22.5 | 26.5 | 26.5 | 32 | 32 | 40 |

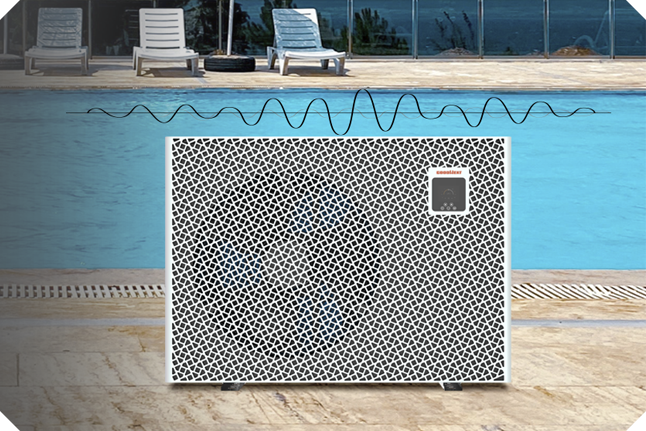

| Heating Capacity(kW) in Silent Mode | 8 | 9 | 12 | 13.7 | 15.5 | 17.6 | 22.1 | 22.1 | 27.5 | 27.5 | 35 |
| Power Input(kW) | 0.11~1.25 | 0.13~1.54 | 0.16~1.84 | 0.19~2.23 | 0.22~2.7 | 0.25~3.04 | 0.31~3.58 | 0.31~3.58 | 0.37~4.44 | 0.37~4.44 | 0.47~5.56 |

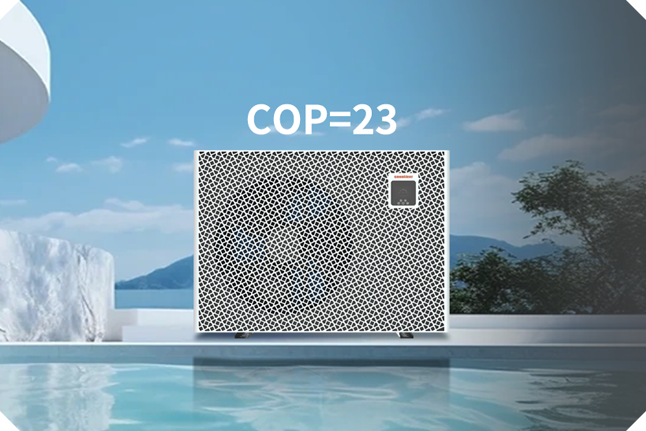

| Coefficient of Performance | 21.6~7.6 | 23.3~7.8 | 22.1~7.6 | 22.1~7.4 | 23.1~7.4 | 22.6~7.4 | 21.2~7.4 | 21.2~7.4 | 21.6~7.2 | 21.6~7.2 | 21.2~7.2 |
| Coefficient of Performance at 50% Capacity | 14.5 | 14.9 | 15 | 14.9 | 14.7 | 15.1 | 15.5 | 15.5 | 14.9 | 14.9 | 14.9 |
Performanc Condition: Air 15℃, Water 26℃， Humidity 70%
|
| Heating Capacity(kW) in Turbo Mode | 6.5 | 8.6 | 9 | 11 | 13.5 | 15.5 | 18 | 18 | 22.5 | 22.5 | 28.5 |
| Heating Capacity(kW) in Smart Mode | 5.2 | 6.8 | 7.2 | 8.8 | 10.8 | 12.4 | 14.5 | 14.5 | 18 | 18 | 23.5 |
| Power Input(kW) | 0.2~1.2 | 0.24~1.51 | 0.27~1.7 | 0.31~2.12 | 0.4~2.65 | 0.48~2.92 | 0.54~3.46 | 0.54~3.46 | 0.69~4.33 | 0.69~4.33 | 0.88~5.7 |
| Coefficient of Performance | 8.0~5.4 | 8.9~5.7 | 8.2~5.3 | 8.8~5.2 | 8.5~5.1 | 8.1~5.3 | 8.3~5.2 | 8.3~5.2 | 8.1~5.2 | 8.1~5.2 | 8.1~5.0 |
| Coefficient of Performance at 50% Capacity | 7.3 | 7.5 | 7.4 | 7.5 | 7.8 | 7.4 | 7.4 | 7.4 | 7.4 | 7.4 | 7.4 |
| Performance Condition: Air 7℃, Water 26℃, Humidity 90% |
| Heating Capacity(kW) in Turbo Mode | 5 | 6.8 | 7.2 | 9.2 | 11.5 | 12.5 | 15.5 | 15.5 | 18 | 18 | 22.5 |
| Power Input(kW) | 1.11 | 1.38 | 1.57 | 2 | 2.61 | 2.78 | 3.3 | 3.3 | 3.83 | 3.83 | 5 |
| Coefficient of Performance | 6.9~4.5 | 7~4.9 | 7.1~4.6 | 7.2~4.6 | 7~4.4 | 7.3~4.5 | 7~4.7 | 7.2~4.5 | 7.3~4.7 | 7~4.5 | 7~4.5 |
| Performance Condition: Air 35℃, Water 28℃, Humidity 80% |
| Cooling Capacity(kW)(optional) | 4.5 | 5.5 | 6.5 | 8.5 | 10 | 11.5 | 13 | 13 | 15 | 15 | 18.9 |
| Sound Pressure at 1m (dB(A)) | 36.6~43.4 | 37.7~44.8 | 37.8~45.9 | 41~46.7 | 41.5~47.3 | 41.9~49.5 | 39.7~49.8 | 39.7~49.8 | 42.1~50.3 | 42.1~50.3 | 41.5~50.5 |
Sound Pressure of 50% capacity at 1m (dB(A))
| 37.6 | 38.8 | 40.3 | 42.7 | 42.5 | 43.3 | 43.1 | 43.1 | 45.2 | 45.2 | 42.5 |
| Sound Pressure at 10m (dB(A)) | 16.6~23.4 | 17.7~24.8 | 17.8~25.9 | 21~26.7 | 21.5~27.3 | 21.9~29.5 | 19.7~29.8 | 22.1~30.3 | 22.1~30.3 | 22.1~30.3 | 21.5~30.5 |

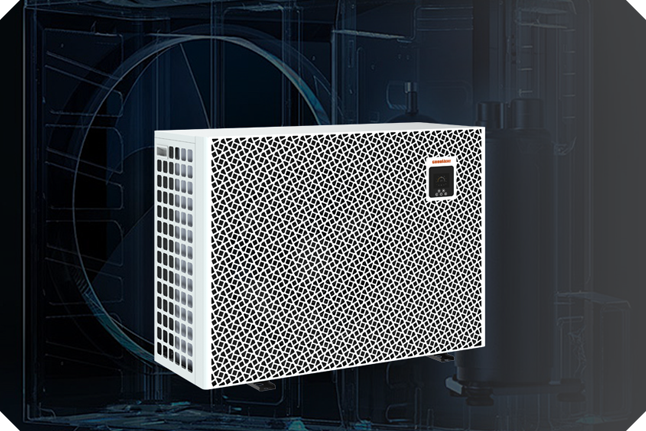

| Compressor | Twin-Rootary DC Inverter |
| Heat Exchanger | Titanium Heat Exchanger |
| Casing | Metal Casing
|
| Rated Input Power at Air 15℃(kW) | 0.14~1.25 | 0.15~1.38 | 0.19~1.7 | 0.2~2.08 | 0.25~2.45 | 0.27~2.74 | 0.32~3.31 | 0.32~3.31 | 0.46~4.1 | 0.46~4.1 | 0.6~5.7 |
| Rated Input Current at Air 15℃(A) | 0.62~5.43 | 0.65~6 | 0.83~7.39 | 0.87~9.04 | 1.09~10.65 | 1.17~11.9 | 1.39~14.4 | 0.46~4.78 | 2.01~17.8 | 0.66~5.91 | 0.87~8.22 |
| Advised Water Flux(m³/h) | 2~4 | 2~4 | 3~4 | 4~6 | 4~6 | 6.5~8.5 | 8~10 | 8~10 | 10~12 | 10~12 | 12~18 |
| Net Dimension(L*W*H)(mm) | 910*432*670
| 1045*432*670
| 1195*432*770 | 1072*536*966 | 1264*536*957 | 1364*536*957 |
| Note: The data above is for reference only. Please refer to the nameplate for the unit if for more specific data. |
