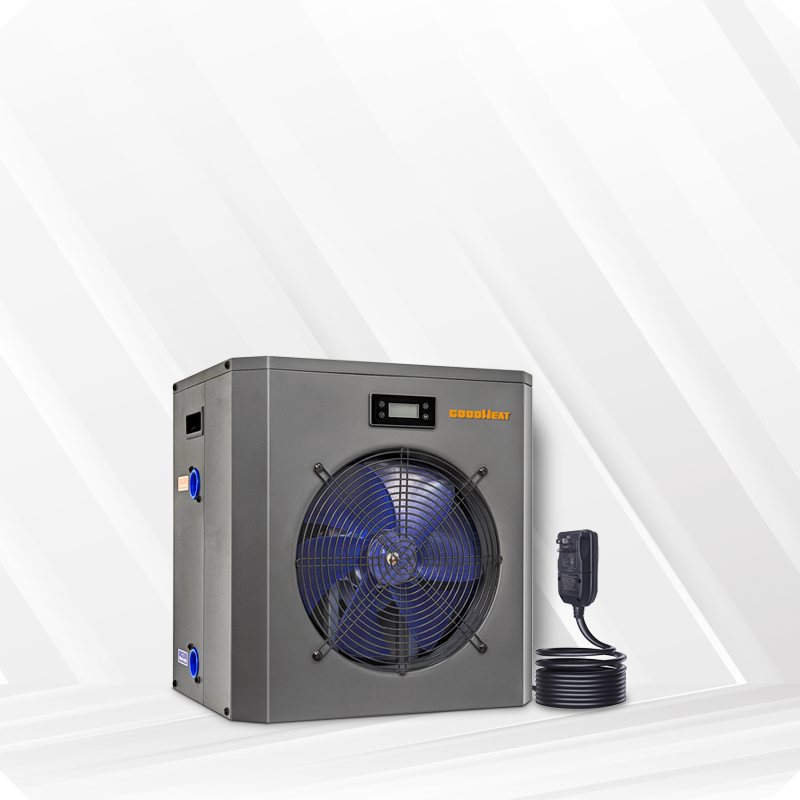

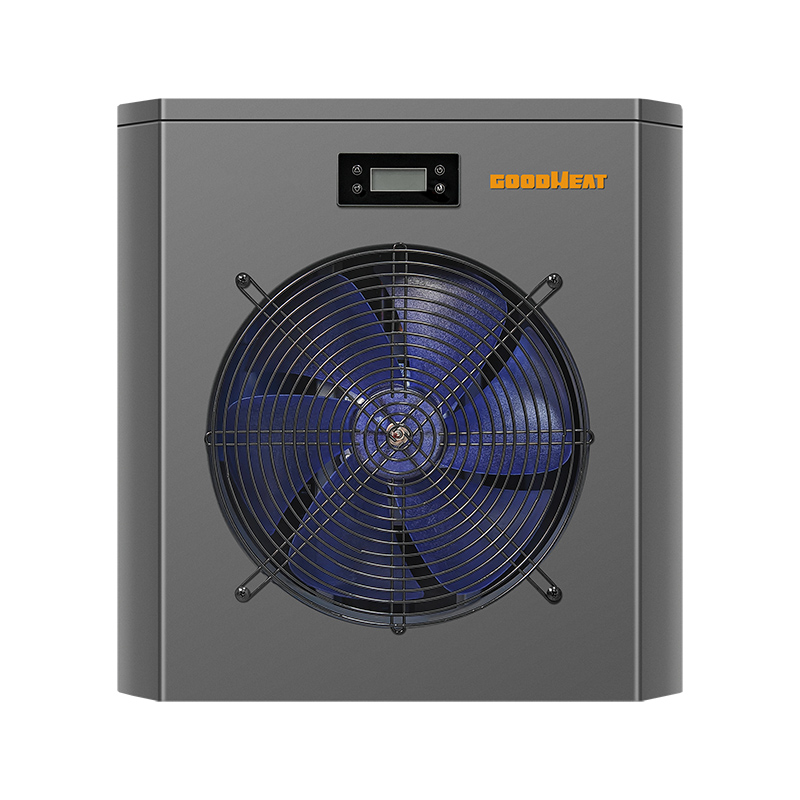

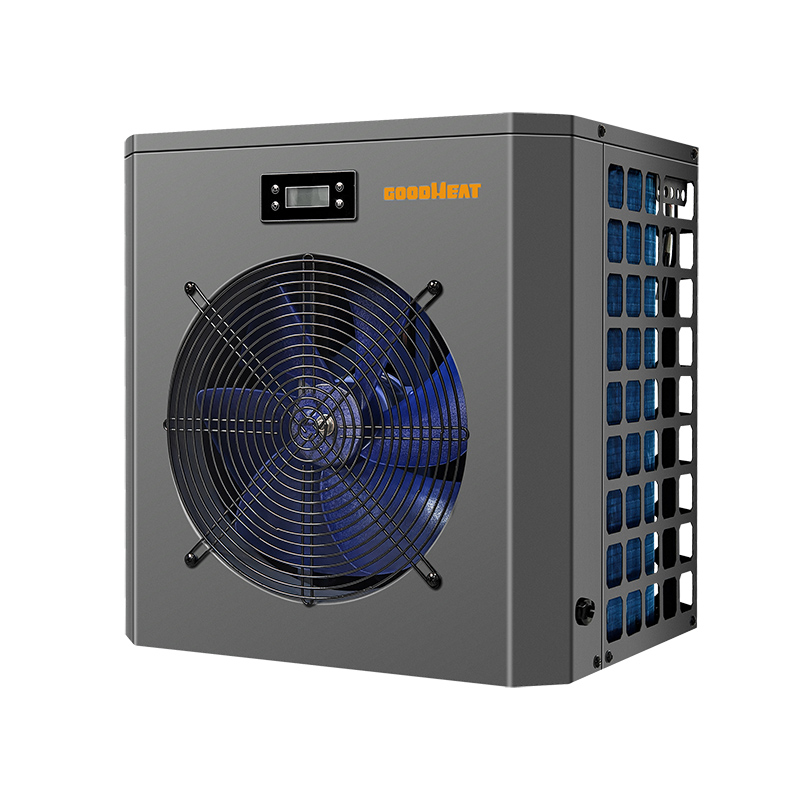

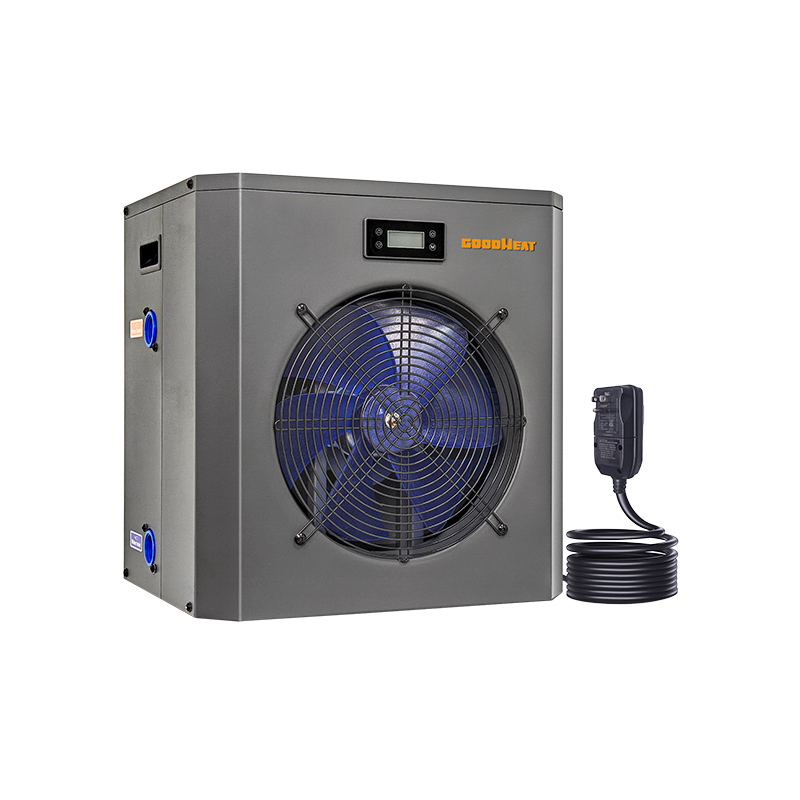

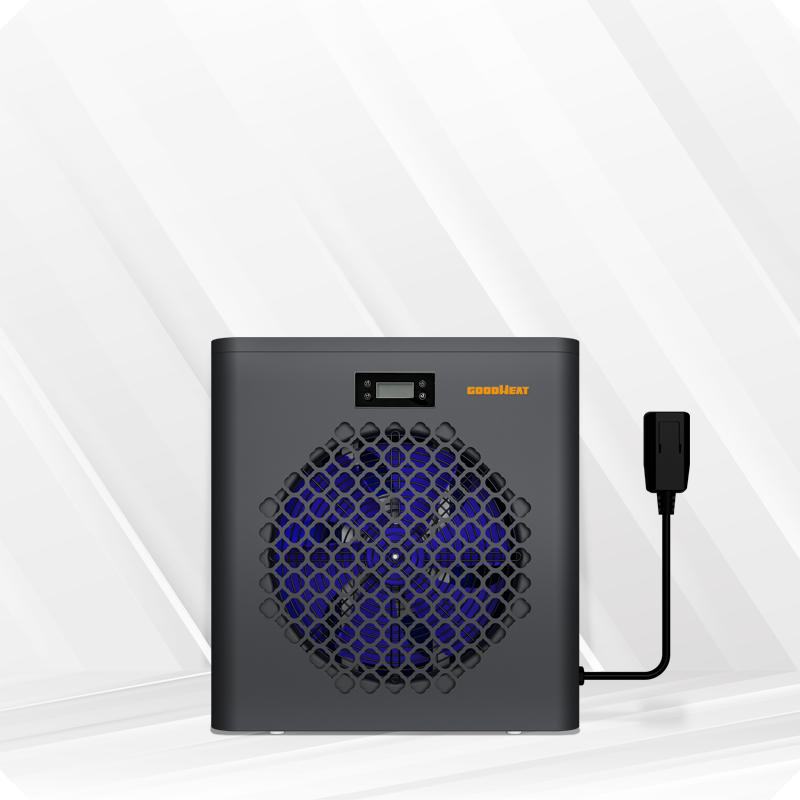

R32 Mini Swimming Pool Heat Pump

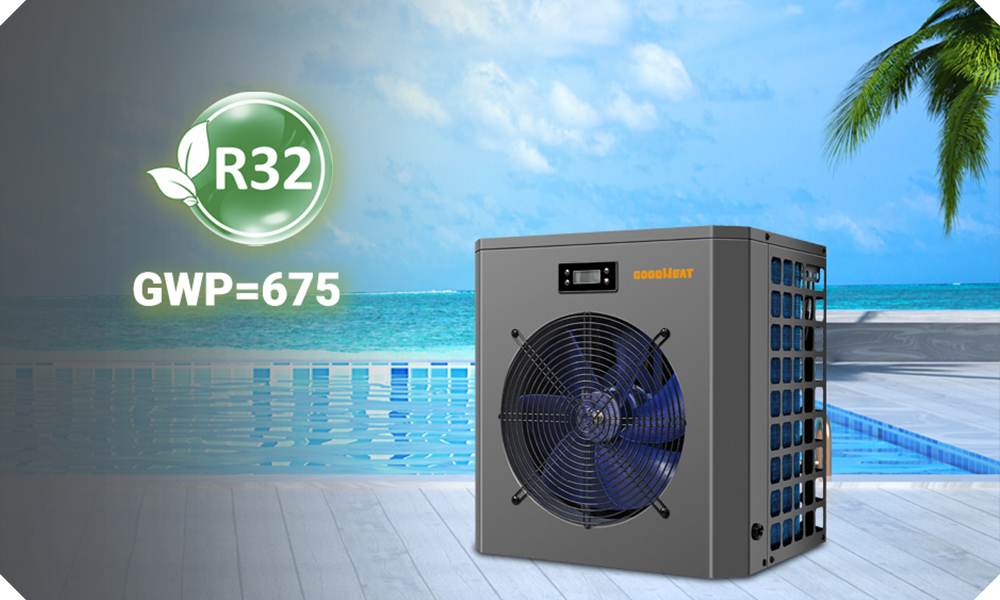

  • R32 refrigerant with fixed-speed ON/OFF operation.
  • Heating and cooling with automatic operating mode.
  • Compact 420 × 360 × 453 mm cabinet across the range.
  • LCD controller and Wi-Fi / Smart Life app support.
  • Titanium water-side heat exchanger and DN32 water connections.
  • Plug & Play design with 220–240 V, 1~, 50 Hz supply.
Availability:
Inquire

Description
Specification
FAQ

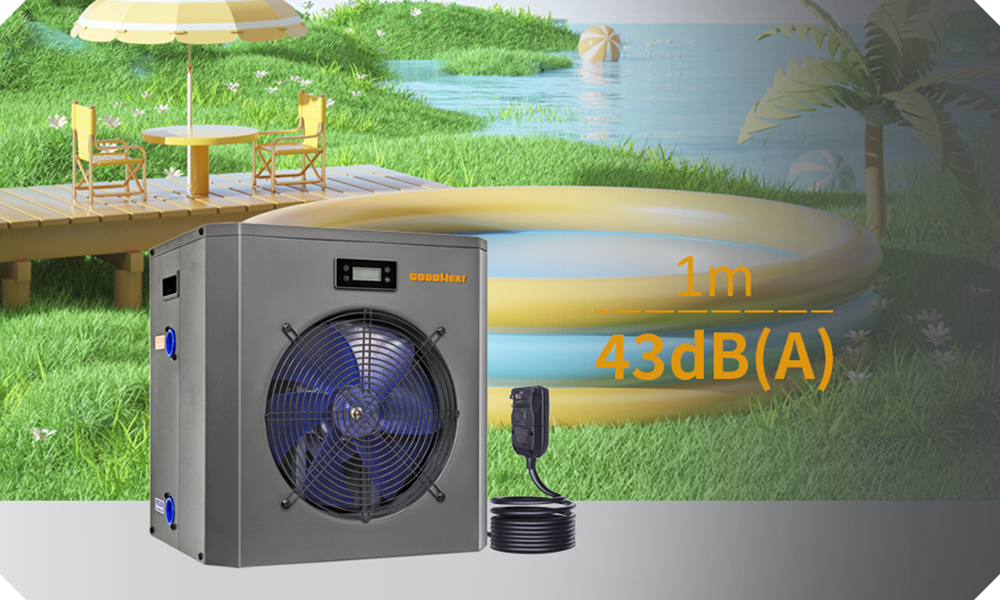

Compact R32 mini heat pump beside a small above-ground swimming pool

A small footprint.

A clear pool match.

The cabinet fits a small-pool equipment layout. The supplied sheet recommends 2–9 m³ for the three models respectively.

Allow clear airflow and service space.

Pool heating with defined performance.

The fixed-speed ON/OFF range delivers 3-5kW heating output at air 26 °C / inlet–outlet water 26–28 °C / 80% RH.

Compare the lower-ambient performance as well.

 This is a fixed-speed range, not an inverter product.

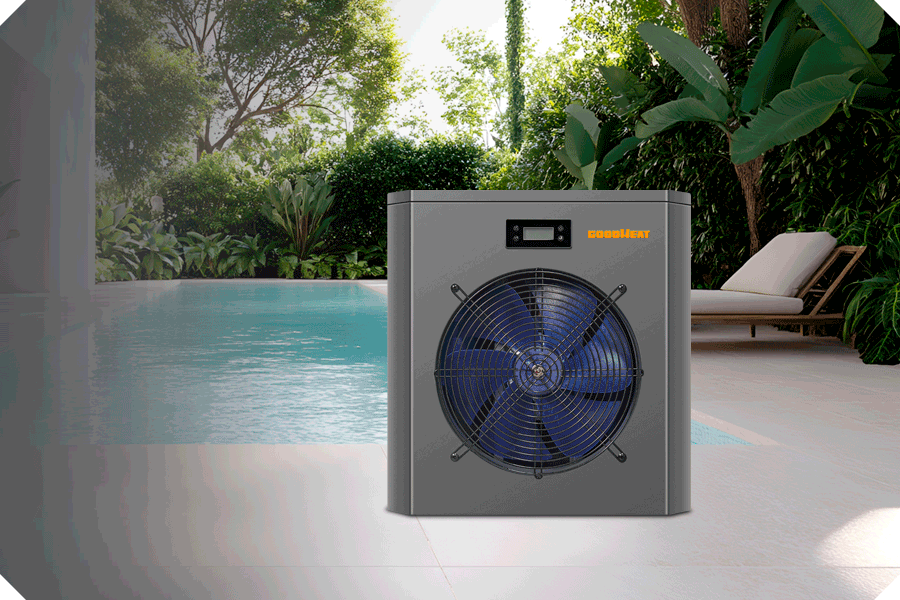

R32 mini swimming pool heat pump in a sunny backyard pool garden
R32 mini pool heat pump in cool morning and warm summer pool settings

More ways to manage water temperature.

Heating, cooling and automatic modes support changing small-pool needs. The sheet lists a heating setting range of 15–40 °C and cooling setting range of 2–28 °C.

Declared ambient operating range: −7 to 43 °C.

 Cooling performance is listed at 12 / 7 °C inlet/outlet water.

 Output varies with operating conditions.

Local control.

App convenience.

Use the integrated LCD controller or the Smart Life Wi-Fi functions described in the manual to change the target temperature, operating mode and scheduled on/off times.

Wi-Fi support is listed in the parameter sheet.

 Heating / Cooling / Auto modes.

 Follow pairing instructions for the supplied controller.

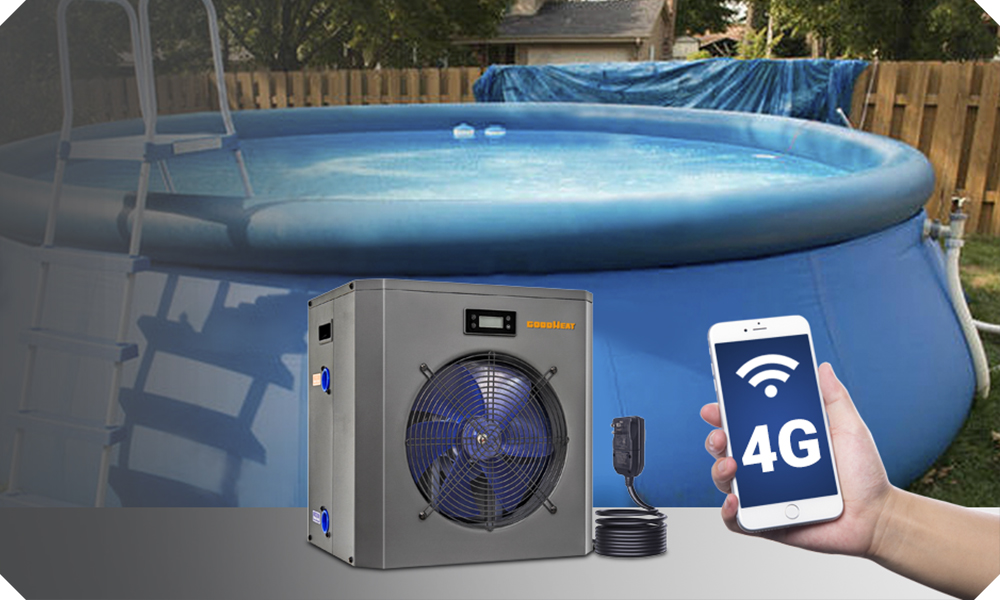

Smartphone held near an R32 mini swimming pool heat pump
05-water

Connect to your small-pool system.

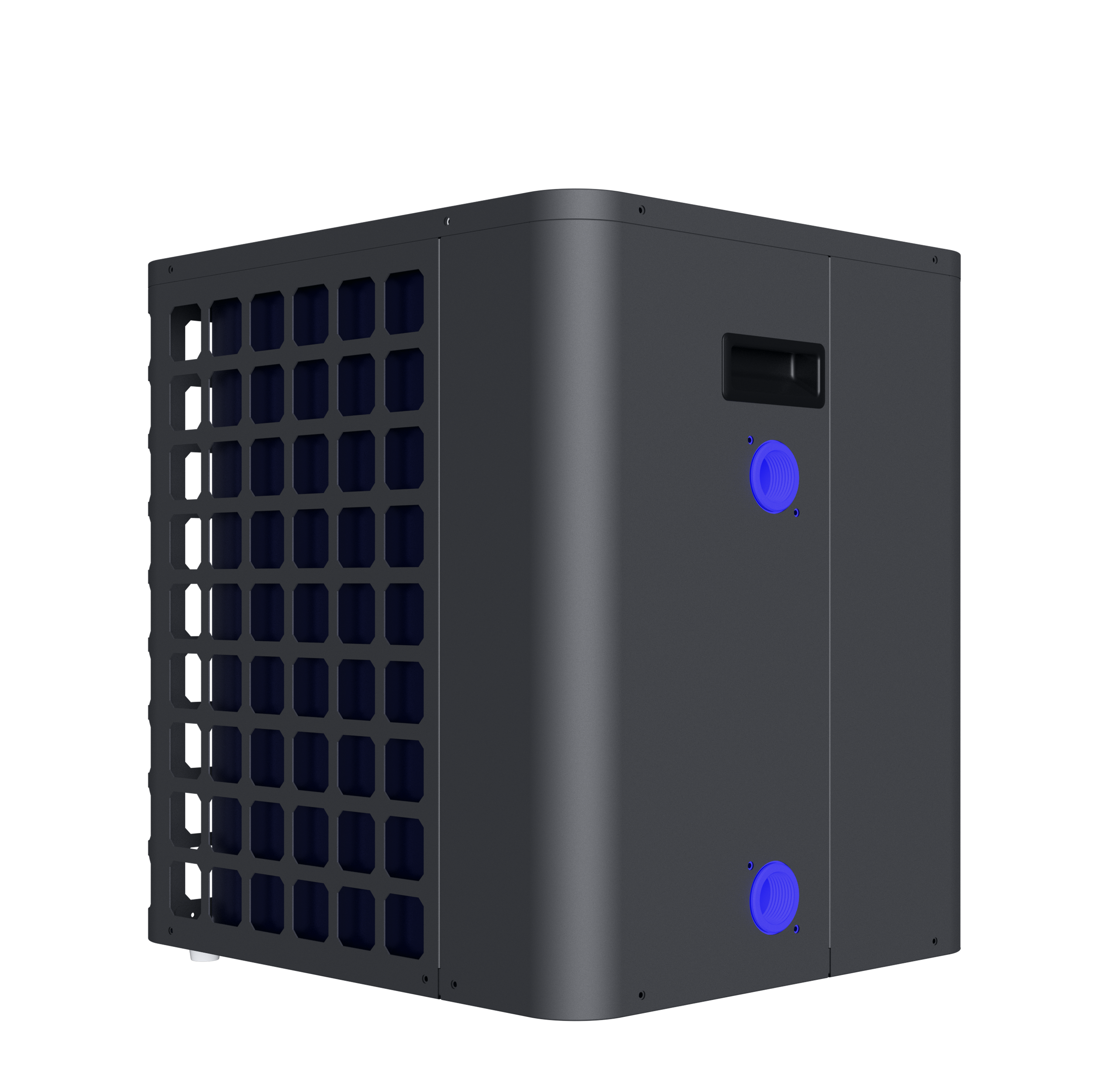

The supplied data identifies a titanium water-side heat exchanger, DN32 water connections and a Plug & Play design. Check water flow, fitting compatibility and the delivered electrical connection before setup.

Metal cabinet.

 Confirm any 38 mm adapter and power-plug requirements.

Small-pool comfort.

Compact by design.

Compact R32 mini pool heat pump installed beside a small above-ground swimming pool

A small footprint.

A clear pool match.

The 420 × 360 × 453 mm cabinet fits a small-pool equipment layout. The supplied sheet recommends 2–4, 3–6 and 4–9 m³ for the three models respectively.

GSPSHM-3BA1 / GSPSHM-4BA1 / GSPSHM-5BA1.

Net weights: 23 / 25 / 28 kg.

Allow clear airflow and service space.

Pool heating with defined performance.

The fixed-speed ON/OFF range delivers 3.3, 3.7 and 5.0 kW heating output at air 26 °C / inlet–outlet water 26–28 °C / 80% RH.

Declared COP at this condition: 5.2 / 4.45 / 4.9.

Compare the lower-ambient performance as well.

This is a fixed-speed range, not an inverter product.

R32 mini swimming pool heat pump beside a sunny backyard pool
R32 mini pool heat pump shown beside a small pool in cool and warm weather

More ways to manage water temperature.

Heating, cooling and automatic modes support changing small-pool needs. The sheet lists a heating setting range of 15–40 °C and cooling setting range of 2–28 °C.

Declared ambient operating range: −7 to 43 °C.

Cooling performance is listed at 12 / 7 °C inlet/outlet water.

Output varies with operating conditions.

Local control.

App convenience.

Use the integrated LCD controller or the Smart Life Wi-Fi functions described in the manual to change the target temperature, operating mode and scheduled on/off times.

Wi-Fi support is listed in the parameter sheet.

Heating / Cooling / Auto modes.

Follow pairing instructions for the supplied controller.

Smartphone held near an R32 mini swimming pool heat pump to illustrate Wi-Fi control
R32 mini heat pump on a level base beside a small above-ground pool after light rain

Connect to your small-pool system.

The supplied data identifies a titanium water-side heat exchanger, DN32 water connections and a Plug & Play design. Check water flow, fitting compatibility and the delivered electrical connection before setup.

Water flow: 1.4 / 2.0 / 2.0 m³/h.

Metal cabinet.

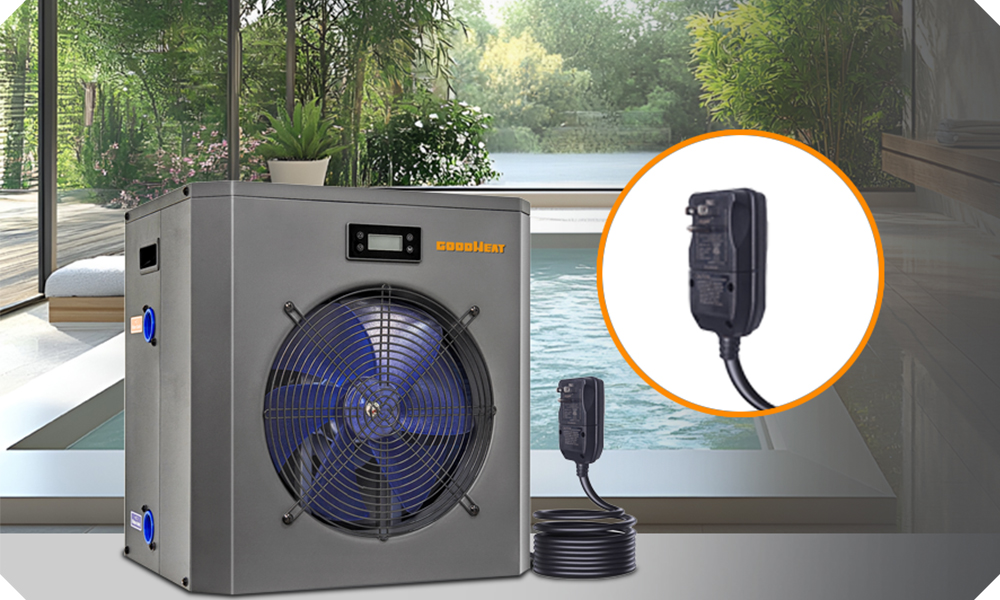

Confirm any 38 mm adapter and power-plug requirements.

Related Products

Find the right model for your pool.

Share your pool volume, location and preferred series with GOODHEAT.

Performance at stated conditions.
Capacity 3kW 4kW 5kW
Model GSPSHM-3BA1 GSPSHM-4BA1 GSPSHM-5BA1
General Specifications
Recommended Pool Volume (m³) 2~4 3~6 4~9
Operating Ambient Temperature (°C) −7~43
AC Power Supply (V / Ph / Hz) 220~240 / 1 / 50 220~240 / 1 / 50 220~240 / 1 / 50
Heating Performance · Air 26 °C / Water inlet 26 °C, outlet 28 °C / RH 80 %
Heating Capacity (kW) 3.30 3.70 5.00
Electrical Power Input (kW) 0.63 0.83 1.02
Coefficient of Performance (COP) 5.20 4.45 4.90
Heating Performance · Air 15 °C / Water inlet 26 °C, outlet 28 °C / RH 70 %
Heating Capacity (kW) 2.30 2.80 3.40
Electrical Power Input (kW) 0.62 0.78 0.89
Coefficient of Performance (COP) 3.70 3.60 3.80
Cooling performance · Air 35 °C / Water inlet 12 °C, outlet 7 °C / RH 70%
Cooling Capacity (kW) 1.26 1.67 1.98
Electrical Power Input (kW) 0.64 0.85 1.00
Energy Efficiency Ratio (EER) 1.96 1.95 1.98
Electrical & Hydraulic Data
Max. Power Input (kW) 1.3 0.9 1.8
Max. Current Input (A) 7.2 4.8 8.8
Water Flow Rate (m³/h) 1.4 2.0 2.0
Water Connection DN32 DN32 DN32
Components & Construction
Refrigerant / Charge R32/0.25kg R32/0.25kg R32/0.38kg
Heat Exchanger Titanium
Airflow Direction Horizontal
Casing Material Metal
Acoustic Data
Noise Level [dB(A)] 48 48 49
Dimensions & Shipping
Net Weight (kg) 23 25 28
Gross Weight (kg) 28 29 30
Unit Dimensions (mm) 420 × 360 × 453
Packaging Dimensions (mm) 515 × 475 × 540

Find the right model for your pool.

Share your pool volume, location and preferred series with GOODHEAT.

Plan your small-pool setup.

Is this an inverter heat pump?

No. The supplied sheet identifies fixed-speed ON/OFF operation.

Which pool volume fits each model?

Does it heat and cool?

Can I control it with my phone?

What does Plug & Play mean for my installation?

What size are the water connections?

Which documents should I use for final selection?
