| Model | 7kW | 9kW | 12kW | 15kW | 18kW | 25kW | 35kW | 25kW | 35kW | 41kW |
GSPVSV-7BA1
| GSPVSV-9BA1 | GSPVSV-12BA1 | GSPVSV-15BA1 | GSPVSV-18BA1 | GSPVSV-25BA1 | GSPVSV-35BA1 | GSPVTV-25BA1 | GSPVTV-35BA1 | GSPVTV-41BA1 |
Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out
|
| Heating Capacity(kW) | 1.70~7.00 | 2.30~8.80 | 3.90~11.00 | 5.80~14.50 | 6.20~17.90 | 7.50~24.5 | 8.80~35.00 | 7.50~24.50 | 8.80~35.00 | 10.00~41.00 |
| Power Input(kW) | 0.11~1.02 | 0.14~1.29 | 0.24~1.61 | 0.36~2.12 | 0.39~2.49 | 0.47~3.57 | 0.51~5.66 | 0.47~3.57 | 0.51~5.66 | 0.63~5.98 |
| Coefficient of Performance | 6.80~15.98 | 6.82~15.97 | 6.82~15.96 | 6.82~15.95 | 6.82~15.96 | 6.89~15.89 | 6.86~15.96 | 6.85~15.98 | 6.86~15.96 | 6.86~15.98 |
Average COP at 50% Capacity
| 11.60 | 11.80 | 11.60 | 11.60 | 11.50 | 11.80 | 11.60 | 11.50 | 11.80 | 11.60 |
Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out
|
| Heating Capacity(kW) | 1.40~5.30 | 1.90~7.00 | 2.30~9.40 | 3.60~12.50 | 4.20~15.00 | 5.50~21.00 | 6.90~28.60 | 5.50~21.00 | 6.90~28.60 | 7.90~35.00 |
| Power Input(kW) | 0.19~1.13 | 0.25~1.46 | 0.29~1.96 | 0.48~2.60 | 0.50~3.06 | 0.72~4.29 | 0.86~5.85 | 0.72~4.29 | 0.86~5.85 | 1.01~7.00 |
| COP | 4.70~7.50 | 4.80~7.60 | 4.80~7.80 | 4.80~7.70 | 4.9~7.8 | 4.9~7.6 | 4.9~8.0 | 4.90~7.80 | 4.90~8.00 | 5.00~7.80 |
| Average COP at 50% Capacity | 6.60 | 6.80 | 6.70 | 6.70 | 6.80 | 6.70 | 6.80 | 6.70 | 6.80 | 6.70 |
| Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out |
| Cooling Capacity(kW) | 1.00~4.20 | 1.30~5.30 | 1.90~6.80 | 2.10~9.40 | 2.70~11.60 | 3.80~14.90 | 4.90~19.30 | 3.80~14.90 | 4.90~19.30 | 5.90~23.40 |
| Power Input(kW) | 0.51~1.11 | 0.19~1.40 | 0.25~1.89 | 0.54~2.47 | 0.66~3.05 | 0.77~3.92 | 0.93~5.08 | 0.77~3.92 | 0.99~5.08 | 1.26~5.88 |
| EER | 3.50~6.00 | 3.50~6.10 | 3.40~6.50 | 3.60~6.30 | 3.40~6.20 | 3.80~6.70 | 3.40~6.40 | 3.80~6.70 | 3.50~6.40 | 3.10~6.30 |
| General Data |
Power Supply
| 220~240V/1ph/50~60Hz | 380~415V/3ph/50~60Hz |
Max. Power Input(kW)
| 1.45 | 1.75 | 2.75 | 3.15 | 3.75 | 5.17 | 6.43 | 4.76 | 7.20 | 9.58 |
| Max. Current(A) | 7.10 | 8.30 | 11.50 | 14.50 | 17.50 | 23.50 | 30.00 | 7.90 | 12.70 | 13.50 |
| Water Flow Volume(m³/h) | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | 9.0 | 12.0 | 9.0 | 12.0 | 18.0 |

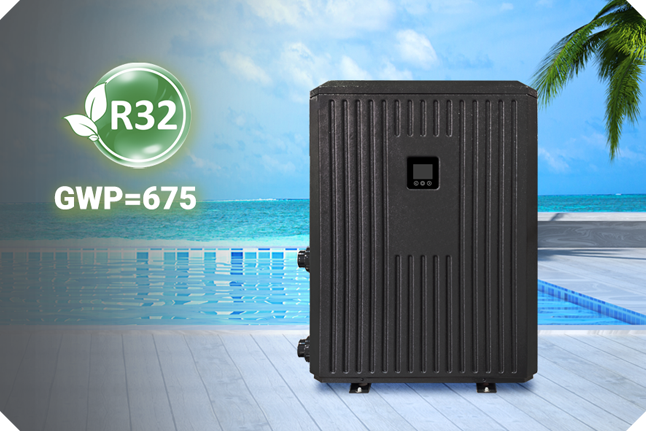

| Refrigerant | R32 |
| Heat Exchanger | Titanium |
| Air Flow Direction | Vertical |

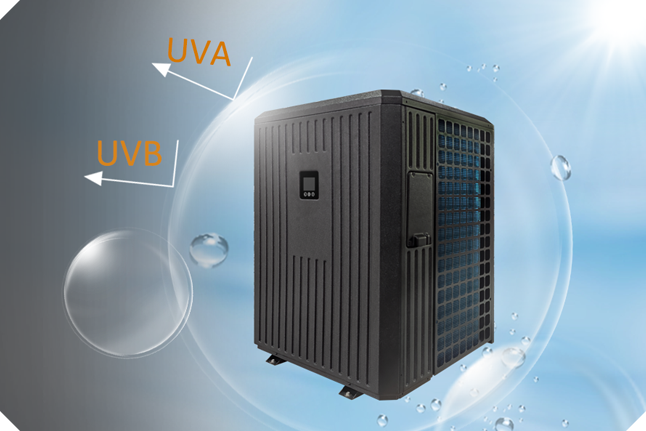

| Casing Material | ABS |
| Working Temp. Range(℃) | -15~43 |

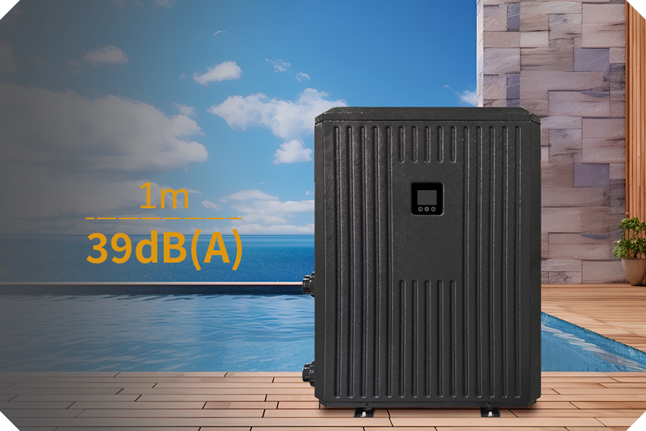

| Noise Level at 1m(dB(A)) | 39~51 | 40~52 | 41~53 | 42~54 | 43~56 | 47~58 | 46~59 | 47~58 | 49~59 | 49~59 |
| Water Pipe Connection | DN50 |
| Net Weight(kg) | 50 | 55 | 65 | 71 | 73 | 95 | 113 | 96 | 114 | 115 |
| Gross Weight(kg) | 61 | 67 | 79 | 85 | 87 | 112 | 130 | 113 | 131 | 132 |
| Net Dimension(mm) | 530*530*655 | 650*650*790 | 730*730*980 |
| Packed Dimension(mm) | 600*560*820 | 720*680*950 | 800*760*1110 |
| Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data. |
