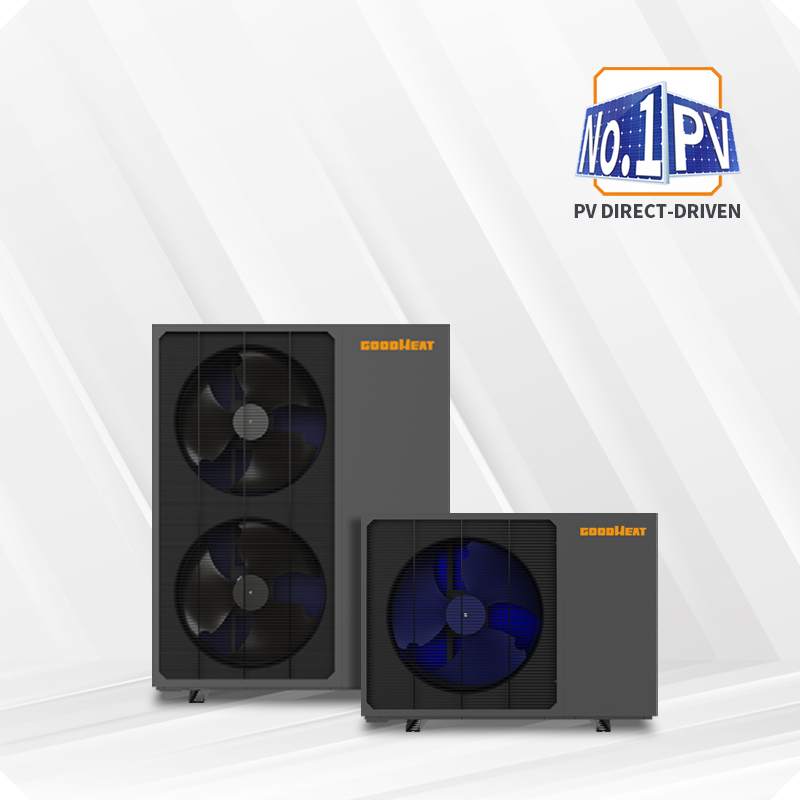

| Model | 6kW | 8kW | 10kW | 10kW | 12kW | 12kW | 16kW | 16kW | 18kW | 18kW | 24kW |
| GSHVSH-6AA1 | GSHVSH-8AA1 | GSHVSH-10AA1 | GSHVTH-10AA1 | GSHVSH-12AA1 | GSHVTH-12AA1 | GSHVSH-16AA1 | GSHVTH-16AA1 | GSHVSH-18AA1 | GSHVTH-18AA1 | GSHVTH-24AA1 |
| Power Supply | 220~240V/1ph/50Hz | 220~240V/1ph/50Hz | 220~240V/1ph/50Hz | 380~415V/3ph/50Hz | 220~240V/1ph/50Hz | 380~415V/3ph/50Hz | 220~240V/1ph/50Hz | 380~415V/3ph/50Hz | 220~240V/1ph/50Hz | 380~415V/3ph/50Hz | 380~415V/3ph/50Hz |
| PV Max. Input Current(A) | 18 | 18 | 30 | 18 | 30 | 18 | 30 | 18 | 30 | 30 | 30 |
| Optimal PV Input Voltage Range(V) | 180~350 | 180~350 | 180~350 | 360~500 | 180~350 | 360~500 | 180~350 | 360~500 | 180~350 | 360~500 | 360~500 |
| Recommended PV Module Qty. (630W/50.2V)(pcs) | 6 | 7 | 2 strings *4 modules | 8 | 2 strings 5 modules | 9 | 2 strings * 5 modules | 10 | 2 strings * 6 modules | 2 strings * 8 modules | 2 strings * 10 modules |
Heating Capacity(Max.)(A7/6℃, W30/35℃)
|
| Heating Capacity(kW) | 6.07(2.63~9.10) | 8.11(3.57~12.29) | 10.25(4.39~13.50) | 10.25(4.39~13.50) | 11.98(4.39~15.45) | 11.98(4.39~15.45) | 16.20(6.17~18.51) | 16.20(6.17~18.51) | 17.60(6.50~22.00) | 17.60(6.50~22.00) | 24.05(9.63~29.13) |
| Power Input(kW) | 1.19(0.54~2.28) | 1.60(0.74~3.17) | 2.07(0.89~3.55) | 2.07(0.89~3.55) | 2.45(0.89~4.06) | 2.45(0.89~4.06) | 3.38(1.26~4.83) | 3.38(1.26~4.83) | 3.62(1.35~5.88) | 3.62(1.35~5.88) | 4.96(2.00~7.82) |
| COP | 5.10(4.20~5.40) | 5.07(4.10~5.35) | 4.95(3.90~5.30) | 4.95(3.90~5.30)
| 4.89(3.85~5.20) | 4.89(3.85~5.20) | 4.79(3.75~5.00) | 4.79(3.75~5.00) | 4.86(3.82~5.30） | 4.86(3.82~5.30） | 4.85（3.86~5.30） |
| Heating Capacity(Max.)(A7/6℃, W47/55℃) |
| Heating Capacity | 5.99(2.99~8.19) | 8.11(3.65~10.96) | 10.07(3.85~11.75) | 10.07(3.85~11.75) | 11.55(3.85~13.35) | 11.55(3.85~13.35) | 15.89(5.75~17.20) | 15.89(5.75~17.20) | 17.85(5.45~18.89) | 17.85(5.45~18.89) | 23.85(8.45~25.89) |
| Power Input | 1.87(1.03~2.92) | 2.65(1.11~3.87) | 3.12(1.20~4.35) | 3.12(1.20~4.35) | 3.71(1.20~5.03) | 3.71(1.20~5.03) | 5.30(1.81~5.84) | 5.30(1.81~5.84) | 5.88(2.15~6.85) | 5.88(2.15~6.85) | 8.01(2.86~9.12) |
| COP | 3.20(2.90~3.46) | 3.18(2.83~3.45) | 3.23(2.75~3.57) | 3.23(2.75~3.57) | 3.11(2.65~3.57) | 3.11(2.65~3.57) | 3.00(2.83~3.45) | 3.00(2.83~3.45) | 3.03(2.64~3.57) | 3.03(2.64~3.57) | 2.98(2.84~3.57) |
| Cooling Capacity(Max.)(A35/24℃, W12/7℃) |
| Cooling Capacity(kW) | 5.00(1.38~5.70) | 7.10(1.44~8.11) | 8.50(3.65~9.45) | 8.50(3.65~9.45) | 10.00(3.65~11.04) | 10.00(3.65~11.04) | 13.00(4.03~13.51) | 13.00(4.03~13.51) | 15.00(4.55~17.20) | 15.00(4.55~17.20) | 17.00(6.15~19.50) |
| Power Input(kW) | 1.77(0.67~2.44) | 2.51(0.90~3.20) | 3.01(1.12~3.51) | 3.01(1.12~3.51) | 3.68(1.12~3.97) | 3.68(1.12~3.97) | 4.60(1.45~5.03) | 4.60(1.45~5.03) | 5.52(1.85~7.31) | 5.52(1.85~7.31) | 6.14(2.50~9.75) |
| EER | 2.82(2.03~3.20) | 2.83(2.00~3.15) | 2.82(2.00~3.10 | 2.82(2.00~3.10 | 2.72(1.95~3.00) | 2.72(1.95~3.00) | 2.83(1.98~3.05 | 2.83(1.98~3.05 | 2.72(1.96~2.98) | 2.72(1.96~2.98) | 2.77(2.03~3.00) |
| ErP Level(Outlet Water Temp. at 35℃/55℃) | A+++/A+++ | A+++/A++ | A+++/A+++ |
Rated Input Power(kW)
| 3.60 | 4.65 | 5.05 | 5.05 | 5.45 | 5.86 | 6.95 | 6.95 | 7.50 | 10.52 | 12.52 |
| Rated Input Current(A) | 15.0 | 20.4 | 23.0 | 8.50 | 25.0 | 10.0 | 30.5 | 11.7 | 35.0 | 17.3 | 19.5 |
| Refrigerant | R290 |
| Rated Water Flow(m3/h) | 1.00 | 1.37 | 1.72 | 1.72 | 2.06 | 2.06 | 2.75 | 2.75 | 3.10 | 3.10 | 4.20 |
| Water Pressure Drop(kPa) | 20 | 25 | 21 | 55 | 60 |
Fan Quantity
| 1 | 2 |
| Fan Motor Type | DC Inverter |
| Compressor | DC Inverter |
| Circulating Pump | Inverter Type/Built-in |
| IP Class | IPX4 |
| Max. Outlet Water Temp. | 75 |
| Ooperating Temp. Range(Heating Mode)(℃) | -25~45 |
| Operating Temp. Range(Cooling Mode(℃) | 16~45 |
Sound Pressure at 1m Distance(dB(A))
| 43(39~51) | 43(39~51) | 44(39~52) | 44(39~52) | 46(39~52) | 46(39~52) | 48(39~55) | 48(39~55) | 49(39~55) | 49(39~55) | 52(50~60) |
| Sound Pressure at 3m(dB(A)) | 35(32~44) | 35(32~44) | 37(32~45) | 37(32~45) | 39(32~45) | 39(32~45) | 41(32~48) | 41(32~48) | 47(32~48) | 47(32~48) | 45(43~53) |
| Water Piping Connections(inch) | G1 | G5/4 | G3/2 |
| Net Weight(kg) | 110 | 125 | 145 | 145 | 145 | 145 | 190 | 190 | 220 | 220 | 220 |
| Packed Weight(kg) | 115 | 135 | 165 | 165 | 165 | 165 | 220 | 220 | 240 | 240 | 240 |
| Unpacked Dimensions(L*D*H)(mm) | 1290*460*955 | 1490*500*1005 | 1190*500*1515 |
| Packed Dimensions*L*D*H)(mm) | 1320*500*1094 | 1520*540*1140 | 1220*540*1640 |
| Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data. |
