| Model | UKCH-80L2TR1A1 | UKCH-170L2TR1A1 | UKCH-320L2TR1A1 | UKCH-480L2TR1A1 |
| D80 | D170 | D320 | D480 |
| Power Supply | 380V/3ph/50Hz
|
| Heating(Max.)(A7/6℃, W30/35℃) |
| Heating Capacity(kW) | 80 | 166 | 320 | 473.1 |
| Input Power(kW) | 22.16 | 45.48 | 90.2 | 133.6 |
| Coefficient of Performance | 3.61 | 3.65 | 3.54 | 3.54 |
| Heating(Max.)(A-12/-14℃, W41℃) |
| Heating Capacity(kW) | 51 | 103.5 | 210 | 300 |
| Input Power(kW) | 19.92 | 40.27 | 81.5 | 116.6 |
| Coefficient of Performance | 2.56 | 2.57 | 2.57 | 2.56 |
| Nominal Cooling(Max.)(A35/24℃, W12/7℃) |
| Cooling Capacity(kW) | 60 | 140 | 270 | 400 |
| Input Power(kW) | 21.9 | 46.5 | 81.8 | 122.7 |
| Energy Efficiency Ratio | 2.74 | 3.01 | 3.30 | 3.26 |
| Heating(Max.)(A-20/-21, W41℃) |
| Heating Capacity(kW) | 42.5 | 88.5 | 178 | 265.7 |
| Input Power | 18.89 | 39.33 | 79.1 | 118 |
| COP | 2.25 | 2.25 | 2.25 | 2.25 |
| Max. Power Input(kW) | 37 | 67.5 | 135 | 203 |
| Max. Current Input(A) | 65 | 120 | 240 | 360 |

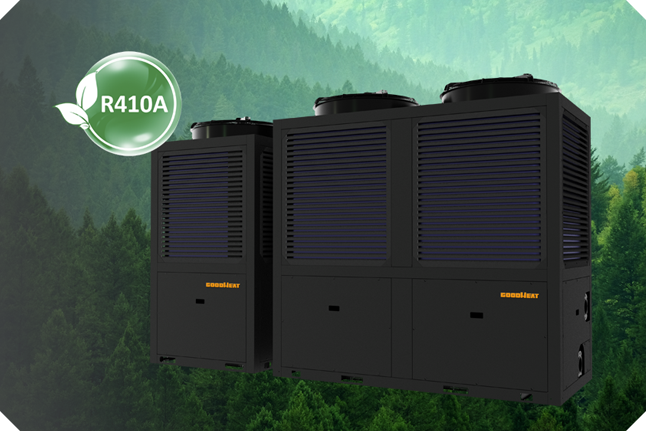

| Refrigerant | R410A
|
Max. Outlet Water Temp.(℃)
| 60
|
| Working Temp. Range(℃) | -35~45
|
| Noise(dB(A)) | 65 | 68 | 72 | 72 |
| Water Connection | Flange DN65 | Flange DN80
| Flange DN100 | DN125 |
| Water FLow Volume(m³/h) | 9.3 | 17.8 | 36 | 81 |
| Net Weight(kg) | 850 | 1100 | 2350 | 3540 |
| Packaged Dimensions(L*W*H)(mm) | 1740*870*1900 | 2200*1100*2250
| 2700*1770*2330 | 3250*2400*2480 |
| Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data. |
