| Model | 50kW | 100kW | 210kW | 400kW |
| GSHVTV-50BA1 | GSHVTV-100BA1 | GSHVTV-210BA1 | UKCH400L1VTA1 |
| Power Supply | 380~415V/3ph/50Hz
|
| Nominal Heating(Max.)(A7/6℃, W30/35℃) |
| Heating Capacity(kW) | 46.0(13.9~52.8) | 92.0(28.5~107.8) | 176.0(49.7~213.0) | 335.0(52.3~402.5) |
| Power Input(kW) | 11.1(3.0~15.2) | 22.2(5.9~30.3) | 42.33(11.1~60.0) | 98.8(16.3~137.8) |
| Coefficient of Performance | 4.14(3.50~4.75) | 4.15(3.52~4.80) | 4.16(3.55~4.82) | 3.39(2.92~3.91) |
| Nominal Heating(Max.)(A7/6℃, W47/55℃) |
| Heating Capacity(kW) | 43.3(13.5~49.5) | 86.5(27.9~102.3) | 172.0(48.6~202.0) | / |
| Power Input(kW) | 16.5(4.3~19.5) | 32.8(9.0~40.1) | 64.89(17.1~79.2) | / |
| Coefficient of Performance | 2.63(2.53~3.12) | 2.64(2.53~3.12) | 2.65(2.55~3.12) | / |
| Nominal Heating(Max.)(A-12/-14℃, W50/55℃) |
| Heating Capacity(kW) | 34.0(10.3~35.3) | 68.0(21.3~72.1) | 136.8(36.3~141.0) | 258.0(39.9~276.2)
|
| Power Input(kW) | 19.6(4.9~20.7) | 38.8(9.9~42.4) | 79.4(18.1~82.0) | 106.6(17.3~131.5) |
| Coefficient of Performance | 1.73(1.70~2.20) | 1.75(1.70~2.20) | 1.72(1.65~2.15) | 2.42(2.05~2.90) |
| Nominal Cooling(Max.)(A35/24℃, W12/7℃) |
| Cooling Capacity(kW) | 28.0(12.2~30.6) | 56.0(25.2~62.5) | 106.0(39.4~135.2) | 215.0(31.9~233.7) |
| Power Input(kW) | 12.1(5.1~17.2) | 27.0(10.7~31.1) | 46.1(18.7~73.1) | 97.7(15.1~116.9) |
| Max. Power Input(kW) | 22.0 | 43.0 | 82.0 | 155.0
|
| Max. Current(A) | 43.5 | 85.0 | 160.0 | 270.0 |

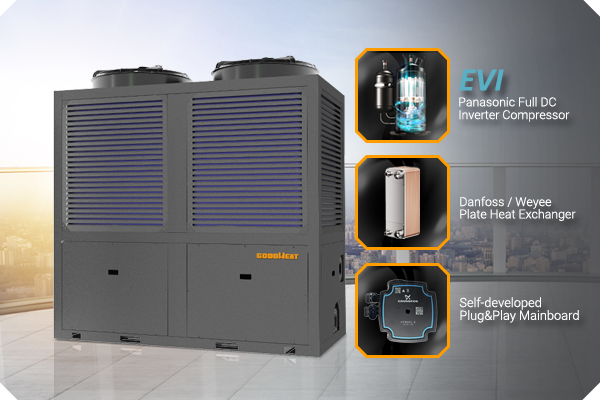

| Compressor Quantity | 1 | 2 | 4 |
| Expansion Valve | EEV |
| Air Flow Direction | Vertical |
| IP Class | IPX4 |
| Water Flow Volume(m³/h) | 8.0 | 16.0 | 30.0 | 54.0 |
| Water Pressure Drop(kPa) | 70 | 73 | 76 |
|
| Working Temp. Range(℃) | -35~46 |
| Max. Water Outlet Temperature(℃) | 60
|

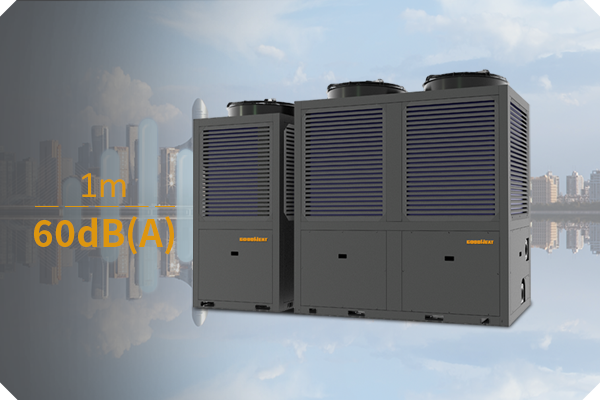

| Noise(dB(A)) | ≤65 | ≤68 | ≤76 | ≤76 |
| Water Connection | G1-1/2 | (Flange)DN65 | (Flange)DN80 | (Flange)DN100 |
| Net Weight(kg) | 450 | 780 | 1250 | 2600 |
| Dimensions(L*W*H)(mm) | 1100*1100*2150 | 2000*1110*2250 | 2400*1160*2450 | 2400*2200*2500 |
| Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data. |
