| Model | 50kW
| 75kW | 100kW |
| GSHVTV-050AA1 | GSHVTV-075AA1 | GSHVTV-100AA1 |
| Power Supply | 380~415V/3ph/50Hz
|
| Nominal Heating(Max.)(A7/6℃, W30/35℃) |
| Heating Capacity(kW) | 18.50~50.50 | 25.00~76.00 | 35.50~105.00 |
| Power Input(kW) | 3.95~14.80 | 5.75~21.71 | 7.95~30.43 |
| Coefficient of Performance | 3.50~4.70 | 3.55~4.65 | 3.50~4.62 |
| Nominal Heating(Max.)(A7/6℃, W47/55℃) |
| Heating Capacity(kW) | 10.85~40.00 | 19.58~67.27 | 26.85~93.45 |
| Power Input(kW) | 3.74~13.79 | 6.19~26.91 | 8.52~37.38 |
| Coefficient of Performance | 3.02~3.52 | 2.50~3.38 | 2.55~3.28 |
| Nominal Cooling(Max.)(A35/24℃, W12/7℃) |
| Cooling Capacity(kW) | 10.15~28.50 | 13.50~48.50 | 16.20~65.50 |
| Power Input(kW) | 3.63~12.95 | 6.91~20.90 | 7.35~33.41 |
| Energy Efficiency Ratio | 2.20~2.70 | 2.00~2.45 | 2.00~2.50 |
| Max. Power Input(kW) | 19.3 | 30.5 | 40.5 |
| Max. Current Input(A) | 35.0 | 54.5 | 82.0 |
| ERP level(35℃/55℃) | A+++/A++
|
| Max. Allowable Pressure | 3.2
|

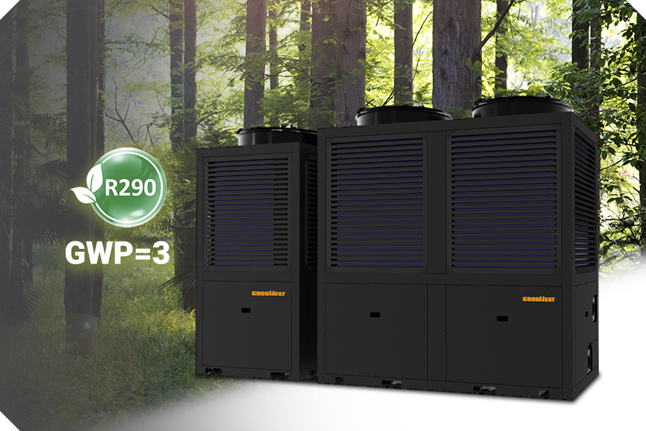

| Refrigerant | R290
|
| Electrical Shockproof | Ⅰ
|

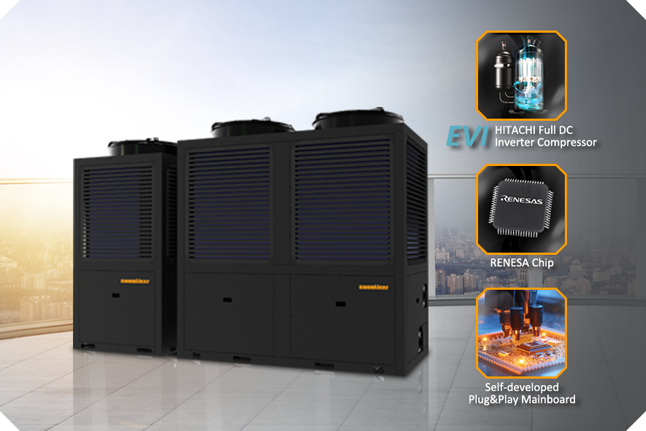

| Compressor Quantity | 1 | 2
|
| Fan Motor Quantity | 1 | 2
|
| Fan Motor Type | DC
|
| Expansion Valve | EEV/Sanhua
|
| Air Flow Direction | Vertical
|
| IP Class | IPX4
|
| Water Flow Volume(m³/h） | 6.0 | 9.0 | 12.5 |
| Water Pressure Drop(kPa) | 65 | 75 | 76 |
| Working Temp. Range(℃) | -25~46
|

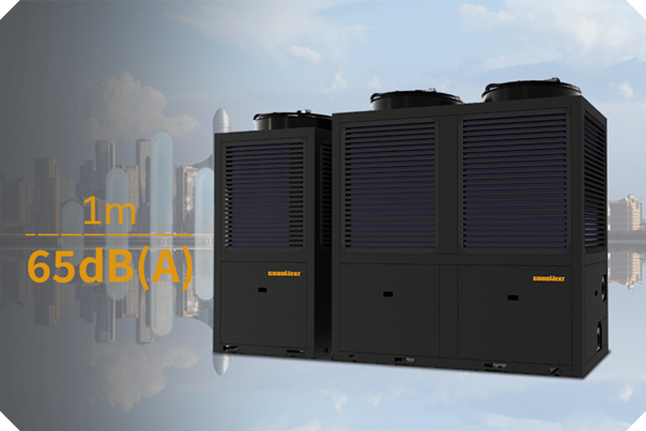

| Noise(dB(A)) | 55(39~55) | 62(54~72)
|
| Water Connection | G1-1/2 | Flange DN80
|
Net Weight(kg)
| 450 | 780 | 900 |
| Net Dimensions(L*W*H)(mm) | 1100*1100*2150 | 2200*1100*2255
|
| Packaged Dimensions(L*W*H)(mm) | 1144*1144*2250 | 2260*1160*2385
|
| Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data. |
