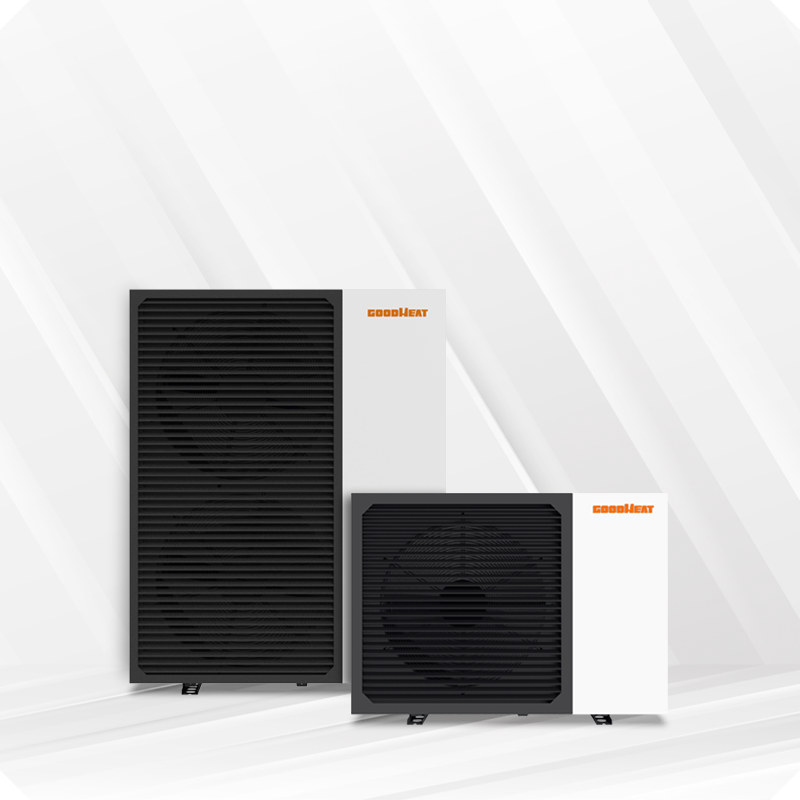

R32 Residential Air-to-Water Heat Pump

  • R32 monobloc heat pump for heating, cooling and domestic hot water.
  • Available in Standard and PV Direct-Driven Series.
  • DC inverter EVI compressor and fan.
  • Built-in inverter circulating pump.
  • Maximum leaving-water temperature: 60 °C; heating ambient down to −38 °C.*
  • A+++ at 35 °C / A++ at 55 °C, as declared in the detailed specification.
  • Colour touchscreen, dual-zone control, SG Ready and Wi-Fi connectivity.

*Separate operating limits; output depends on the selected model and conditions.

Availability:
Inquire

Description
Specification
FAQ

Comfort for your home.

A choice of energy input.

GOODHEAT R32 monobloc heat pump outside a home with living and bathroom spaces

One system.

Everyday comfort.

An R32 monobloc platform for space heating, space cooling and domestic hot-water preparation. Match the unit to your building heat load, water temperature and chosen terminals.

Underfloor heating, suitable radiators and fan coils.

Cooling with compatible terminals and condensate management.

Domestic hot water with a suitable cylinder and controls.

Built for colder days.

EVI compressor technology and inverter control support heating across a wide outdoor temperature range. The detailed R32 sheets and service manual declare heating operation down to −38 °C.

Maximum leaving-water temperature: 60 °C.

Declared heating ambient range: −38 to 43 °C.*

Intelligent defrosting supports winter operation.

GOODHEAT dual-fan R32 EVI heat pump outside a warmly lit home in winter
GOODHEAT single-fan R32 inverter heat pump in a residential garden at dusk

Output that follows demand.

A DC inverter compressor, DC inverter fan and built-in inverter circulating pump help the system respond to changing heating and cooling requirements.

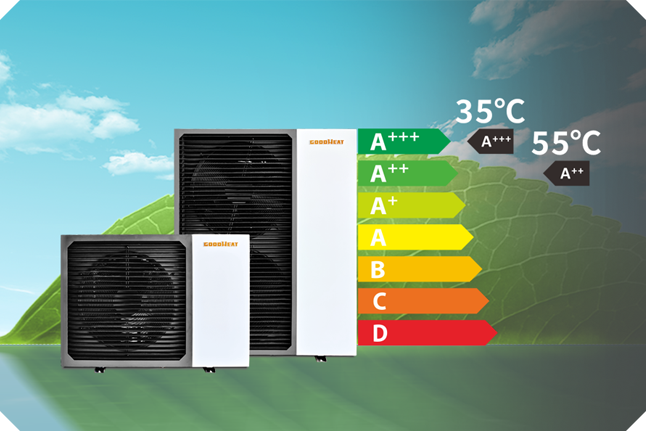

Declared energy class: A+++ at 35 °C / A++ at 55 °C.

Inverter regulation and selectable quiet operation.

Choose installation location and operating settings to manage sound.

Clear control.

More system flexibility.

Use the colour touchscreen for temperature, mode and timer settings. Connected functions bring app access and service visibility to the selected configuration.

Dual-temperature-zone control and SG Ready.

Wi-Fi app control; optional 4G by configuration.

Up to 16 units in a properly designed cascade system.

Wired touchscreen controller beside a window overlooking a GOODHEAT R32 heat pump
GOODHEAT dual-fan R32 PV direct-driven heat pump beside a home with rooftop solar panels

Bring solar into the system.

The PV Direct-Driven Series adds dedicated photovoltaic input alongside the specified AC supply. Select the PV model and its input limits when designing the solar strings.

Model-specific PV current, optimal voltage and module guidance below.

PV input is an electrical function; SG Ready is a control interface.

*60 °C maximum water temperature and −38 °C minimum ambient are separate operating limits. They do not mean 60 °C water is available at −38 °C. Output depends on the model, water temperature and operating conditions. Interface imagery is an AI-assisted illustration based on the supplied controller guide; final controls vary by configuration.

Related Products

Build the right system for your home.

Share your location, heating load and preferred energy configuration.

Compare models.

Check the energy input.

Capacity classes across the top; parameter names and units on the left. Standard and PV model identifiers are listed separately. Green rows apply to PV Series only.
Capacity 6kW 8kW 10kW 10kW 12kW 12kW 14kW 14kW 16kW 16kW 18kW 18kW 24kW 34kW
Model GSHVSH-6BA1 GSHVSH-8BA1 GSHVSH-10BA1 GSHVTH-10BA1 GSHVSH-12BA1 GSHVTH-12BA1 GSHVSH-14BA1 GSHVTH-14BA1 GSHVSH-16BA1 GSHVTH-16BA1 GSHVSH-18BA1 GSHVTH-18BA1 GSHVTH-24BA1 GSHVTH-34BA1
General Specifications
AC Power Supply (V / Ph / Hz) 220~240 / 1 / 50 220~240 / 1 / 50 220~240 / 1 / 50 380~415 / 3N / 50 220~240 / 1 / 50 380~415 / 3N / 50 220~240 / 1 / 50 380~415 / 3N / 50 220~240 / 1 / 50 380~415 / 3N / 50 220~240 / 1 / 50 380~415 / 3N / 50 380~415 / 3N / 50 380~415 / 3N / 50
Operating Ambient Temperature——Heating (°C) −38~43
Operating Ambient Temperature——Cooling (°C) 16~48
Maximum Leaving-Water Temperature (°C) 60
PV Electrical Specifications — PV Series only
PV Max. Input Current (A) 21 42 42 42 42 42 42 42 42 42 42 42 42 42
Optimal PV Input Voltage Range (V) 45~400 45~450 45~450 130~750 45~450 130~750 45~450 130~750 45~450 130~750 45~450 130~750 130~750 130~750
Recommended PV Module Qty. (630 W / 50.2 V) (modules) 5 6 7 7 8 8 2 strings × 5 10 2 strings × 6 12 2 strings × 6 12 2 strings × 9 2 strings × 10
Heating Performance · Air DB 7°C, WB 6 °C / Water inlet 30 °C, outlet 35 °C
Heating Capacity (kW) 6.05 (2.80~8.80) 8.20 (5.10~10.85) 10.05 (5.10~12.90) 12.00 (5.90~15.12) 14.05 (6.10~16.99) 15.80 (6.37~19.11) 18.21 (6.90~21.00) 24.05 (7.90~26.20) 34.15 (9.17~36.80)
Norminal Power Input (kW) 1.29 (0.59~1.95) 1.74 (0.86~2.42) 2.16 (0.86~2.88) 2.45 (1.15~3.61) 2.99 (1.15~4.15) 3.43 (1.31~4.93) 3.65 (1.36~5.28) 5.29 (1.78~6.45) 7.59 (2.51~9.09)
Coefficient of Performance (COP) 4.70 (4.25~5.05) 4.70 (4.23~5.08) 4.65 (4.23~5.05) 4.90 (4.15~5.06) 4.70 (4.15~5.05) 4.64 (4.10~5.02) 4.99 (4.05~5.05) 4.55 (4.03~5.02) 4.50 (4.05~5.03)
Heating Performance · Air DB 7 °C, WB 6 °C / Water inlet 47 °C, outlet 55 °C
Heating Capacity (kW) 5.88 (2.30~7.62) 8.05 (3.85~9.41) 9.50 (3.85~11.20) 12.00 (4.90~13.15) 13.98 (4.90~15.10) 15.70 (4.90~17.60) 18.10 (6.30~19.90) 22.99 (6.90~26.10) 33.50 (9.73~36.80)
Norminal Power Input (kW) 1.78 (0.75~2.61) 2.44 (1.13~3.15) 2.92 (1.13~3.75) 3.96 (1.65~4.56) 4.30 (1.65~5.25) 4.83 (1.65~5.33) 5.82 (1.65~6.82) 8.04 (1.95~8.55) 11.55 (2.75~12.06)
Coefficient of Performance (COP) 3.30 (2.90~3.33) 3.30 (2.99~3.46) 3.25 (2.99~3.46) 3.03 (2.87~3.38) 3.25 (2.87~3.38) 3.25 (2.87~3.38) 3.11 (2.91~3.34) 2.86 (3.05~3.42) 2.90 (3.05~3.42)
Cooling Performance · Air DB 35 °C, WB 24 °C / Water inlet 12 °C, outlet 7 °C
Cooling Capacity (kW) 5.00 (1.80~7.10) 7.00 (2.60~8.50) 8.50 (2.60~10.30) 10.00 (4.50~11.85) 11.50 (4.50~13.50) 13.00 (5.05~15.00) 15.00 (5.50~17.50) 19.50 (5.20~21.30) 28.50 (7.33~30.03)
Norminal Power Input (kW) 2.00 (0.61~2.43) 2.69 (0.91~2.93) 3.40 (0.91~3.65) 4.00 (1.45~4.30) 4.42 (1.45~4.85) 5.20 (1.65~5.33) 6.00 (1.65~6.25) 7.80 (1.95~8.20) 11.40 (2.75~11.56)
Energy Efficiency Ratio (EER) 2.50 (2.45~3.05) 2.60 (2.45~3.05) 2.50 (2.35~3.00) 2.50 (2.40~2.96) 2.60 (2.42~2.89) 2.50 (2.42~2.85) 2.50 (2.38~2.96) 2.50 (2.34~2.95) 2.50 (2.35~2.92)
Electrical & Refrigerant Specifications
ErP Energy Efficiency Class · 35 °C / 55 °C A+++ / A++
Rated Power Input (kW) 2.78 3.49 3.79 3.89 5.05 5.05 6.11 6.11 7.12 7.12 7.80 7.56 11.50 13.10
Rated Current Input (A) 12.00 15.00 17.00 6.50 22.20 8.50 27.50 10.50 33.00 12.50 35.00 13.00 18.50 22.00

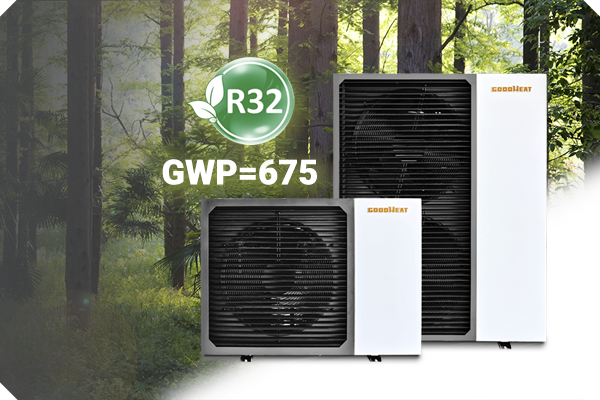

Refrigerant Type / Charge / Declared GWP R32 / 1.25 kg / 675 R32 / 1.80 kg / 675 R32 / 1.80 kg / 675 R32 / 1.80 kg / 675 R32 / 2.20 kg / 675 R32 / 2.20 kg / 675 R32 / 2.40 kg / 675 R32 / 2.40 kg / 675 R32 / 2.40 kg / 675 R32 / 2.40 kg / 675 R32 / 3.50 kg / 675 R32 / 3.50 kg / 675 R32 / 3.90 kg / 675 R32 / 5.20 kg / 675
Rated Water Flow (m³/h) 1.10 1.38 1.72 1.72 2.06 2.06 2.41 2.41 2.75 2.75 3.10 3.10 4.12 5.85
Water Pressure Drop (kPa) 29 32 35
Water Proof Level IPX4
Water Connection G1 G5/4 R3/2
Acoustic Data

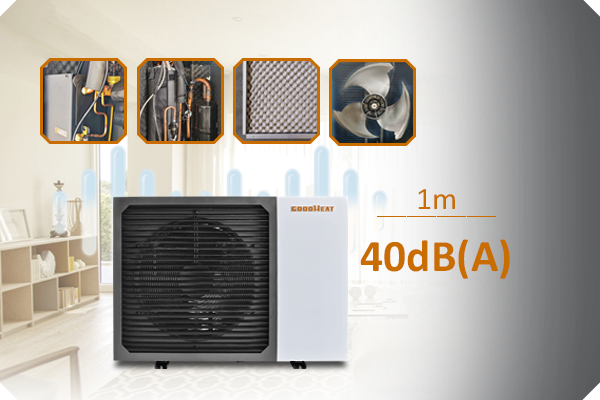

Noise Level at 1 m [dB(A)] 49 43 (39~52) 45 (39~52) 45 (39~52) 45 (39~53) 46 (39~53) 48 (39~54) 48 (39~54) 52 (40~58) 52 (42~62)
Dimensions & Shipping
Net Weight (kg) 113 120 120 121 128 131 132 175 181 212
Gross Weight (kg) 125 132 132 133 140 143 144 189 195 228
Unit Dimensions (mm) 1170×462×855 1130×452×1443
Packaging Dimensions (mm) 1230×540×1010 1190×540×1600

Performance values are declared nominal ratings at the stated conditions, not the capacity-class label. Actual output and efficiency vary with conditions.


“Optimal voltage range” is not an absolute maximum DC voltage. Module quantities are reference configurations, not a maximum PV power rating; confirm allowable cold-weather string Voc, current and maximum PV input power before design. Standard models do not have these dedicated PV-input specifications.


Heating ambient limits follow the detailed tables and service manual. Legacy sheets contain different limits. The 34 kW cabinet dimensions differ between source versions and are intentionally left for confirmation.

Build the right system for your home.

Share your location, heating load and preferred energy configuration.

Plan your system

with the right details.

Are Standard and PV Series covered by one table?

Yes. The two detailed sheets list matching nominal heating/cooling performance for corresponding capacity and phase variants. Both model identifiers appear above; the three PV rows apply only to P-coded PV models.

What is the maximum water temperature?

Can it operate at −38 °C?

Is A+++ available at both water temperatures?

Does it provide domestic hot water?

Is SG Ready the same as PV direct drive?

Can I connect existing rooftop PV strings?

What wired controller is available?

Can multiple units be combined?

What floor area can each model heat?
