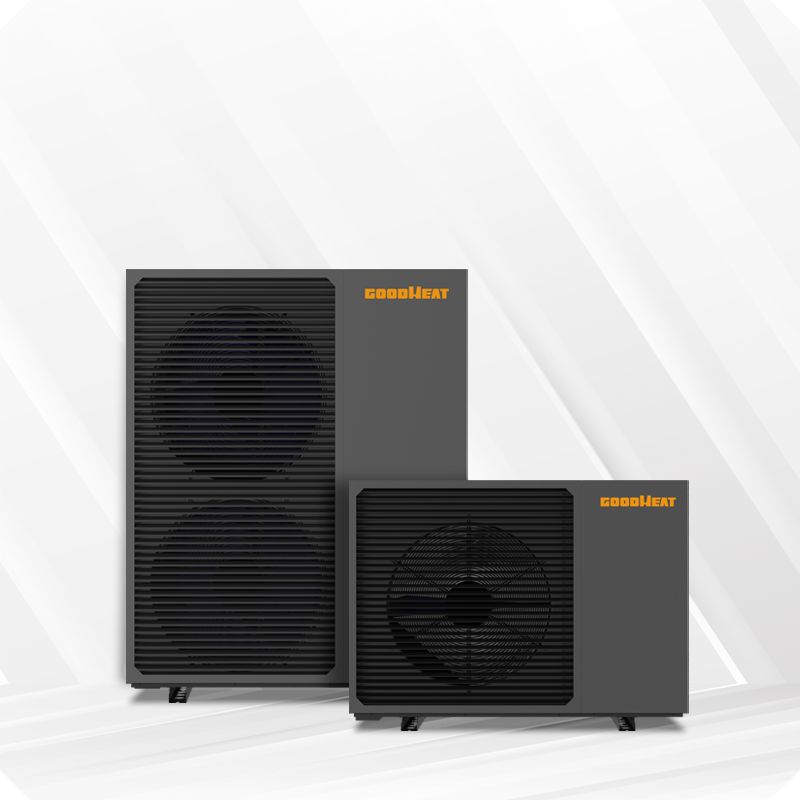

GOODHEAT R290 residential air-to-water heat pump showing the front fan grille and right side panel

R290 Residential Air-to-Water Heat Pump

R290 monobloc heat pump for heating, cooling and domestic hot water.
Available in Standard and PV Direct-Driven Series.
Full DC inverter compressor and fan motor; built-in inverter circulating pump.
6–24 kW size options, with single- and three-phase models.
Outlet water temperature up to 75 °C; heating operation down to −25 °C ambient.*
Colour touchscreen, dual-zone control and Wi-Fi connectivity.
A+++ at 35 °C; 55 °C energy class varies by model.

*Maximum outlet temperature and minimum ambient temperature are separate operating limits. Final model selection depends on the building heat load and system design.


Availability:



Inquire

Description

Specification

FAQ

Year-Round Comfort.

Your Choice of Energy.

Heating, cooling and domestic hot water, with a choice of conventional AC or dedicated PV direct-driven configurations.

GOODHEAT R290 monobloc heat pump outside a renovated home with an indoor radiator

One system.

More comfort.

Designed for new-build and renovation projects, the R290 monobloc platform works with suitable radiators, underfloor heating, fan coils and domestic hot-water storage.

A DC inverter system adapts output to changing demand. Select the model and water temperature to match your home and heat emitters.

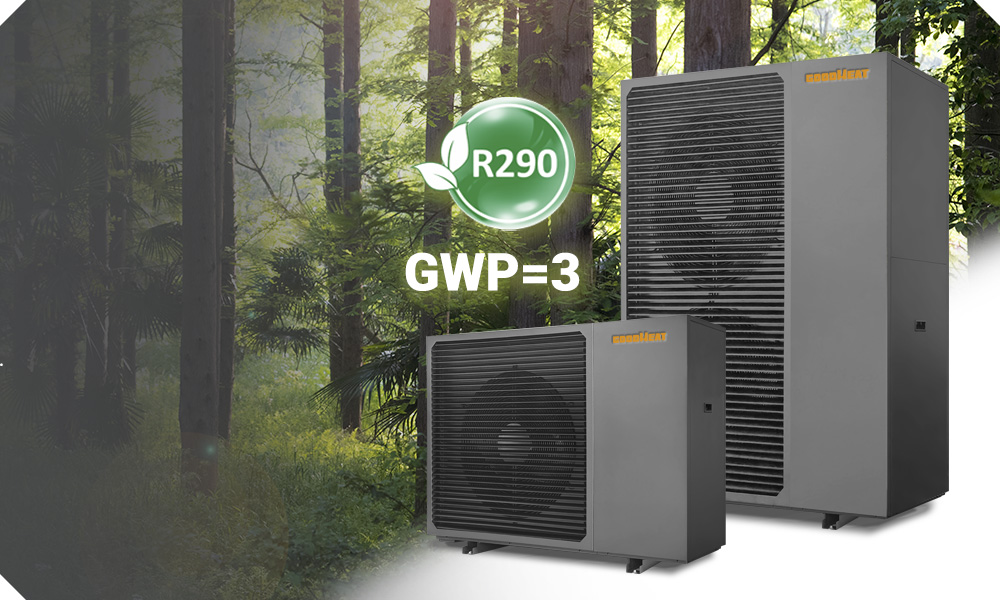

R290

Natural refrigerant

4–18 kW

Model size options

Functions follow system design and operating priorities.

More options for

year-round comfort.

Leaving-water temperatures up to 75 °C expand options for suitable radiator-led retrofits and hot-water systems. Heating operation is designed for outdoor temperatures down to −25 °C.

75 °C

Max. leaving-water temperature

−25 °C

Min. heating ambient

GOODHEAT R290 air-to-water heat pump outside a modern home with warm interior lighting

GOODHEAT R290 residential heat pump beside a garden at dusk, illustrating quiet operation

Quiet, by design.

Acoustic materials, vibration isolation, structural measures and stepless inverter regulation work together to control sound at its source.

32 dB(A)

As low as · at 3 m*

10

Coordinated acoustic and vibration measures

Clear control.

Comfort that follows your day.

Choose a wide-format 7-inch or compact 4-inch wired controller according to your selected configuration.

GOODHEAT wall-mounted wired controllers with a 7-inch landscape touchscreen on the left and a 4-inch compact touchscreen on the right

GOODHEAT R290 PV direct-driven heat pump beside a home with rooftop solar panels

Solar, direct.

Energy, visible.

Dedicated PV strings connect to built-in MPPT without a separate external PV inverter. AC support supplies the system when solar input is low.

With the selected controller, view PV voltage, current, power and generation alongside mains consumption.

Related Products

R290 Residential Air-to-Water Heat Pump

Inquire

R32 Residential Air-to-Water Heat Pump

Inquire

R290 Commercial Air-to-Water Heat Pump

Inquire

R32 Commercial Air-to-Water Heat Pump

Inquire

Build the right system for your home.

Share your location, heating load and preferred energy configuration.

Request a Quote

Compare the size.

Check the configuration.

Capacity classes across the top; model identifiers, parameter names and units down the left.

Performance and physical data below are published for Standard Series. Request the exact P-coded PV model datasheet for its performance, electrical supply and dimensions. Scroll horizontally to compare sizes.

Capacity	4kW	6kW	8kW	10kW	10kW	12kW	12kW	16kW	16kW	18kW	18kW
Model	GSHVSH-4AE1	GSHVSH-6AE1	GSHVSH-8AA1	GSHVSH-10AA1	GSPVSH-18AA1	GSPVTH-18AA1	GSPVSH-27AA1	GSHVSH-16AA1	GSHVTH-16AA1	GSHVSH-18AA1	GSHVTH-18AA1
General Specifications
AC Power Supply (V / Ph / Hz)	220~240 / 1 / 50	220~240 / 1 / 50	220~240 / 1 / 50	220~240 / 1 / 50	380~415 / 3N / 50	220~240 / 1 / 50	380~415 / 3N / 50	220~240 / 1 / 50	380~415 / 3N / 50	220~240 / 1 / 50	380~415 / 3N / 50
Operating Ambient Temperature——Heating (°C)	-25~45
Operating Ambient Temperature——Cooling (°C)	16~45
Maximum Leaving-Water Temperature (°C)	75
PV Electrical Specifications — PV Series only
PV Max. Input Current (A)	21	42	42	42	42	42	42	42	42	42	42
Optimal PV Input Voltage Range (V)	45~400	45~450	45~450	45~450	130~750	45~450	130~750	45~450	130~750	45~450	130~750
Recommended PV Module Qty. (630 W / 50.2 V) (modules)	6	6	8	8	8	2 strings × 5	10	2 strings × 6	11	2 strings × 6	2 strings × 9
Heating Performance · Air DB 7°C, WB 6 °C / Water inlet 30 °C, outlet 35 °C
Heating Capacity (kW)	4.00 (1.72~5.88)	6.00 (2.40~8.00)	8.11 (3.57~12.29)	10.25 (4.39~13.50)			11.98 (4.39~15.45)			16.20 (6.17~18.51)		17.60 (6.50~22.00)
Norminal Power Input (kW)	0.82 (0.33~1.53)	1.26 (0.46~2.08)	1.60 (0.74~3.17)	2.07 (0.89~3.55)			2.45 (0.89~4.06)			3.38 (1.26~4.83)		3.62 (1.35~5.88)
Coefficient of Performance (COP)	4.90 (3.85~5.25)	4.75 (3.85~5.20)	5.07 (4.10~5.35)	4.95 (3.90~5.30)			4.89 (3.85~5.20)			4.79 (3.75~5.00)		4.86 (3.82~5.30)
Heating Performance · Air DB 7°C, WB 6 °C / Water inlet 47 °C, outlet 55 °C
Heating Capacity (kW)	4.00 (1.49~4.85)	6.00 (2.08~7.10)	8.11 (3.65~10.96)	10.07 (3.85~11.75)			11.55 (3.85~13.35)			15.89 (5.75~17.20)		17.85 (5.45~18.89)
Norminal Power Input (kW)	1.31 (0.47~1.70)	1.97 (0.65~2.49)	2.65 (1.11~3.87)	3.12 (1.20~4.35)			3.71 (1.20~5.03)			5.30 (1.81~5.84)		5.88 (2.15~6.85)
Coefficient of Performance (COP)	3.05 (2.85~3.20)	3.05 (2.85~3.20)	3.18 (2.83~3.45)	3.23 (2.75~3.57)			3.11 (2.65~3.57)			3.00 (2.83~3.45)		3.03 (2.64~3.57)
Cooling Performance · Air DB 35°C, WB 24 °C / Water inlet 12 °C, outlet 7 °C
Cooling Capacity (kW)	3.00 (1.46~3.90)	5.00 (2.25~6.20)	7.10 (1.44~8.11)	8.50 (3.65~9.45)			10.00 (3.65~11.04)			13.00 (4.03~13.51)		15.00 (4.55~17.20)
Nominal Power Input (kW)	1.02 (0.52~1.38)	1.77 (0.80~2.20)	2.51 (0.90~3.20)	3.01 (1.12~3.51)			3.68 (1.12~3.97)			4.60 (1.45~5.03)		5.52 (1.85~7.31)
Energy Efficiency Ratio (EER)	2.95 (2.82~3.20)	2.82 (2.82~3.20)	2.83 (2.00~3.15)	2.82 (2.00~3.10)			2.72 (1.95~3.00)			2.83 (1.98~3.05)		2.72 (1.96~2.98)
Electrical & Refrigerant Specifications
ErP Energy Efficiency Class · 35 °C / 55 °C	A+++ / A+++	A+++ / A+++	A+++ / A+++	A+++ / A+++	A+++ / A+++	A+++ / A+++	A+++ / A+++	A+++ / A++	A+++ / A++	A+++ / A+++	A+++ / A+++
Rated Power Input (kW)	2.70	3.60	4.65	5.05	5.05	5.45	5.86	6.95	6.95	7.52	10.52
Rated Current Input (A)	12.00	15.00	20.40	23.00	8.48	25.00	10.50	30.50	11.70	35.00	17.30
Refrigerant Type / Charge / Declared GWP	R290 / 0.46 kg / 3	R290 / 0.50 kg / 3	R290 / 0.90 kg / 3	R290 / 1.00 kg / 3	R290 / 1.00 kg / 3	R290 / 1.00 kg / 3	R290 / 1.00 kg / 3	R290 / 1.15 kg / 3	R290 / 1.15 kg / 3	R290 / 1.40 kg / 3	R290 / 1.40 kg / 3
Rated Water Flow (m³/h)	1.00	1.00	1.37	1.70	1.70	2.06	2.06	2.75	2.75	3.10	3.10
Water Pressure Drop (kPa)	15	20	25	20	20	20	20	55	55	55	55
Water Proof Level	IPX4
Water Connection (inch)	G1
Acoustic Data
Noise Level at 1 m [dB(A)]	45 (39~51)	45 (39~51)	45 (39~51)	44 (39~52)			46 (39~52)			48 (39~55)		49 (39~55)
Noise Level at 3 m [dB(A)]	38 (32~44)	38 (32~44)	38 (32~44)	37 (32–45)			39 (32~45)			41 (32~48)		47 (32~48)
Dimensions & Shipping
Net Weight (kg)	85	93	125	145			145			190		220
Gross Weight (kg)	87	95	135	165			165			220		240
Unit Dimensions (mm)	1030×430×705			1270×460×955								1490×500×1005	1190×500×1515
Packaging Dimensions (mm)	1060×470×720			1300×500×1090								1520×540×1140	1220×540×1640

Maximum water temperature and minimum ambient temperature are separate limits. Sound depends on model, operating point and installation. Confirm the latest model-specific datasheet before final selection.

Build the right system for your home.

Share your location, heating load and preferred energy configuration.

Request a Quote

Before you choose.

Which series should I choose?

Choose Standard for conventional AC power, or PV Series for a project with dedicated PV strings and AC support.

Can I connect an existing grid-tied PV string?

Does PV Series work at night?

Is a 7-inch controller standard on every model?

What does as low as 32 dB(A) mean?

Can it produce 75 °C water at −25 °C outdoor temperature?

Can I retain existing radiators?

How many PV modules do I need?

Are Standard and PV performance figures interchangeable?

What information is needed for selection?
