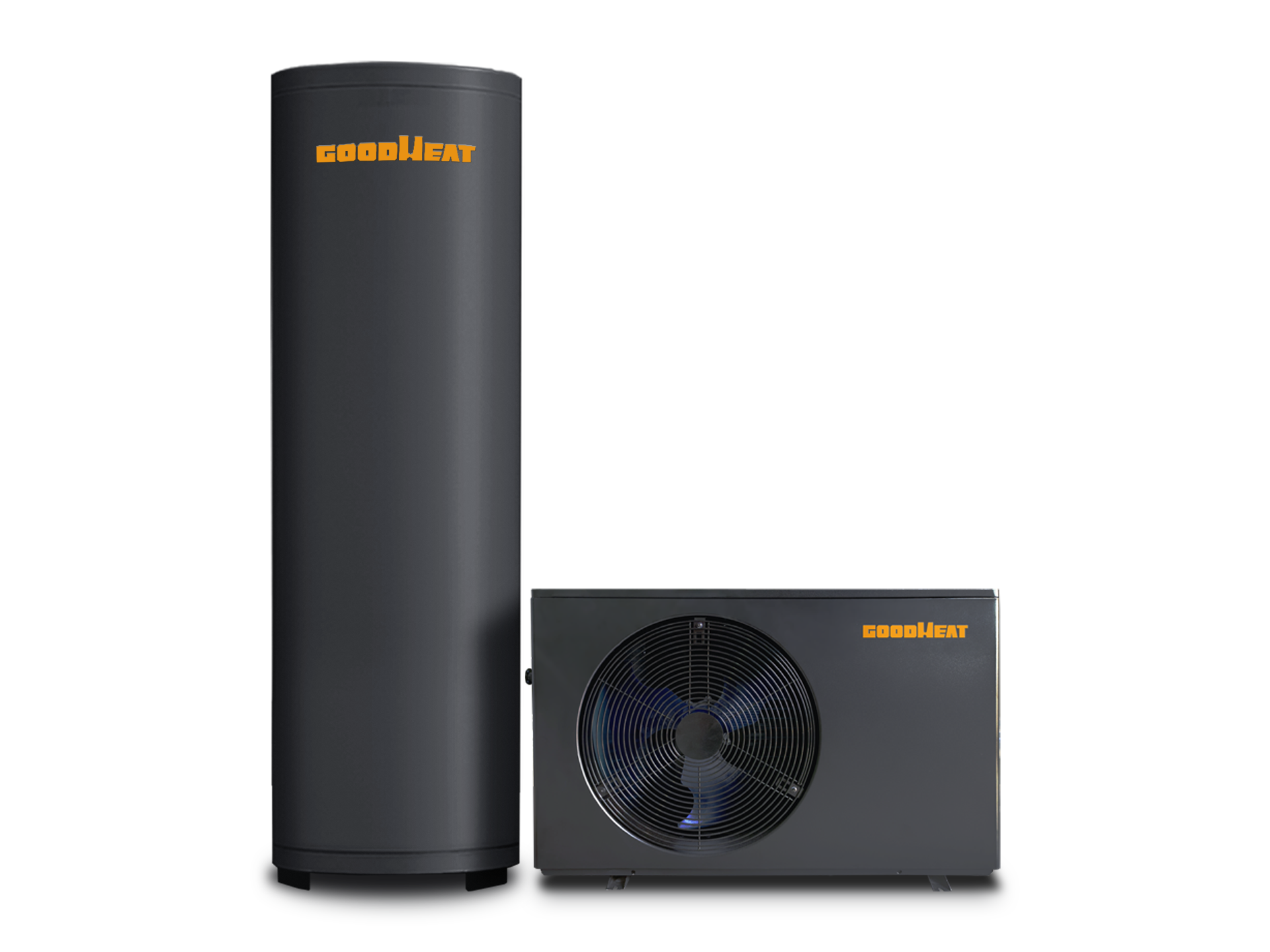

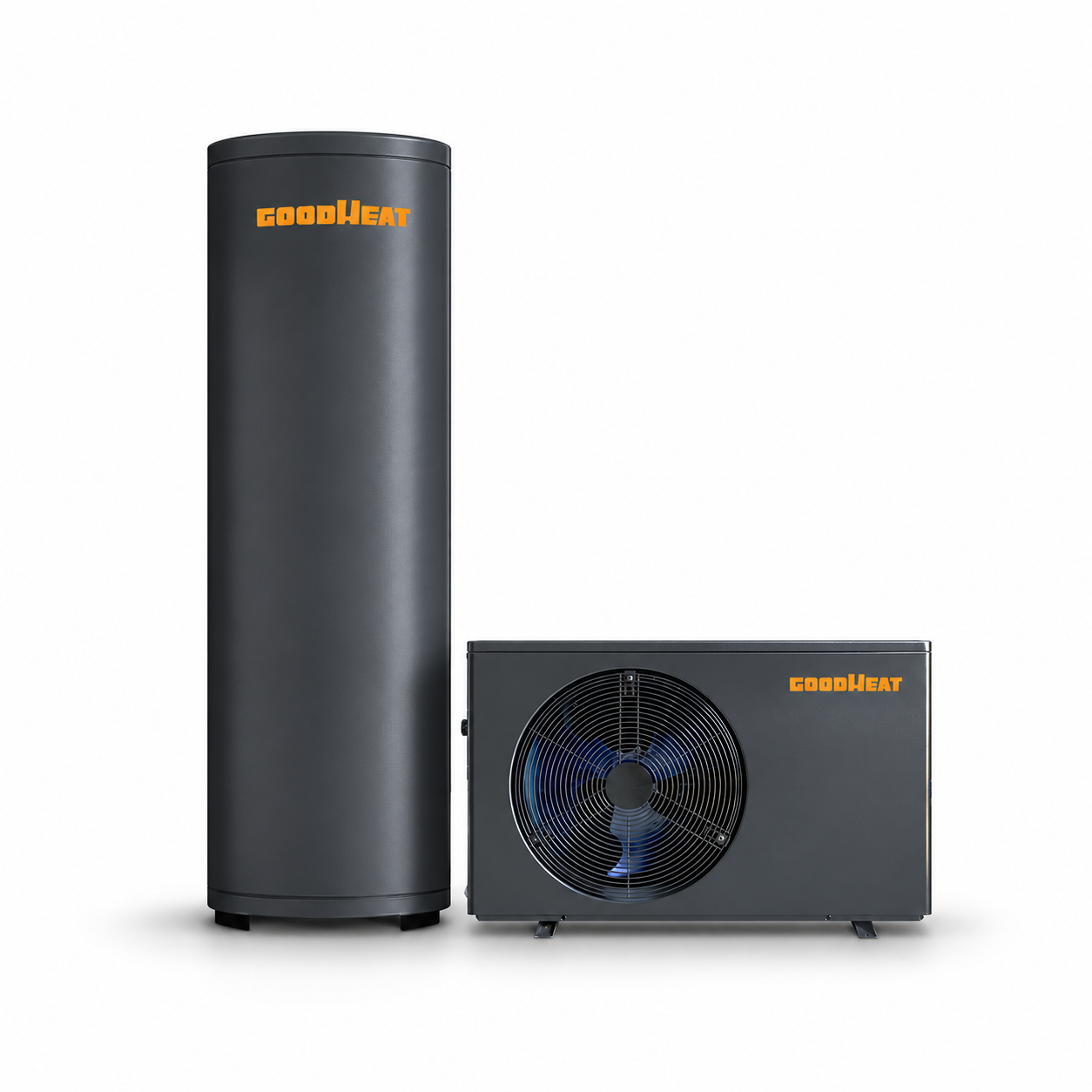

R410A Split-Type Heat Pump Water Heater

  • ​​​Water-cycle split system with a separate outdoor heat pump and storage tank.
  • Five main-unit models with rated heating capacities of 3.75–14 kW.*
  • Maximum water temperature: 55°C; declared ambient range: −15 to 46°C.
  • Suggested tank volumes vary by model, from 200 to 500 L.
  • Rotary compressor, shell-and-tube condenser and electronic expansion valve.
  • Controller and app functions documented in the supplied manual; confirm the ordered configuration.

*Rated at air DB/WB 20/15°C; water 15→55°C. Final configuration and operating envelope require confirmation.

Availability:
Inquire

Description
Specification
FAQ

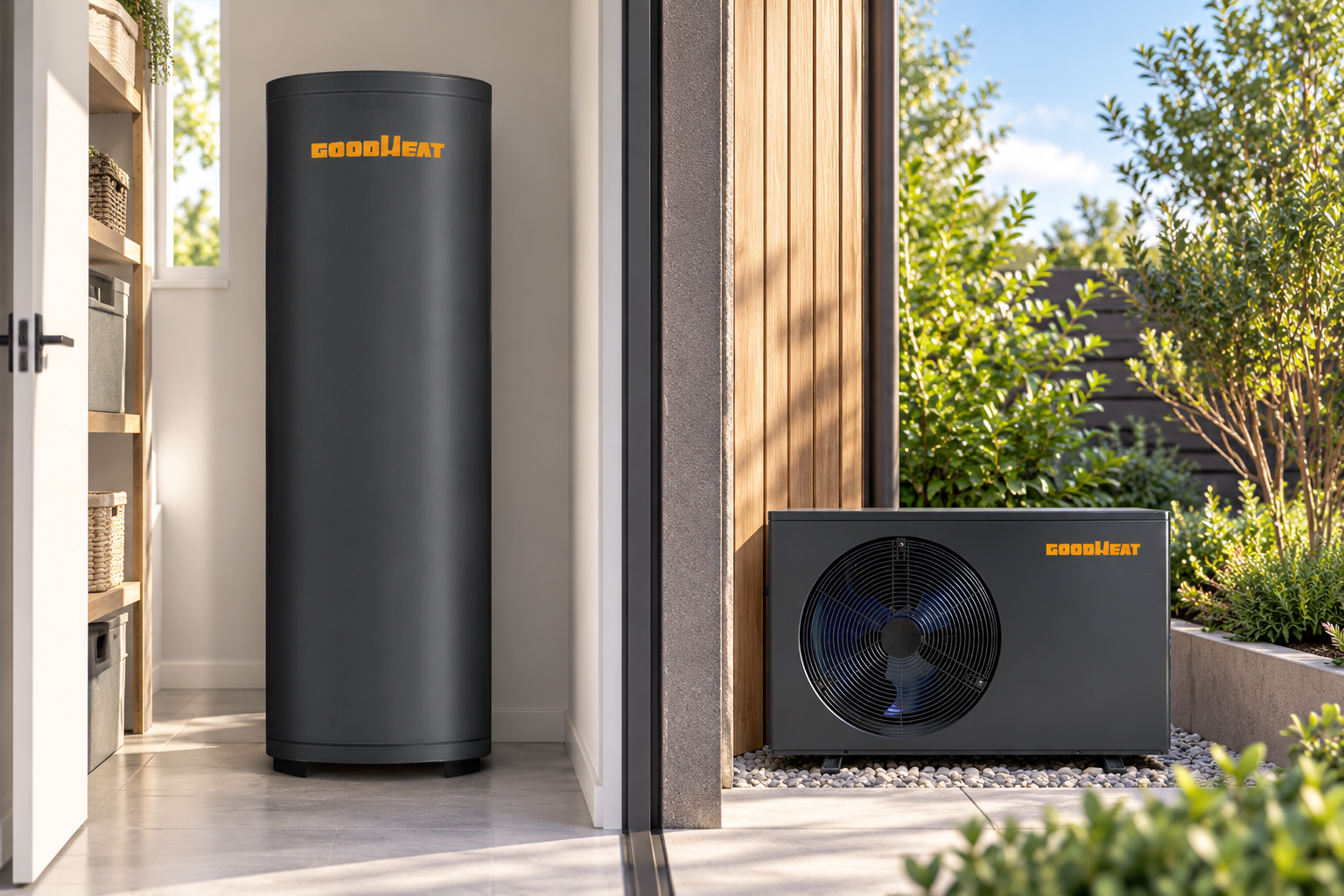

GOODHEAT R410A water-cycle split system with an indoor tank and outdoor heat pump

Separate locations.

One hot-water system.

Keep the storage tank indoors and position the main unit in a suitable ventilated outdoor location. Water circulation connects the heat pump and matching tank.

Outdoor heat pump and storage tank are separate components.

The specification lists a shell-and-tube condenser and water pump.

Plan connection routing and clearances with the installation manual.

Stored hot water.

Ready for daily routines.

The range lists a maximum water temperature of 55°C. Choose the tank and recovery capacity around household hot-water demand.

Rated hot-water production: 80–300 L/h at the stated test condition.

Rated performance: air DB/WB 20/15°C; water 15→55°C.

Actual recovery depends on ambient conditions and incoming-water temperature.

GOODHEAT separate hot-water tank in a home utility alcove beside a bathroom

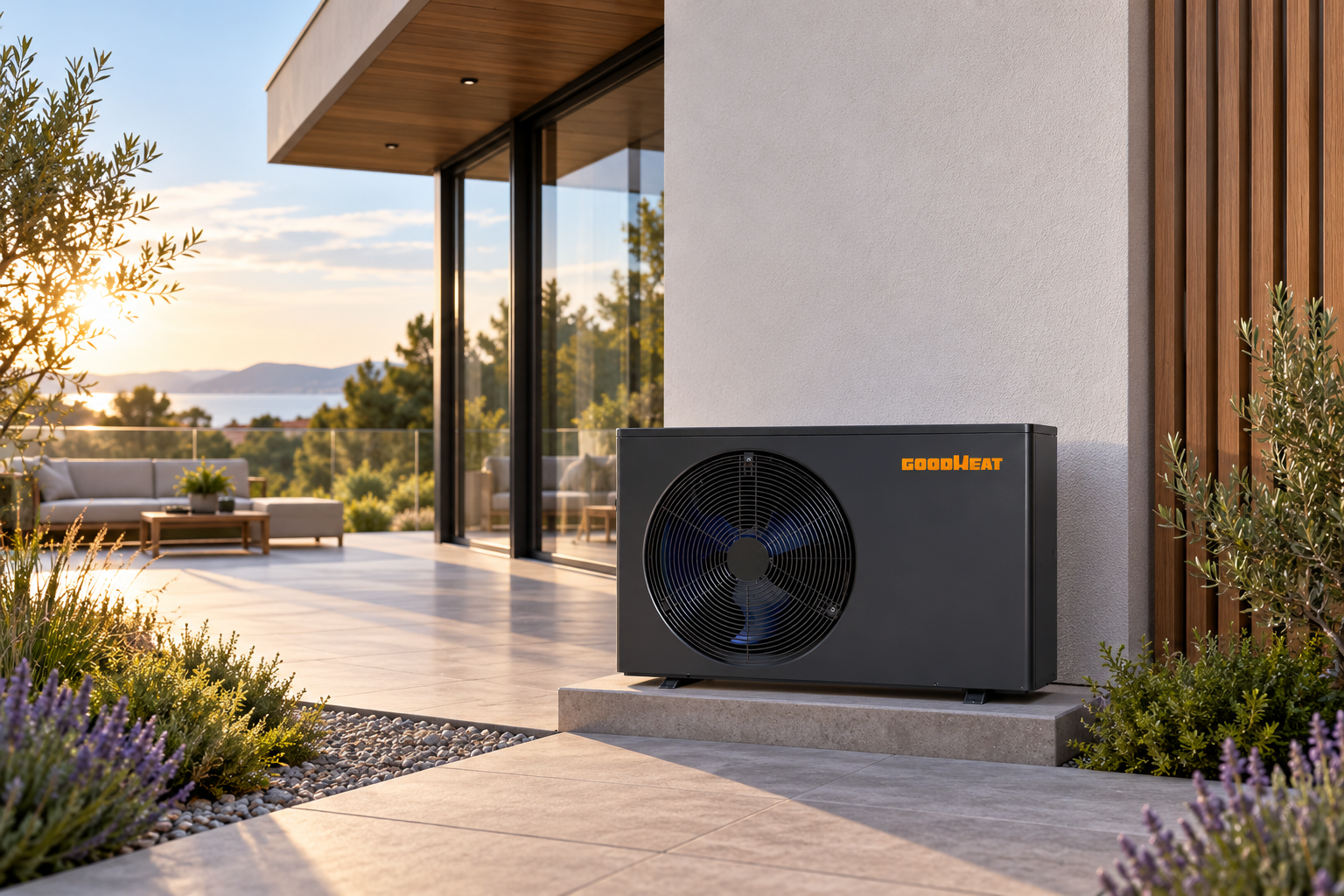

GOODHEAT R410A outdoor water-heating unit beside a residential terrace

Choose the capacity.

Match the demand.

Compare five outdoor-unit models by heating output, rated power input and recovery rate before selecting the storage tank.

Rated heating output: 3.75 / 5.30 / 6.80 / 10.60 / 14.00 kW.

Rated COP: 4.20–4.30 at the declared rating condition.

Point-rated COP is not a seasonal efficiency or energy-saving guarantee.

More ways to size

your hot-water storage.

The tank sheet lists 200, 300, 400 and 500 L enamel storage options. The main-unit sheet separately gives suggested tank volumes for each model.

50 mm tank insulation is listed in the supplied sheet.

Tank operating pressure: 0.8 MPa.

Compare tank diameter, height and filled weight before installation.

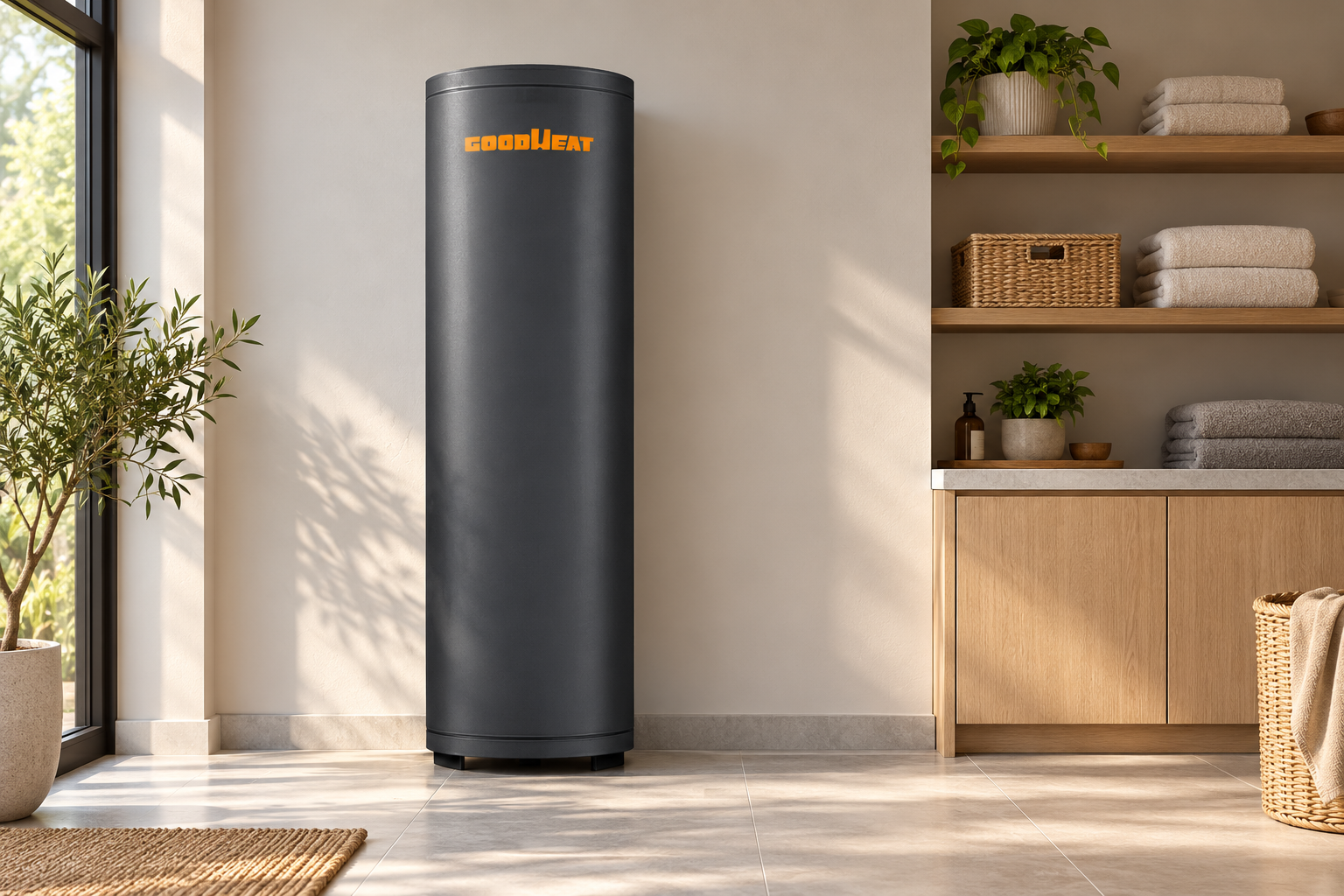

Slim GOODHEAT separate hot-water storage tank in a tidy utility room

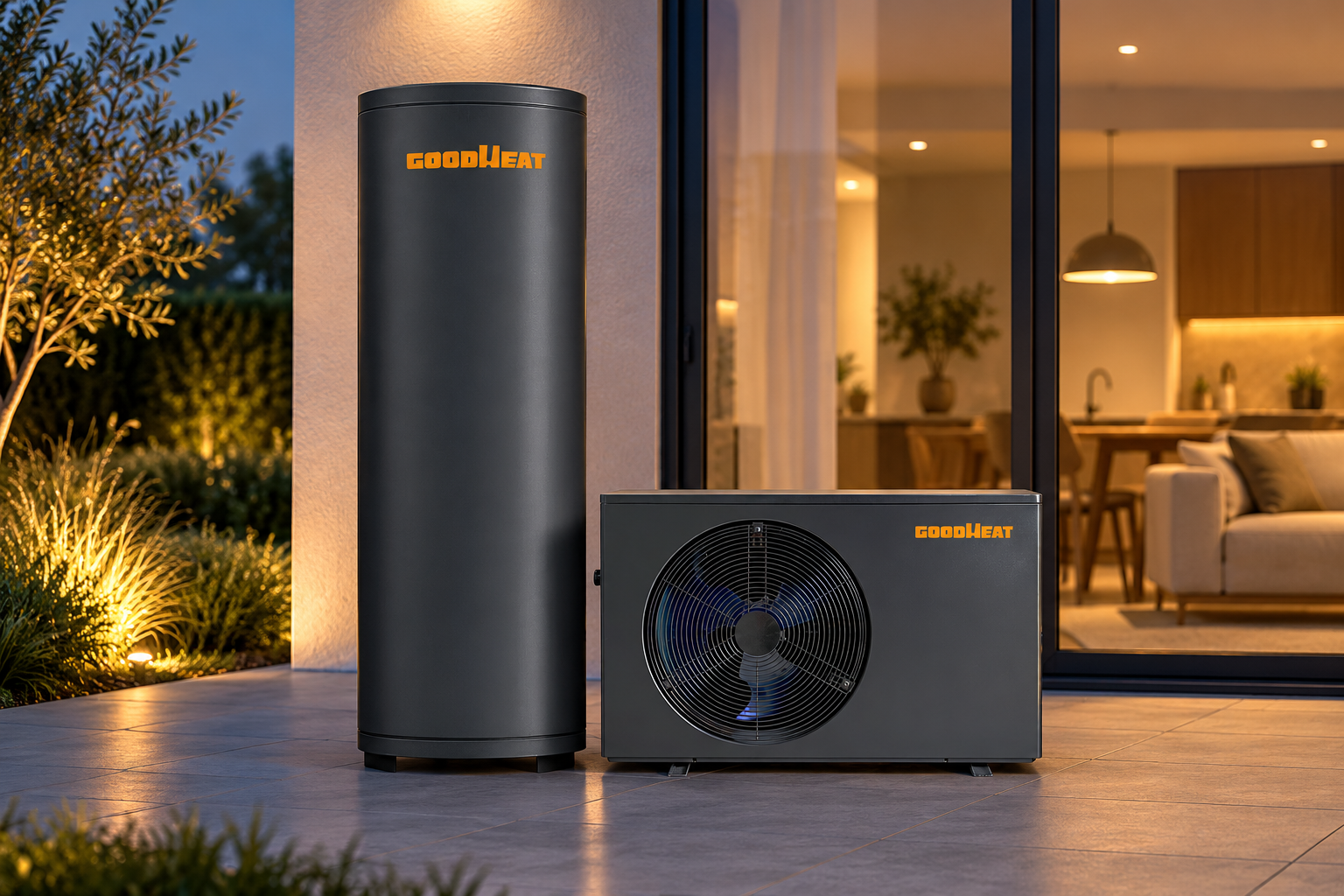

GOODHEAT R410A heat pump water heater in a quiet residential outdoor setting

Set the temperature.

Manage daily operation.

The supplied manual documents controller operation and app functions. Confirm the controller and connectivity included with the selected order.

Temperature and operating-status information in the controller guide.

App functions include device sharing in the supplied manual.

Access to filters, electrical parts and water connections supports routine servicing.

Related Products

Find the right heat pump and tank pairing.

Share your hot-water demand, incoming-water temperature and available space.

Compare output.

Check the complete system.

Outdoor-unit performance and tank data are shown separately for easier selection.
Indoor Unit 200~300L 200~300L 300~500L 500L
Outdoor Unit 3.6kW 5.5kW 10.5kW 14kW
Model GHWSHS-3.6DA1 GHWSHS-5.5DA1 GHWSHS-10.5DA1 GHWSHS-14DA1
General Specifications
AC Power Supply (V / Ph / Hz) 220~240 / 1 / 50 220~240 / 1 / 50 220~240 / 1 / 50 220~240 / 1 / 50
Operating Ambient Temperature (°C) −15~46
Maximum Leaving-Water Temperature (°C) 55
Heating Performance · Air DB 20 °C, WB 15 °C / Water inlet 15 °C, outlet 55 °C
Heating Capacity (W) 3750 5300 10600 14000
Rated Power Input (W) 882 1232 2524 3325
Rated Current Input (A) 4.05 5.66 11.59 14.60
Maximum Power Input (W) (Heat Pump + Backup) 1450+2000 1920+2000 4400+4000 4650+4000
Maximum Current Input (W) (Heat Pump + Backup) 7.22+9.08 10.50+9.10 24.05+18.25 26.85+18.15
Coefficient of Performance (COP) 4.25 4.30 4.20 4.21
Hot-water Yield (L/h) 80 114 228 300
Electrical & Refrigerant Specifications
Refrigerant Type / Charge R410A / 0.86 kg R410A / 0.90 kg R410A / 1.40 kg R410A / 1.75 kg
Max. Refrigerant-side Allowable Pressure (MPa) 4.40 4.40 4.40 4.40
Electrical Protection Class Class I
Water Proof Level IPX4
Water Connection G1/2 G1/2 G3/4 G3/4
Acoustic Data
Noise Level [dB(A)] 54 54 55 55
Dimensions & Shipping
Net Weight (kg) 50 57 65 70
Gross Weight (kg) 55 62 90 95
Unit Dimensions (mm) 947×370×565 1078×390×705
Packaging Dimensions (mm) 1002×414×591 1130×436×850

*The 10.6 kW model refrigerant charge is awaiting confirmation because the source unit appears inconsistent. Missing source values are shown as “Not specified”. The 6.8 kW main-unit weight is listed as a single 65 kg value; a separate gross weight is not given.


Main-unit maximum input and auxiliary heater figures are listed separately in the workbook; confirm total circuit requirements from the final nameplate. Noise values do not specify measurement distance, mode or sound pressure versus sound power. Maximum water temperature and minimum ambient temperature are separate limits, not a combined performance guarantee.

Find the right heat pump and tank pairing.

Share your hot-water demand, incoming-water temperature and available space.

Find the right heat pump and tank pairing.

Share your hot-water demand, incoming-water temperature and available space.

Plan the system.

Confirm the details.

Is this a refrigerant-cycle split system?

No. The supplied documents identify a water-cycle split system. The main unit includes a condenser and water pump; the selected tank is linked by the water circuit.

Which tank should I select?

Does 300 L/h mean instantaneous tap flow?

Can every model reach 55°C at −15°C ambient?

Is PV direct drive or inverter operation included?

Is app control standard on every model?

What should be checked before installation?
