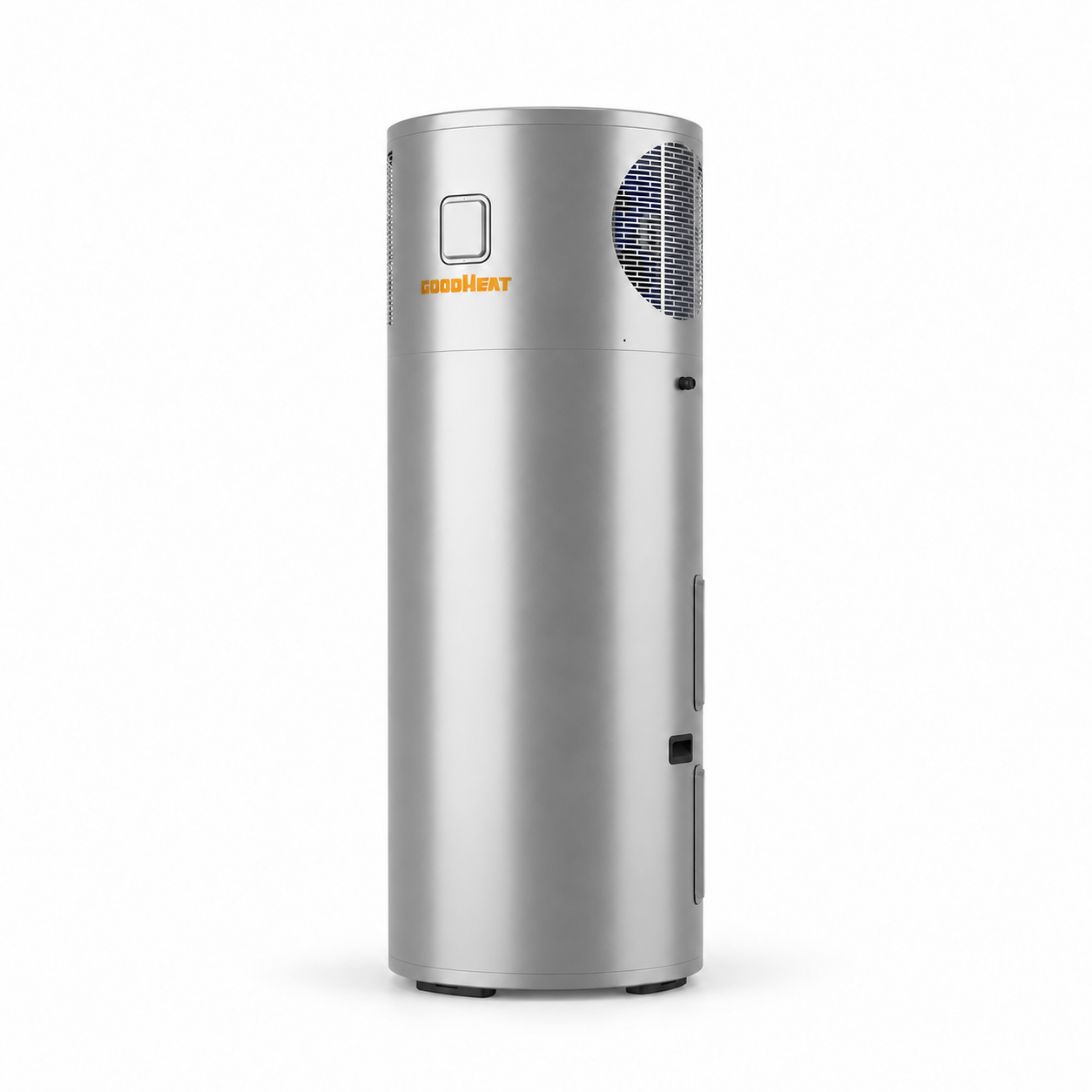

R134a Side Discharge All-in-One Heat Pump Water Heater

  • ​​​R134a all-in-one heat pump water heater with integrated storage.
  • Three tank options: 200 / 250 / 300 L.
  • Rated heating capacity: 2.4 kW; rated COP: 4.06.*
  • Horizontal side discharge with a non-ducted design.
  • Default water setting: 55°C; up to 75°C with electric assistance.
  • Controller guide includes weekly scheduling and Smart Life Wi-Fi setup; confirm the supplied configuration.

*At air DB/WB 20/15°C; water 15→55°C. Maximum temperature requires electric assistance.

Availability:
Inquire

Description
Specification
FAQ

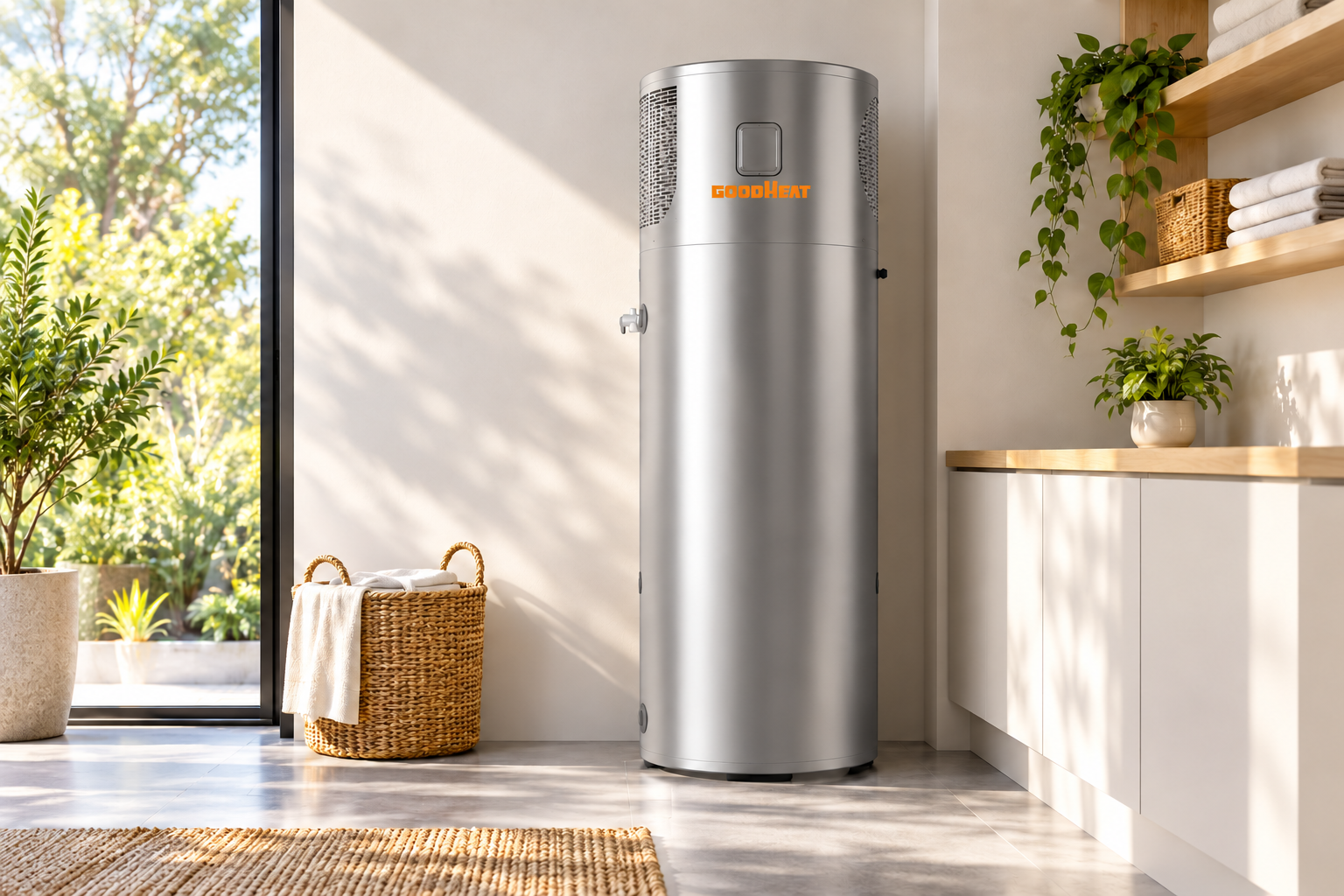

GOODHEAT R134a all-in-one water heater in a ventilated utility room

Heat pump and storage.

One integrated cylinder.

An integrated heat pump and tank bring domestic hot-water heating into one floor-standing unit. Choose a suitable ventilated installation space around the side air openings.

R134a refrigerant and metal outer casing.

No separate outdoor heat pump is shown for this all-in-one design.

Plan floor loading, airflow and service access before installation.

Choose the storage

for your daily routine.

The specification lists 200, 250 and 300 L tanks. All three share the same rated heating capacity, so compare stored volume and available installation height together.

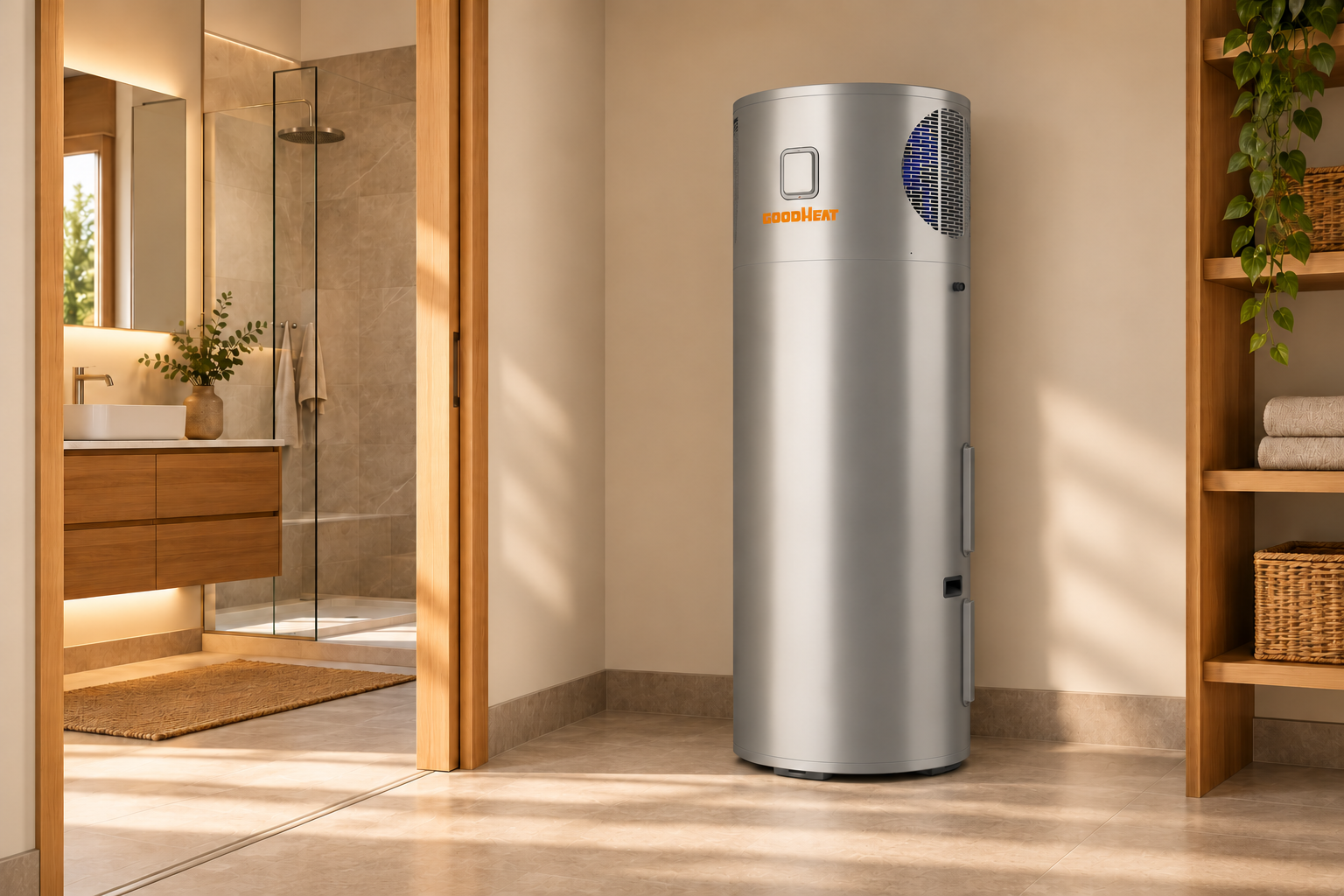

GOODHEAT integrated hot-water cylinder beside a home bathroom

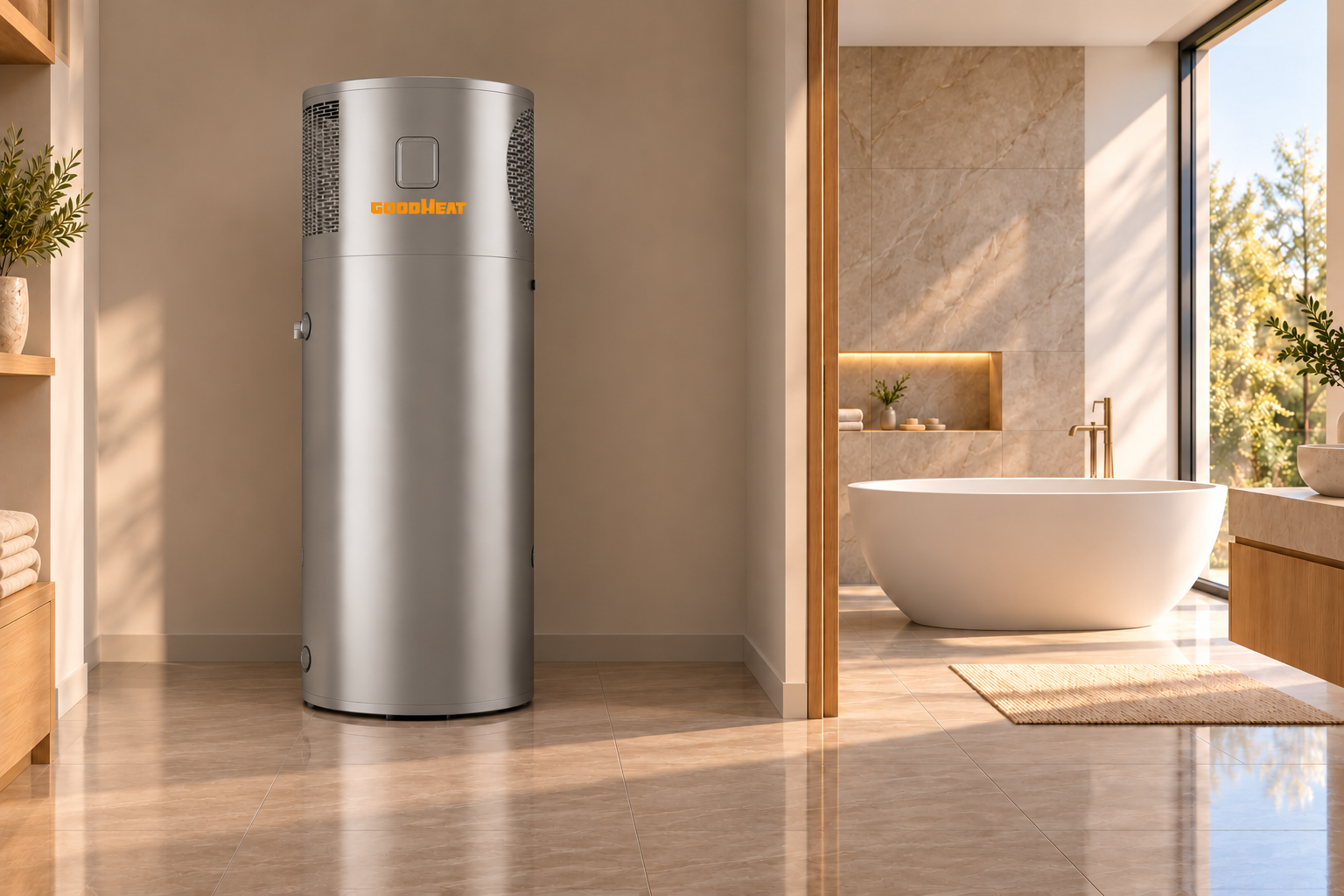

GOODHEAT R134a heat pump water heater serving a contemporary bathroom

Everyday hot water.

Extra temperature when needed.

The default water setting is 55°C. The supplied manual assigns the higher temperature region up to 75°C to electric heating, so the maximum is a system capability with assistance.

Rated heating capacity: 2.4 kW at air DB/WB 20/15°C; water 15→55°C.

Rated heating input: 0.59 kW; COP: 4.06 at that condition.

A 2.0 kW auxiliary electric heater is listed separately.

Side airflow.

A non-ducted layout.

The listed air discharge direction is horizontal and the product is specified as non-ducted. Keep the side openings clear and provide the room ventilation required by the approved installation guide.

Listed airflow: 450 m³/h.

Microchannel heat exchanger and electronic expansion valve.

Four-way-valve defrost is listed in the specification.

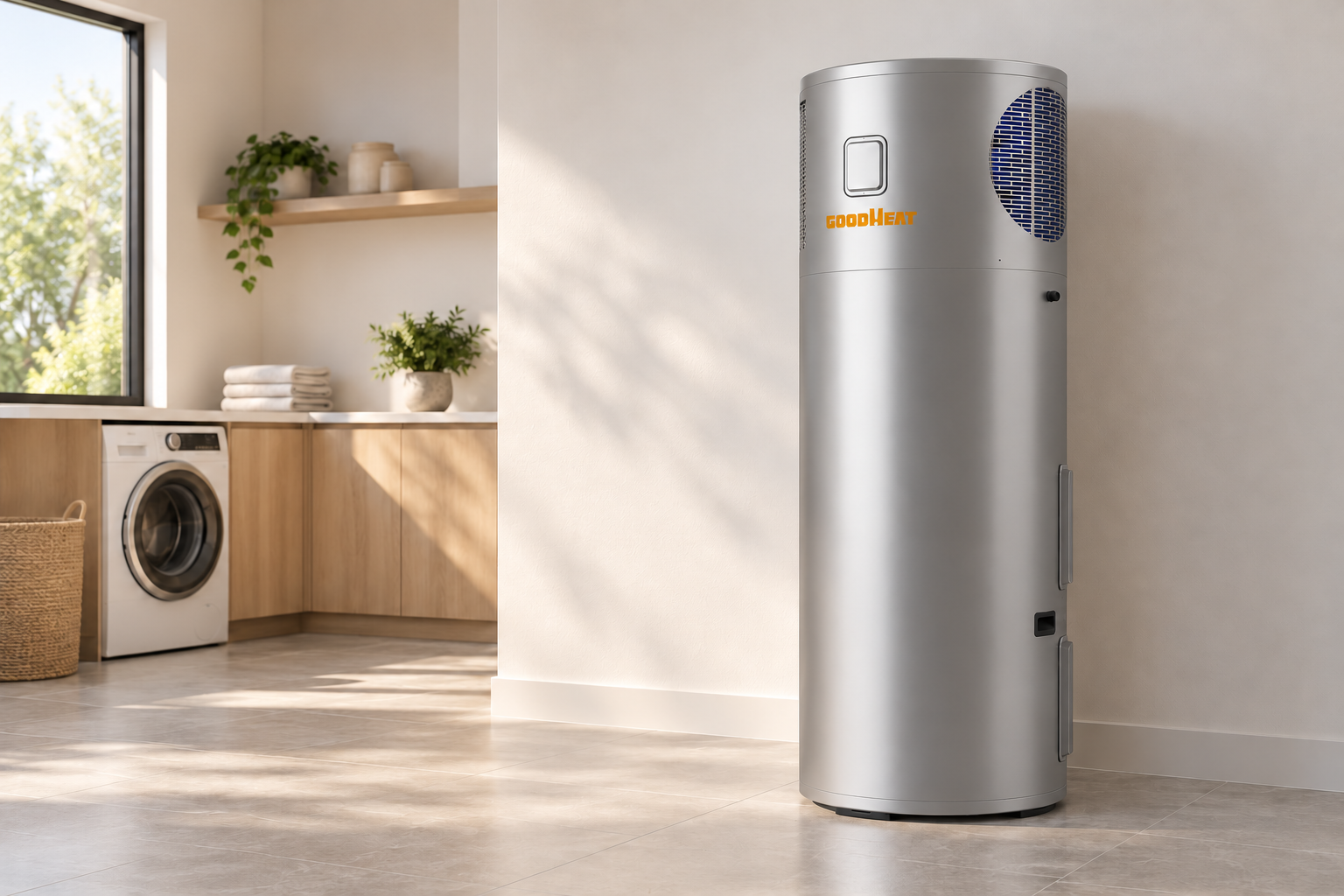

Side ventilation grille on a GOODHEAT R134a water heater in a laundry room

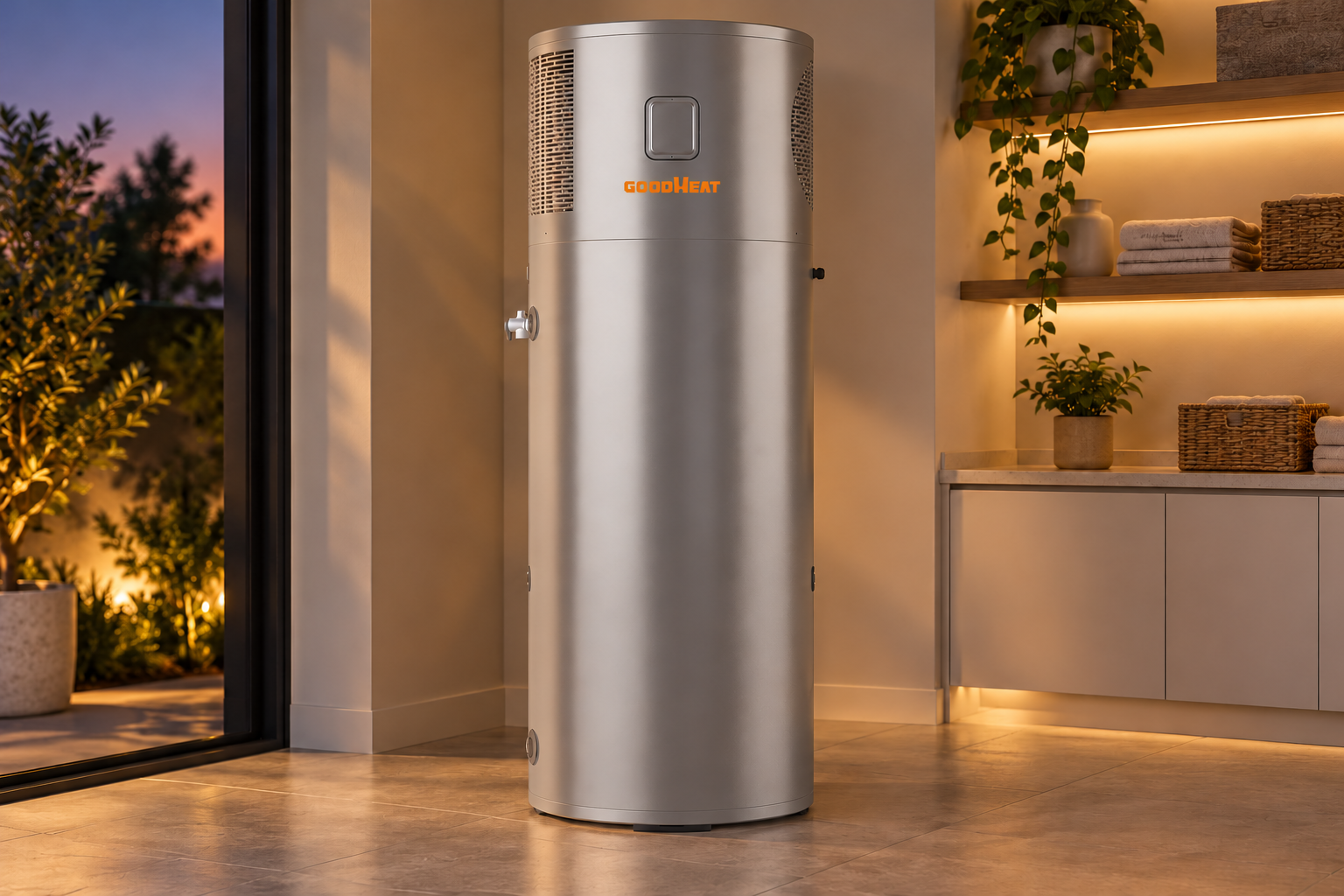

Front controller on a GOODHEAT R134a all-in-one heat pump water heater

Set the temperature.

Plan your hot water.

The supplied controller guide documents temperature adjustment, weekly on/off timing and operating-status queries. Its Wi-Fi section explains Smart Life pairing.

Weekly scheduling from Monday to Sunday is documented.

Temperature, operating status and fault information in the guide.

Confirm the controller and Wi-Fi configuration for the ordered model.

Related Products

Choose the right storage for your space.

Tell us your demand, room conditions and available installation height.

Compare the size.

Check the configuration.

Capacity classes across the top; model identifiers, parameter names and units down the left.

Performance and physical data below are published for Standard Series. Request the exact P-coded PV model datasheet for its performance, electrical supply and dimensions. Scroll horizontally to compare sizes.
Volume 200L 250L 300L
Model GHWSHTE-200CA1 GHWSHTE-250CA1 GHWSHTE-300CA1
General Specifications
AC Power Supply (V / Ph / Hz) 220~240 / 1 / 50
Operating Ambient Temperature (°C) -7~46
Default Leaving-Water Temperature (°C) 55
Maximum Leaving-Water Temperature (°C) 75
Heating Performance · Air DB 20 °C, WB 15 °C / Water inlet 15 °C, outlet 55 °C
Heating Capacity (kW) 2.40 2.40 2.40
Rated Power Input (kW) 0.59 0.59 0.59
Coefficient of Performance (COP) 4.06 4.06 4.06
Maximum Current Input (A) 16.00 16.00 16.00
Auxiliary Electric Heater Rated Power (kW) 2.00 2.00 2.00
Auxiliary Electric Heater Rated Current (A) 9.30 9.30 9.30
Electrical & Refrigerant Specifications
Heat Exchanger Microchannel
Defrosting Method Reverse-cycle · 4-way valve
Water Proof Level IPX4
Max Water Tank Pressure (MPa) 0.8
Declared Air Flow (m³/h) 450
Acoustic Data
Noise Level [dB(A)] 47
Dimensions & Shipping
Net Weight (kg) 107 130 130
Gross Weight (kg) 128 150 150
Unit Dimensions (mm) Ø650×1550 Ø650×1780 Ø650×1960
Packaging Dimensions (mm) 720×720×1710 720×720×1930 720×720×2120

The workbook lists 47 dB(A); the manual technical table lists 45 dB(A). This page retains the workbook value. Neither table supplies a measurement distance or a sound-power/sound-pressure definition for that figure.


75°C is a maximum system temperature with electric assistance. The manual working-limit chart assigns temperatures above 55°C to the electric heater. Do not interpret the 2.4 kW heating rating as output at 75°C. Maximum current and auxiliary-heater current are not values to add for circuit sizing; use the final nameplate and approved wiring data.

Choose the right storage for your space.

Tell us your demand, room conditions and available installation height.

Check the location.

Confirm the configuration.

Is this a split system?

No. The supplied product is an integrated heat pump water heater with a built-in tank, not a separate outdoor heat pump and storage cylinder.

Can the heat pump alone reach 75°C?

Is it an inverter heating and cooling product?

Can I connect air ducts?

Does the unit provide air conditioning?

Can I use Smart Life?

Which sound figure is used?

What information helps select the tank?
