R32 Split-Type Heat Pump Water Heater

  • R32 refrigerant-cycle split system with a separate outdoor unit and storage tank.
  • 100 / 150 / 200 / 300 L storage options; installation type varies by tank.
  • 2.8 / 3.4 / 5.0 kW rated heating capacity at air 20/15°C, water 15→55°C.
  • Up to 75°C maximum system water temperature.*
  • Silent, Standard and Powerful modes in the supplied controller guide.
  • Smart Life Wi-Fi functions documented in the English manual.

*Confirm heating mode and operating envelope. Maximum system temperature includes configuration-dependent operation.

Availability:
Inquire

Description
Specification
FAQ

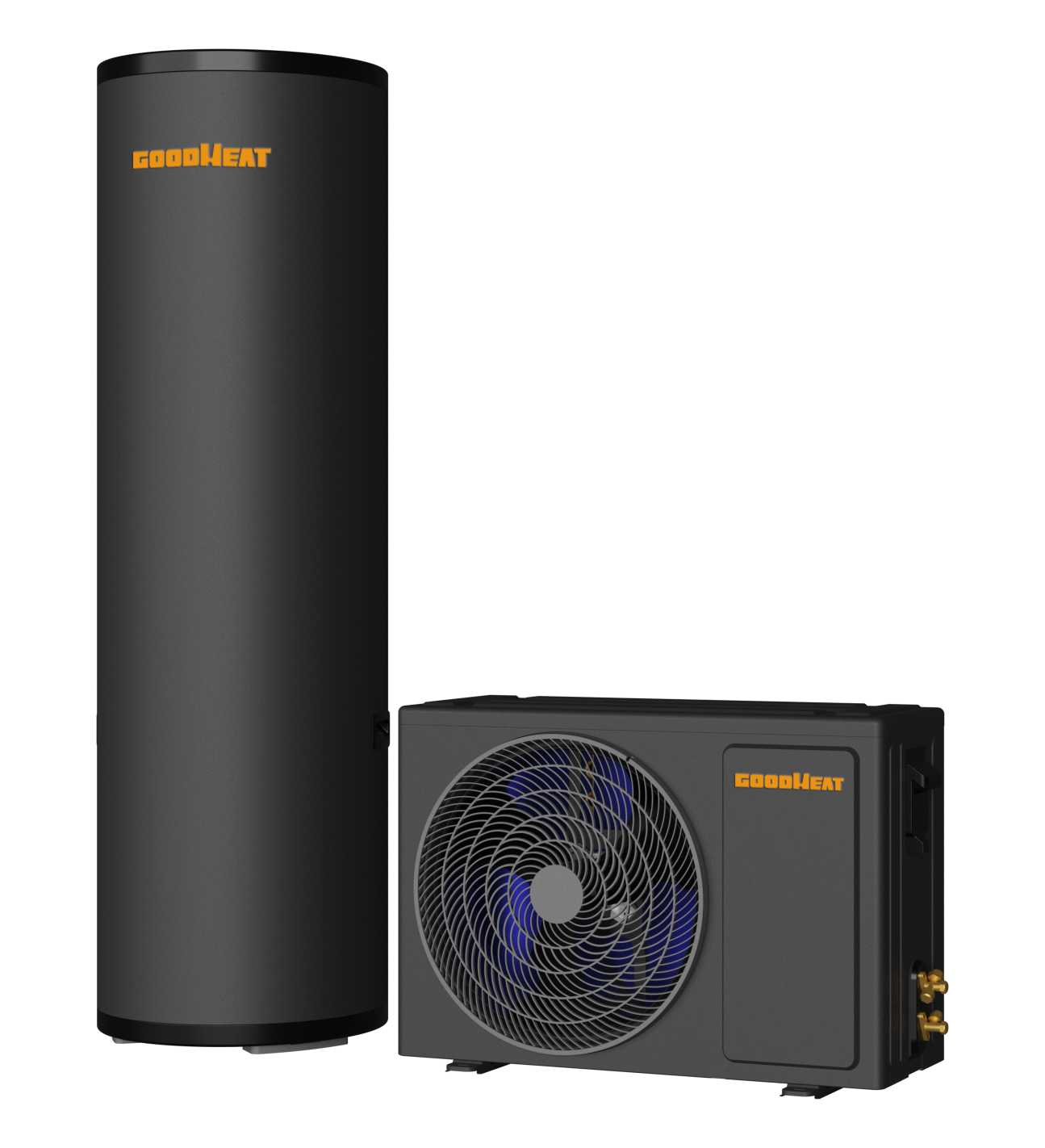

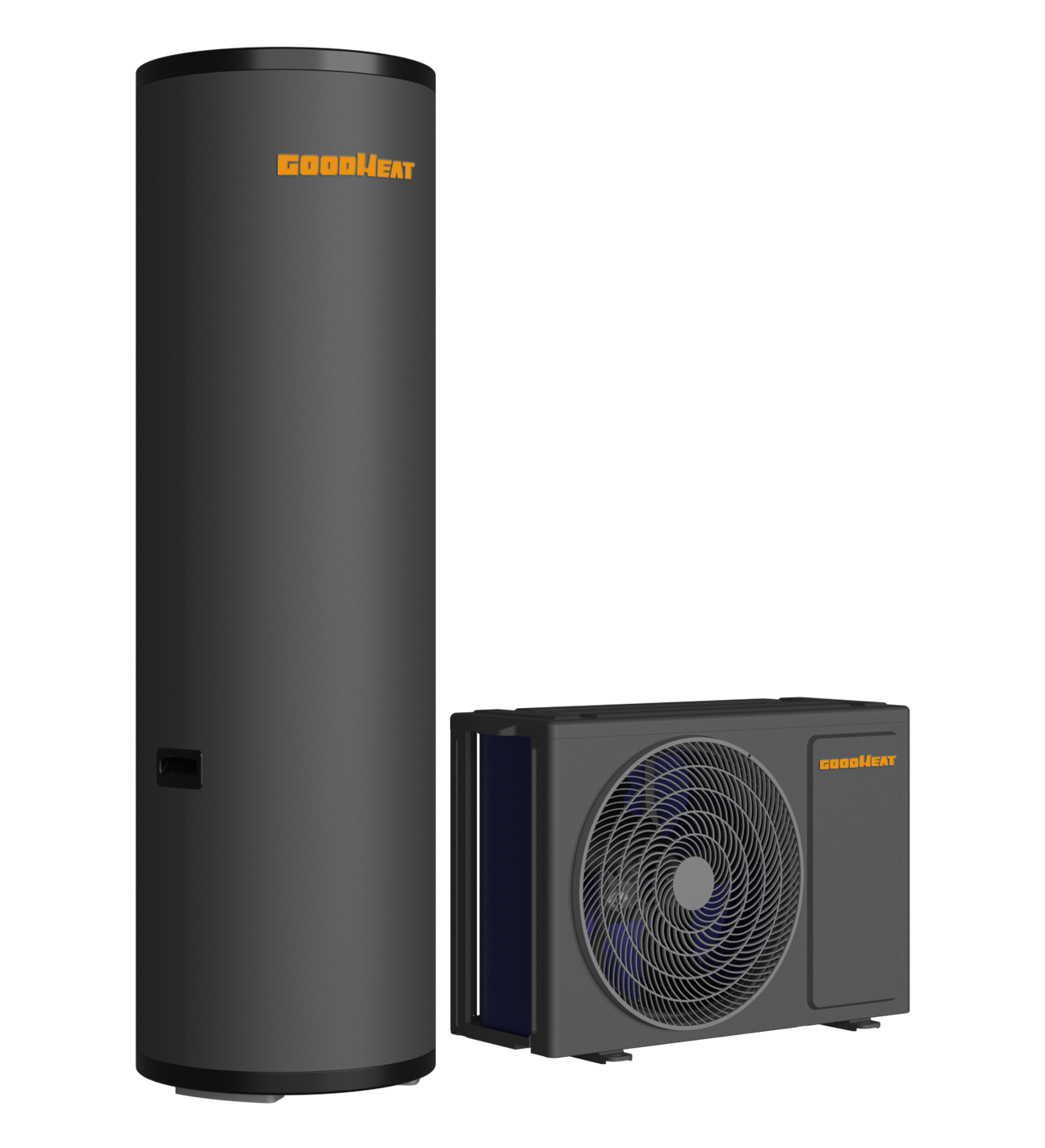

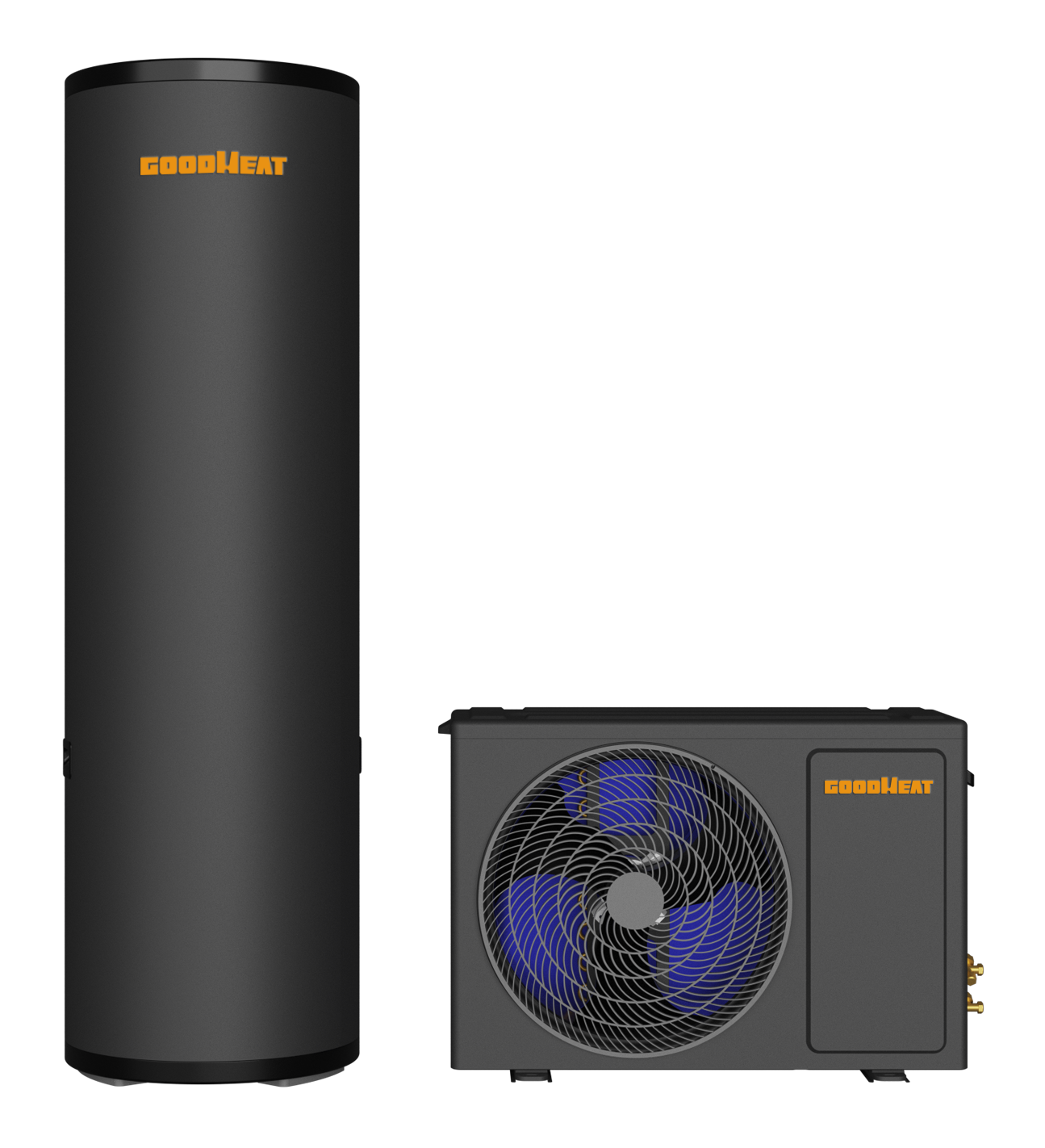

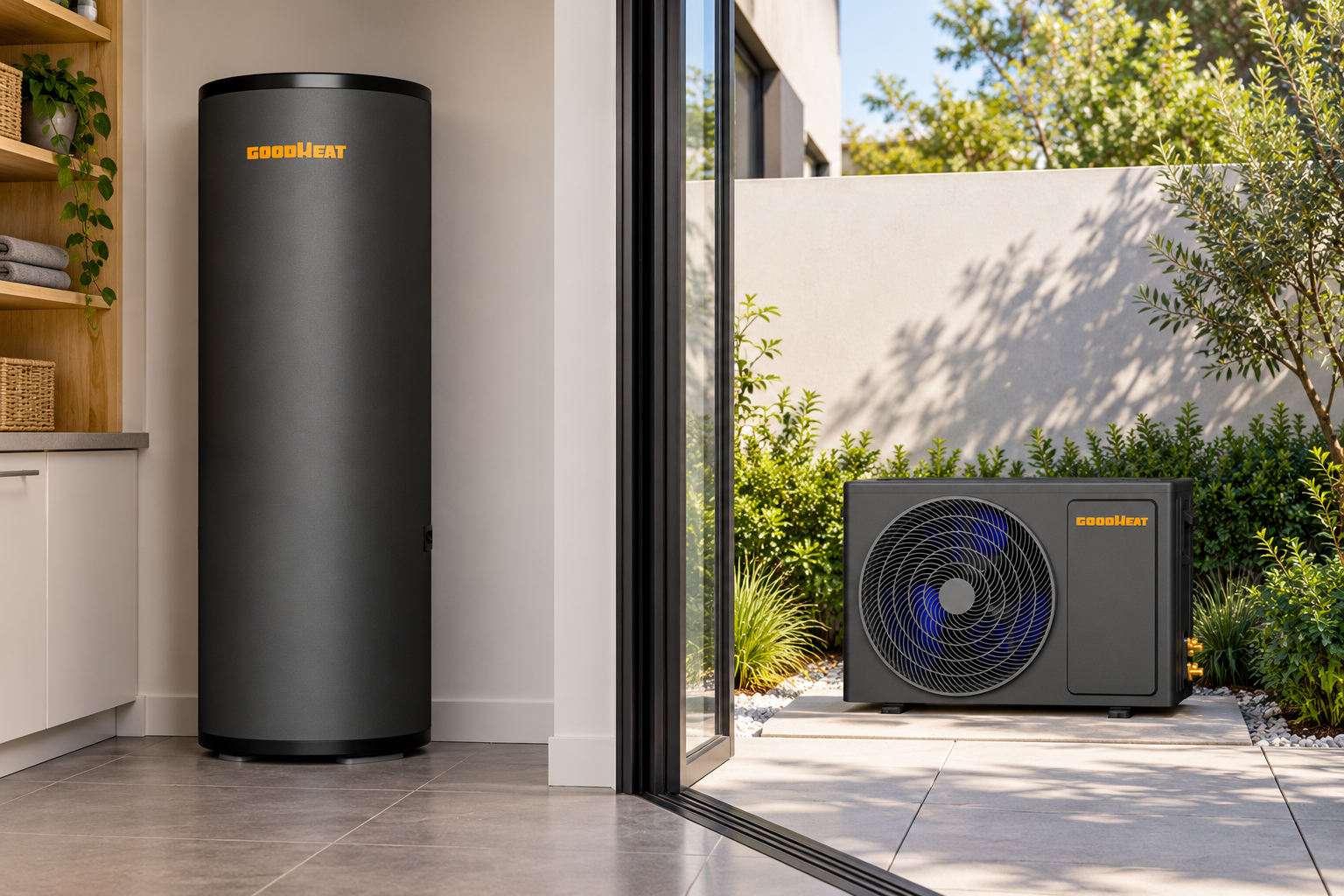

GOODHEAT R32 split water heater with an indoor storage tank and outdoor heat pump

One hot-water system.

Two separate units.

A refrigerant-cycle split layout combines a compact outdoor heat pump with a separate storage tank. Plan the two locations around the building and daily hot-water use.

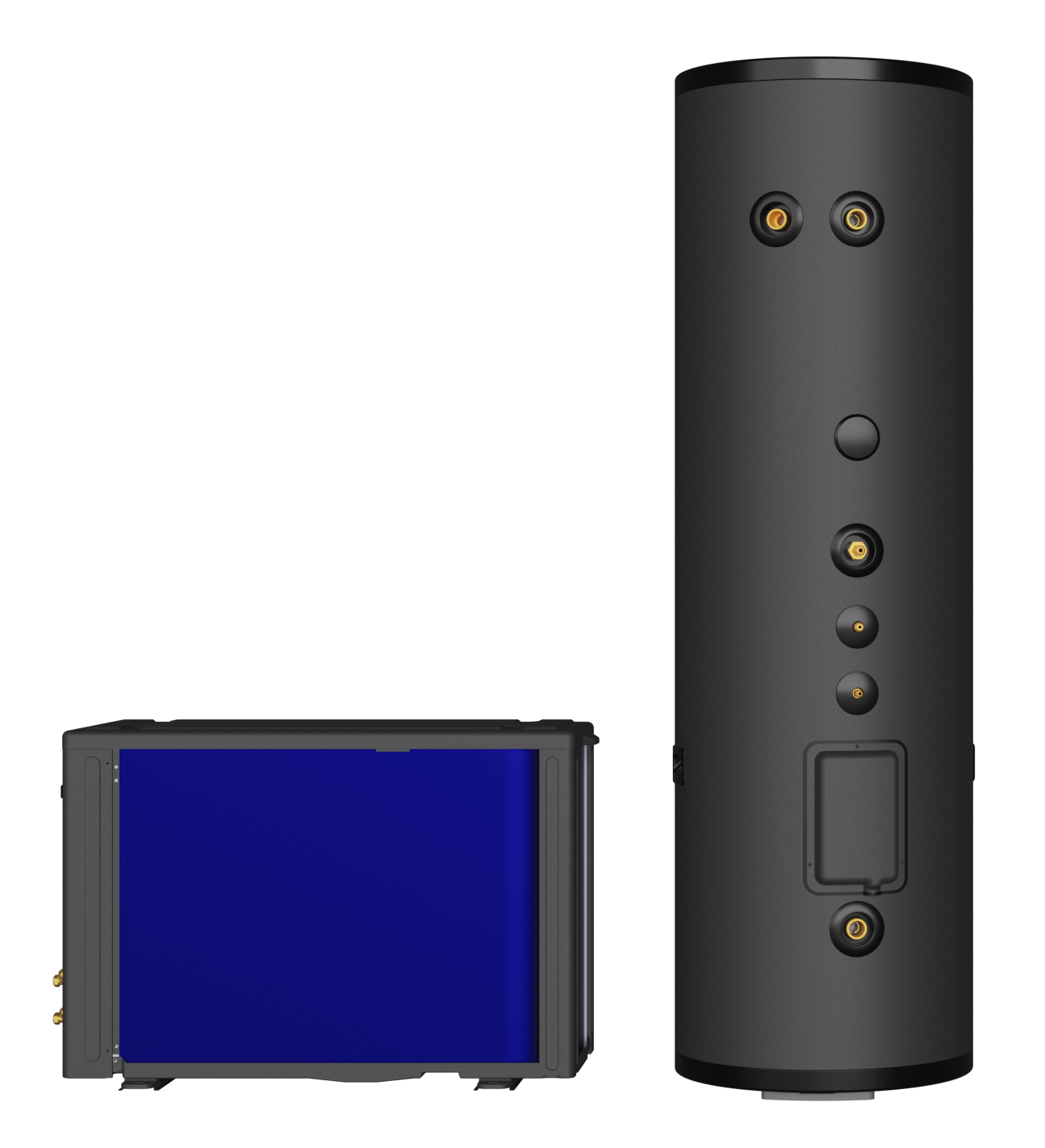

Refrigerant connections link the main unit to the matching tank.

 Outdoor main-unit dimensions: 796 × 348 × 558 mm.

 Tank placement and line routing follow the selected installation manual.

Hot water for the way you live.

The specification lists a maximum system water temperature of 75°C. Rated heating performance is stated separately for water heated from 15 to 55°C.

R32 refrigerant across the listed configurations.

 Backup electric-heater input is identified separately in the sheet.

 Confirm the operating mode and ambient envelope for higher water temperatures.

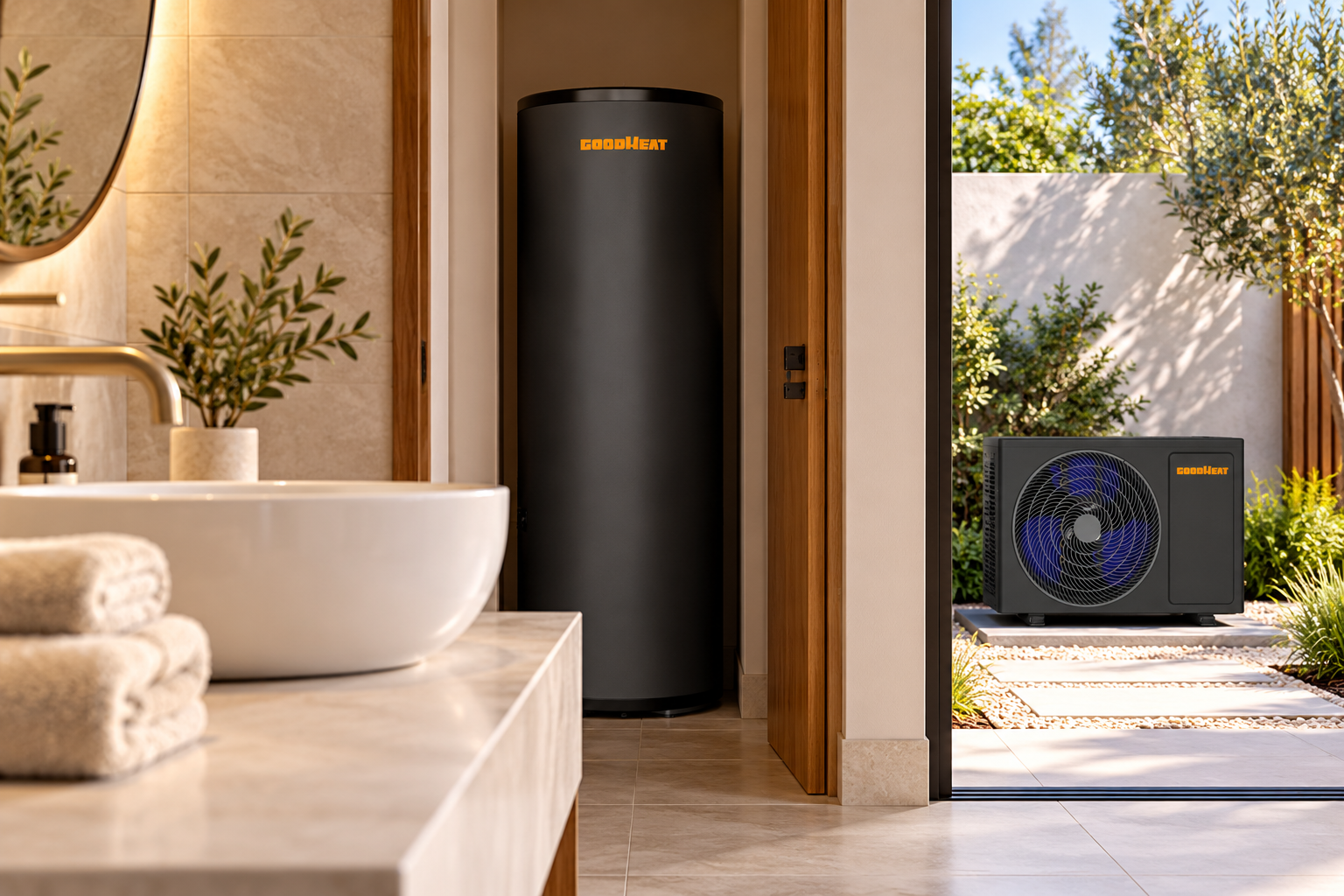

GOODHEAT R32 split heat pump water heater serving a modern home bathroom

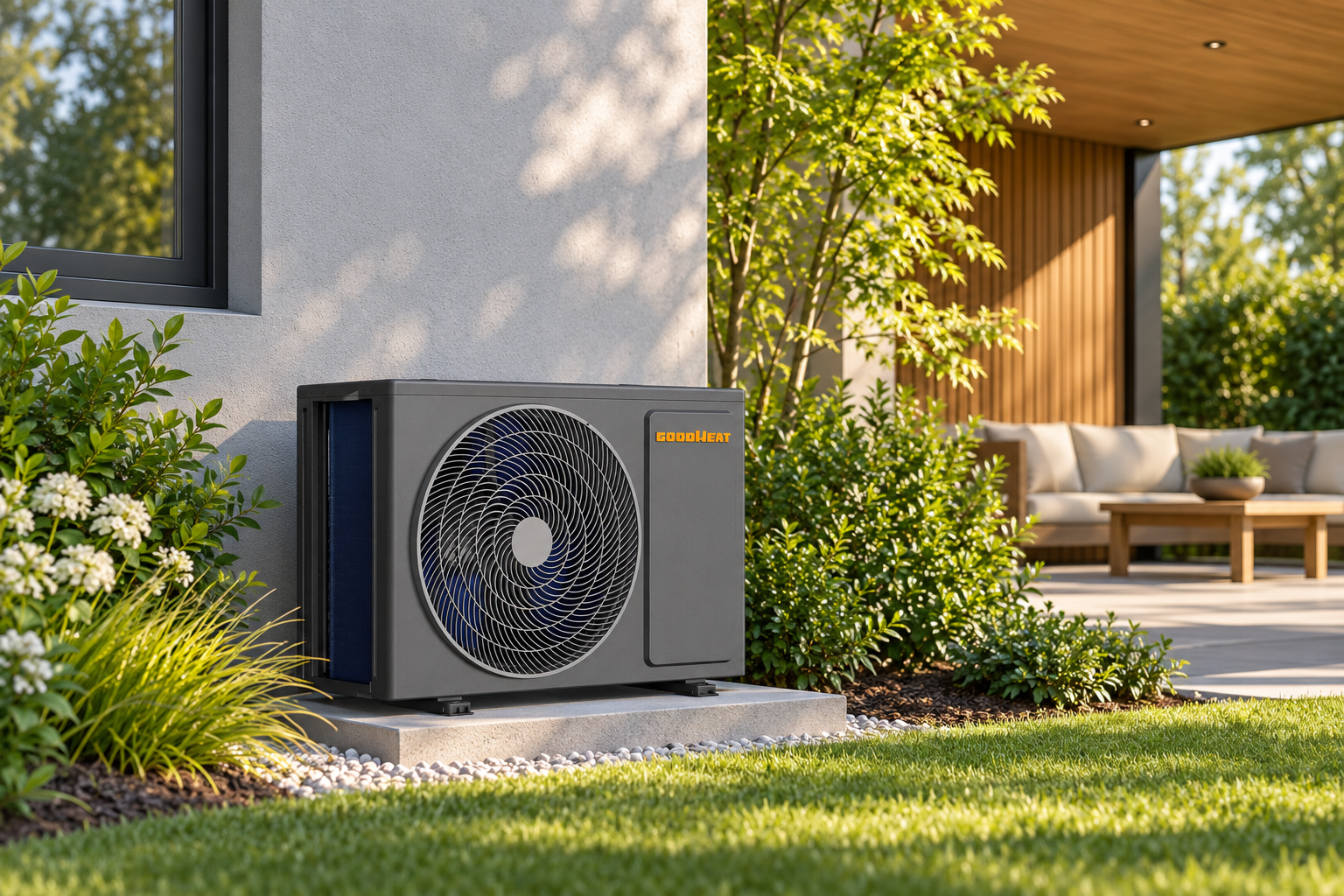

GOODHEAT R32 inverter outdoor unit beside a residential patio

Choose the mode.

Match the moment.

The supplied inverter manual documents Silent, Standard and Powerful modes. Select the operating mode around your hot-water schedule and household priorities.

Rated COP values: 4.30–4.36 at the stated standard condition.

 The guide includes compressor frequency and fan-speed status queries.

 Point-rated COP is not a seasonal saving or a Silent-mode sound guarantee.

Choose the volume.

Then choose the tank.

The current sheet lists 100, 150, 200 and 300 L storage. Duplex 2101 tanks are listed across the range, with enamel alternatives for floor-standing 150, 200 and 300 L configurations.

100 L and a separate 150 L version: wall-mounted tanks.

 Floor-standing tanks: 150 / 200 / 300 L.

 Maximum tank water pressure: 0.8 MPa; tank dimensions vary by material.

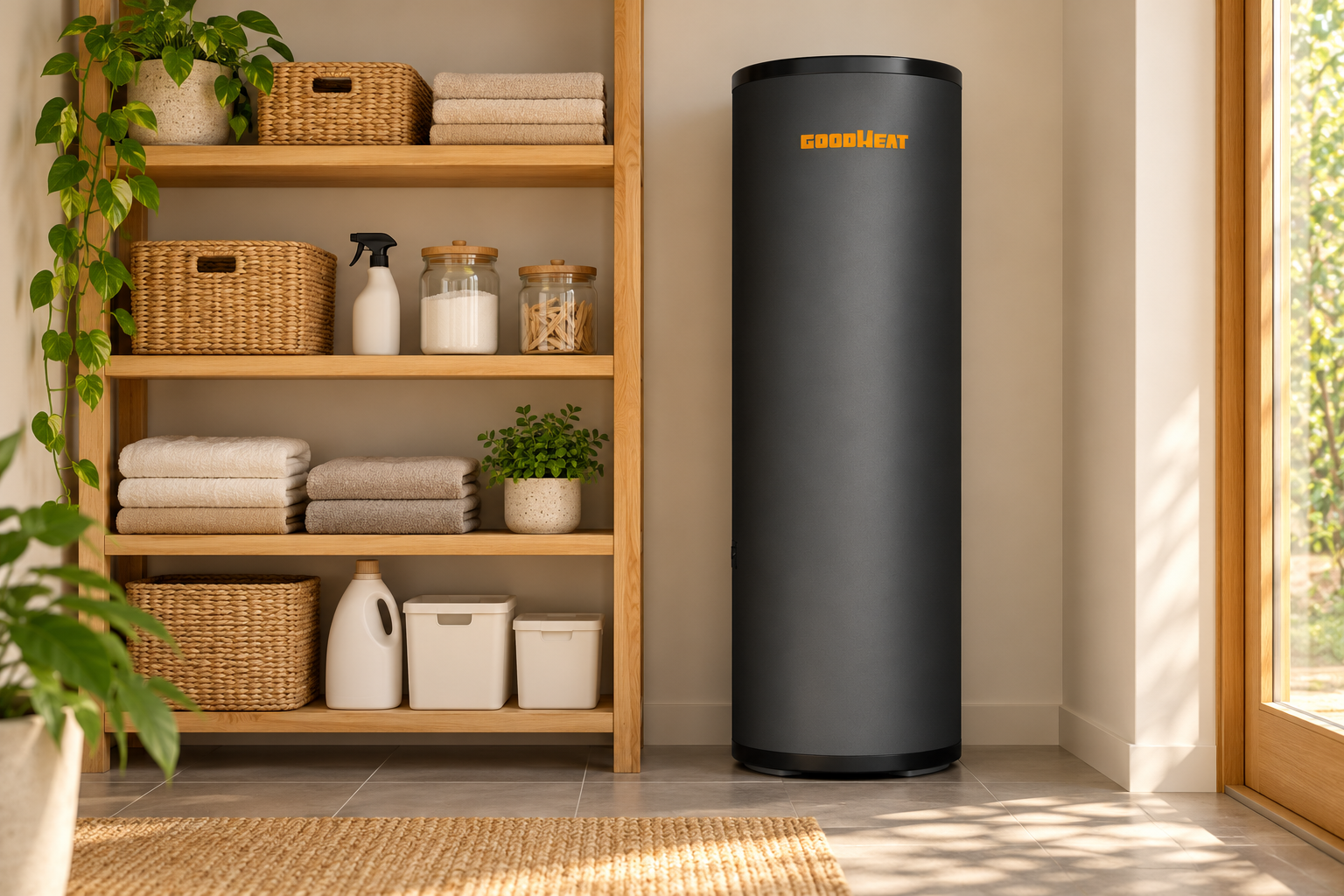

GOODHEAT hot-water storage tank in a home utility room

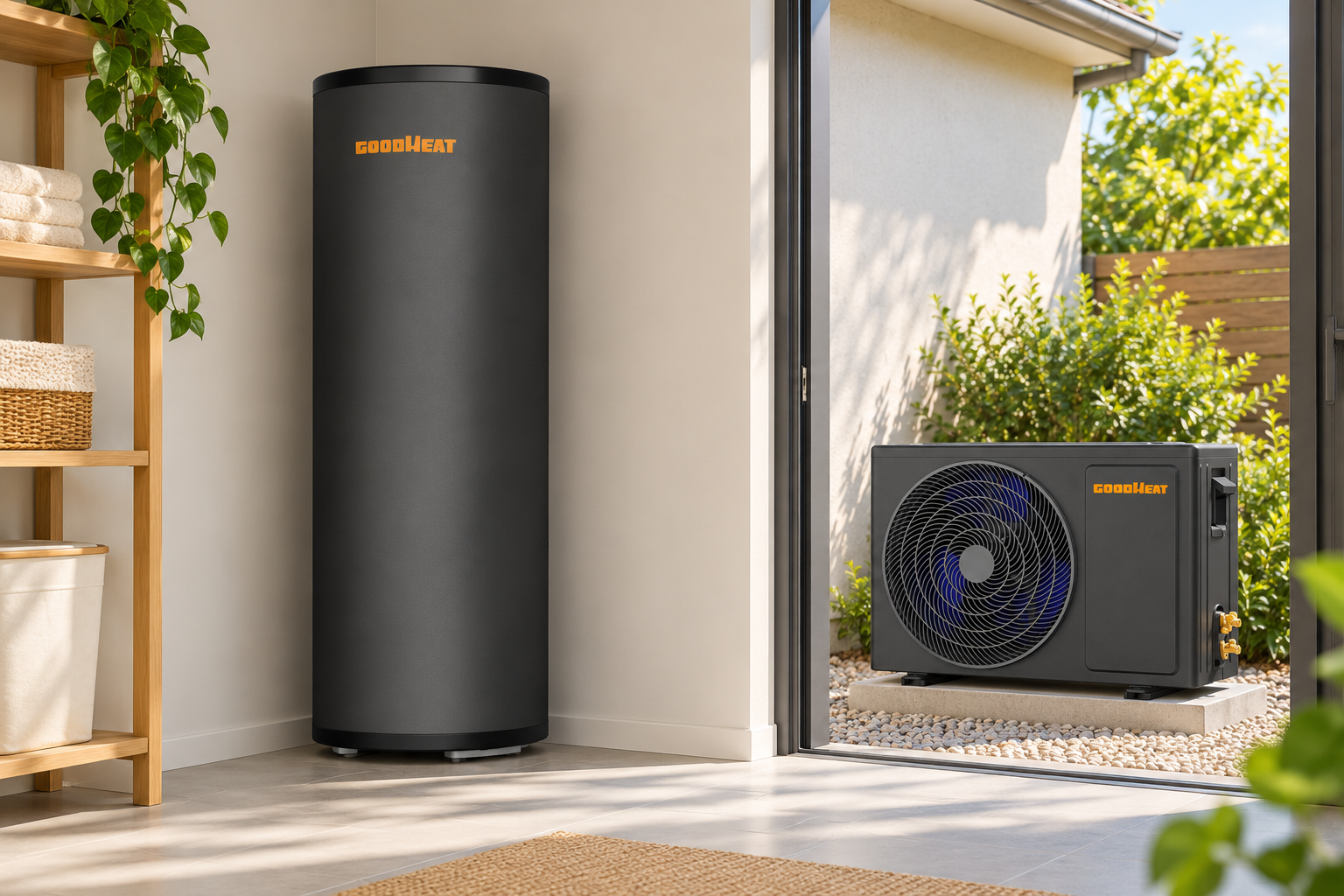

05-control

Set the temperature.

Plan your hot water.

The controller guide covers temperature adjustment, timed operation and operating modes. The English manual also includes Smart Life Wi-Fi pairing and app operation.

Wired controller with temperature and status display.

 Timer settings and three selectable operating modes.

 Confirm the controller and Wi-Fi module supplied with your order.

Related Products

Choose a split hot-water system for your project.

Tell us your hot-water demand, tank space and local climate.

Compare each configuration.

Keep the tank material clear.

Five configuration columns separate wall-mounted and floor-standing tanks. Select the tank material to compare its physical data.
Indoor Unit 100L 150L 150L 200L 300L
Outdoor Unit 3.0kW 3.5kW 3.5kW 5.0kW 5.0kW
Installation Type Wall-mounted Wall-mounted Floor-standing Floor-standing Floor-standing
General Specifications
AC Power Supply (V / Ph / Hz) 208~240 / 1 / 50
Operating Ambient Temperature (°C) -15~46
Maximum Leaving-Water Temperature (°C) 75
Heating Performance · Air DB 20 °C, WB 15 °C / Water inlet 15 °C, outlet 55 °C
Heating Capacity (W) 2800 3400 3400 5000 5000
Rated Power Input (W) 642 791 782 1163 1163
Rated Power Current (A) 2.8 3.5 3.7 5.4 5.4
Maximum Power Input (W) (Heat Pump + Backup) 1000+2000 1200+2000 1200+2000 1600+2000 1600+2000
Maximum Power Input (W) (Heat Pump + Backup) 4.0+9.3 4.7+9.3 4.7+9.3 6.2+9.3 6.2+9.3
Starting Current (A) 3.0 3.0 3.0 4.0 4.0
Coefficient of Performance (COP) 4.36 4.30 4.35 4.30 4.30
Hot-water Yield (L/h) 60 75 75 110 110
Electrical & Refrigerant Specifications
Refrigerant Type / Charge / Declared GWP R32 / 0.43 kg / 675 R32 / 0.58 kg / 675 R32 / 0.65 kg / 675 R32 / 0.75 kg / 675 R290 / 1.00 kg / 3
Max. Refrigerant-side Allowable Pressure (MPa) 4.4
Electrical Protection Class Class I
Water Proof Level IPX4
Water Connection G3/4
Acoustic Data
Noise Level [dB(A)] ≤49 ≤49 ≤49 ≤52 ≤52
Dimensions & Shipping
Net Weight —— Outdoor Unit (kg) 24 29 29 32 32
Gross Weight —— Outdoor Unit (kg) 31 35 35 42 42
Unit Dimensions —— Outdoor Unit (mm) 796×348×558
Packaging Dimensions —— Outdoor Unit (mm) 900×400×620
Net Weight —— Indoor Unit (Duplex 2101) (kg) 31 36 41 46 62
Gross Weight —— Indoor Unit (Duplex 2101) (kg) 39 45 49 55 82
Unit Dimensions —— Indoor Unit (Duplex 2101) (mm) Ø470×1126 Ø510×1250 Ø470×1605 Ø510×1645 Ø600×1755
Packaging Dimensions —— Indoor Unit (Duplex 2101) (mm) 1250×545×545 1250×570×570 1675×545×545 1720×580×580 1905×665×665
Net Weight —— Indoor Unit (Enamel) (kg) / / 55 63 94
Gross Weight —— Indoor Unit (Enamel) (kg) / / 63 72 114
Unit Dimensions —— Indoor Unit (Enamel) (mm) / / Ø470×1590 Ø510×1730 Ø600×1740
Packaging Dimensions —— Indoor Unit (Enamel) (mm) / / 1660×545×545 1805×590×590 1905×665×665

Merged cells are expanded only over their original range. Displayed figures are rounded to two decimals where needed. The source workbooks also contain unrelated products; those sheets are not used here.


75°C is presented as a maximum system water temperature. The documents list backup electric heating; heat-pump-only temperature and the full ambient/water envelope require confirmation. Do not combine −15°C ambient and 75°C water into a single operating claim.


The English manual lists maximum total input 3200 / 3600 W and current 16 / 19 A for its floor-standing versions. The workbook instead gives separate heat-pump/backup current components. This table retains the workbook components; obtain the final electrical/nameplate data for circuit design.


Noise values do not state sound power versus sound pressure, distance or mode. The main-unit weight and package rows refer to the outdoor unit, not the complete tank-filled system.

Choose a split hot-water system for your project.

Tell us your hot-water demand, tank space and local climate.

Plan the pairing.

Confirm the installation.

What makes this a split system?

The outdoor heat pump and storage tank are separate components linked by a refrigerant circuit. It is not an all-in-one cylinder with a fan on top.

Are both 150 L tanks the same?

Does the heat pump alone heat water to 75°C?

What does 60 / 75 / 110 L/h mean?

Can I use the Smart Life app?

Is a PV direct-driven version included?

Which specification is used for electrical selection?
