R290 Top Discharge Heat Pump Water Heater

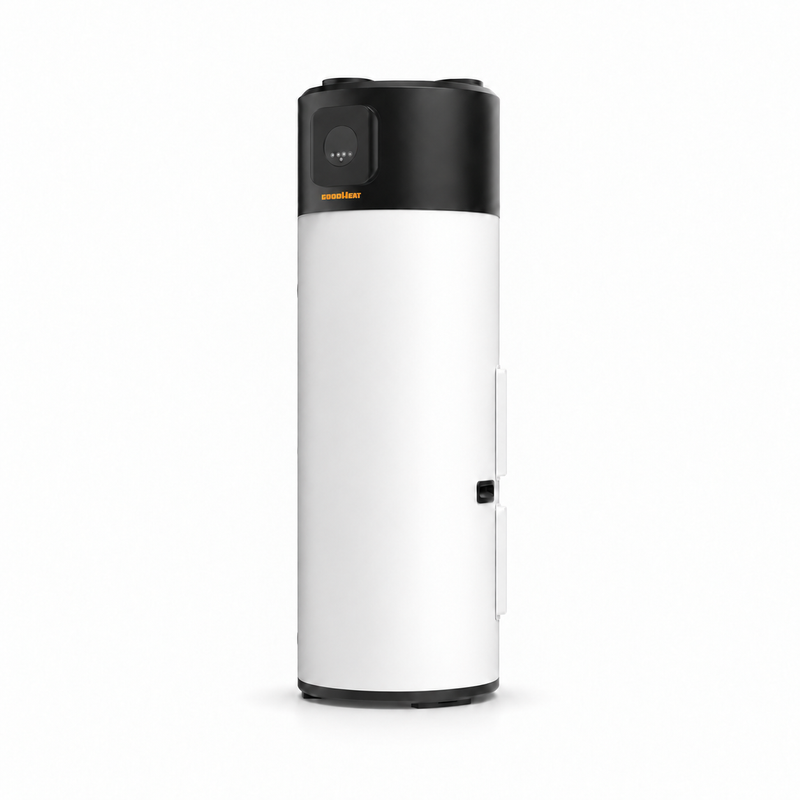

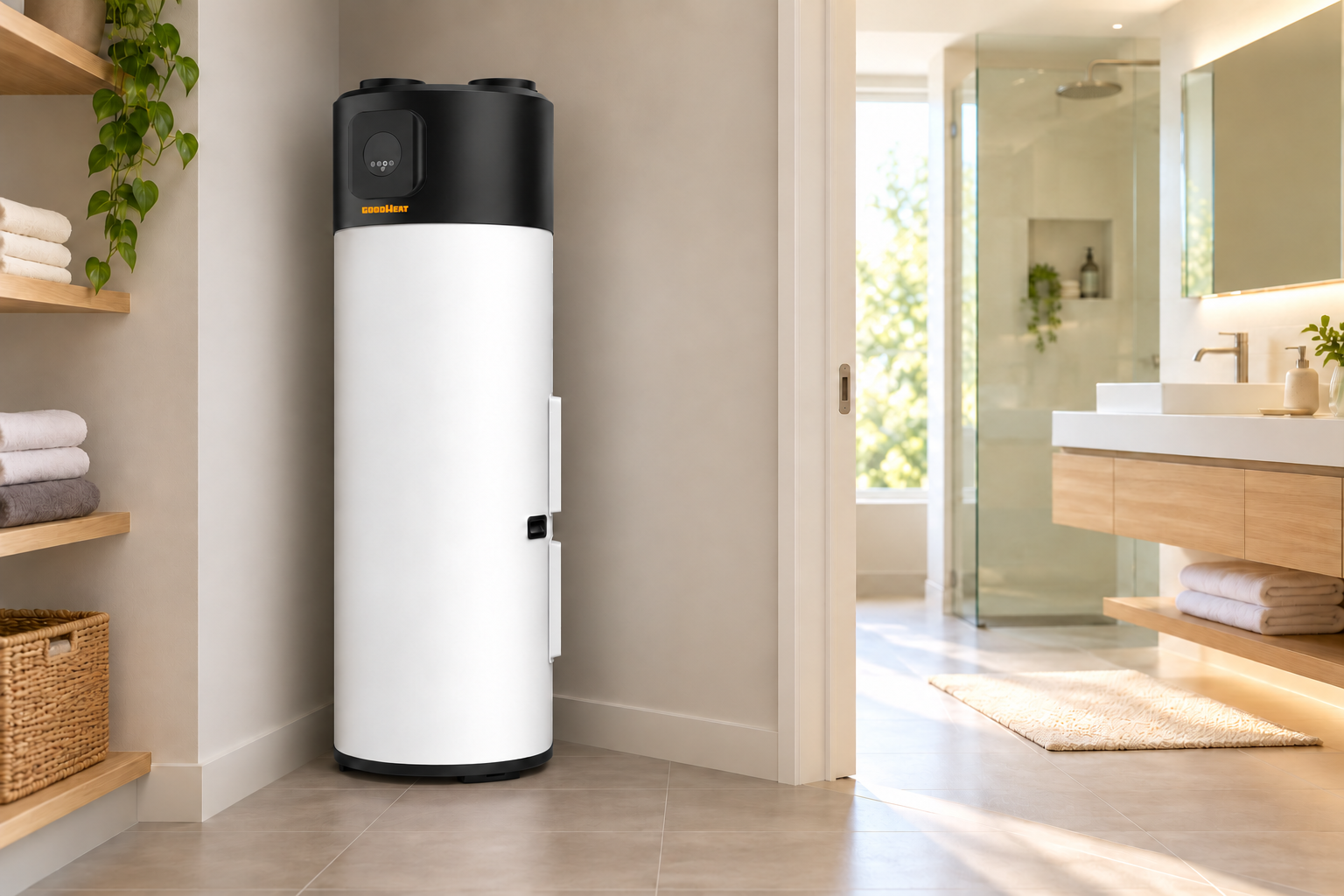

R290 Top Discharge All-in-One Heat Pump Water Heater

R290 all-in-one domestic heat pump water heater with top air connections.
Enamel and Duplex 2101 stainless-steel tank configurations.
Wall-mounted and floor-standing versions, by model.
DC inverter and PV direct-driven options documented for 200 / 300 L
Up to 65 °C without the backup heater; 75 °C overall system limit.*
Round LCD controls and documented Smart Life Wi-Fi functions.

*Confirm the selected heating mode, market configuration and operating envelope.


Availability:



Inquire

Description

Specification

FAQ

Hot-water storage.

Options for different spaces.

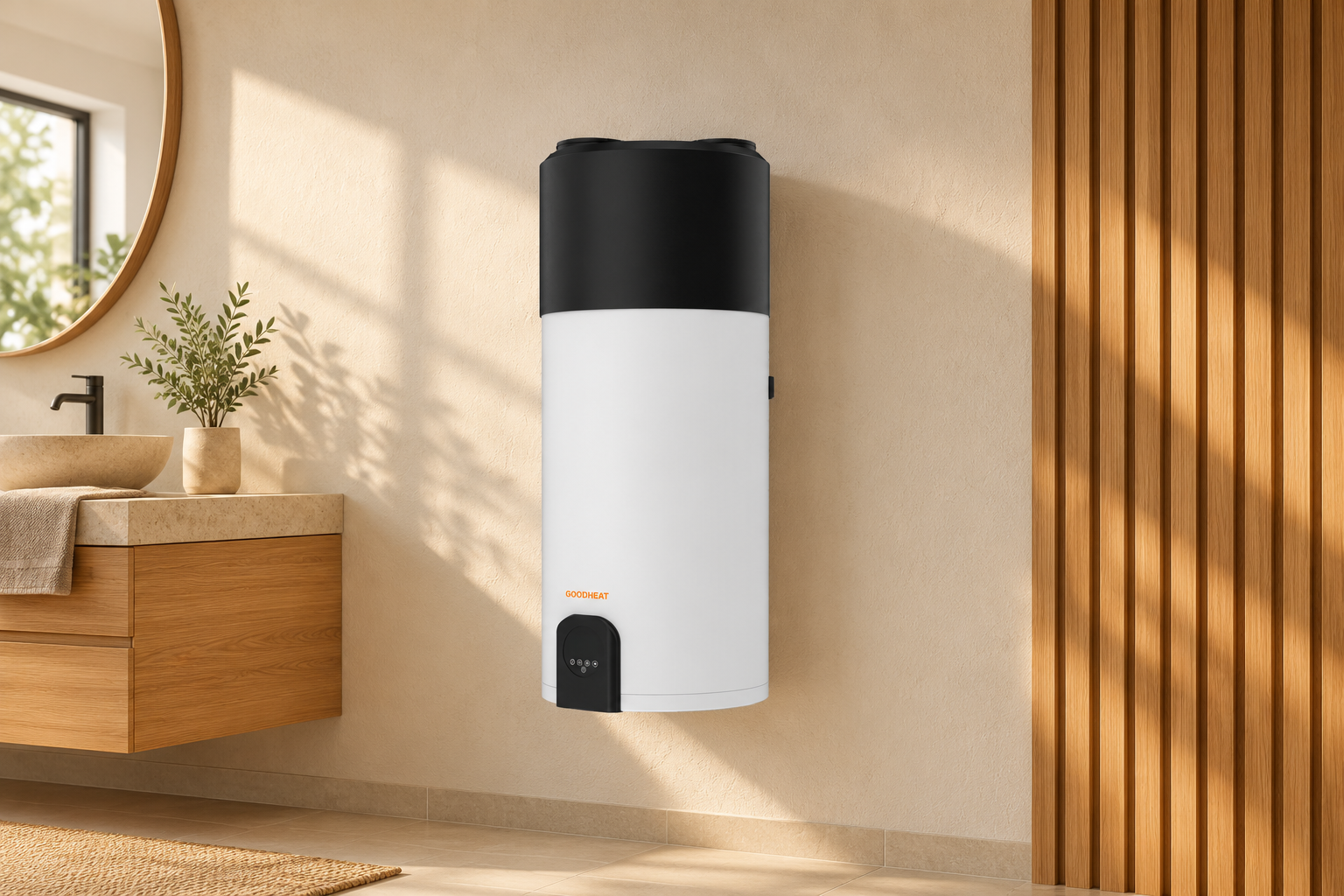

The fixed-speed range includes 100, 120, 150, 200 and 300 L storage capacities. Wall-mounted and floor-standing versions help match the unit to the available installation space.

Up to 65 °C

with heat-pump operation.

The supplied specifications list a maximum water temperature of 65 °C without the backup heater. A separate overall system limit of 75 °C is listed for the supported configuration.

Choose the tank.

Check the complete specification.

The fixed-speed range offers enamel and Duplex 2101 stainless-steel tanks. The inverter documents specify a stainless-steel 2101 tank. Compare materials together with capacity, weight and dimensions.

Set the temperature.

Organise the schedule.

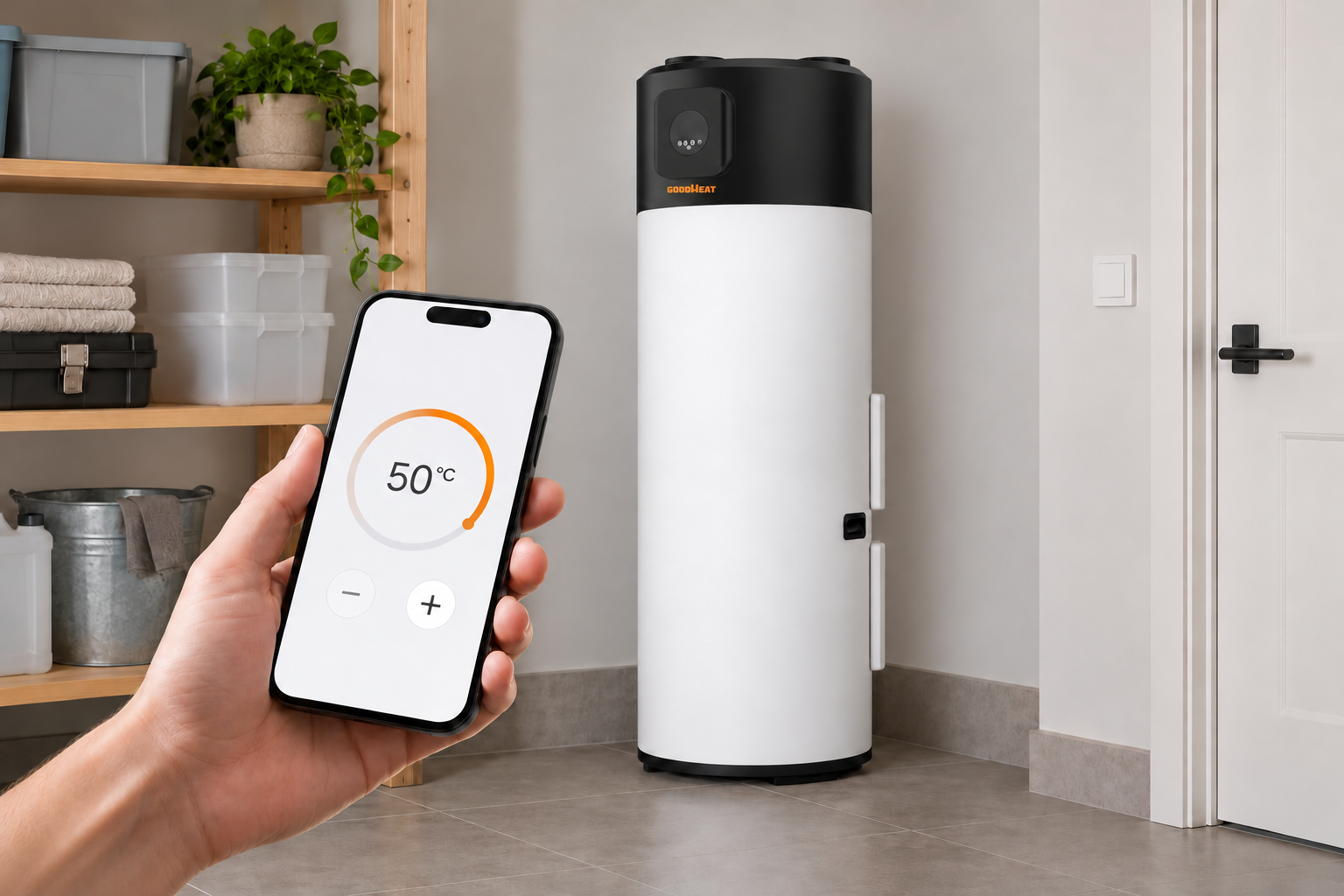

The supplied controller guide covers a round LCD interface with temperature settings, timers, weekly scheduling and operating modes. A separate Smart Life guide documents Wi-Fi pairing.

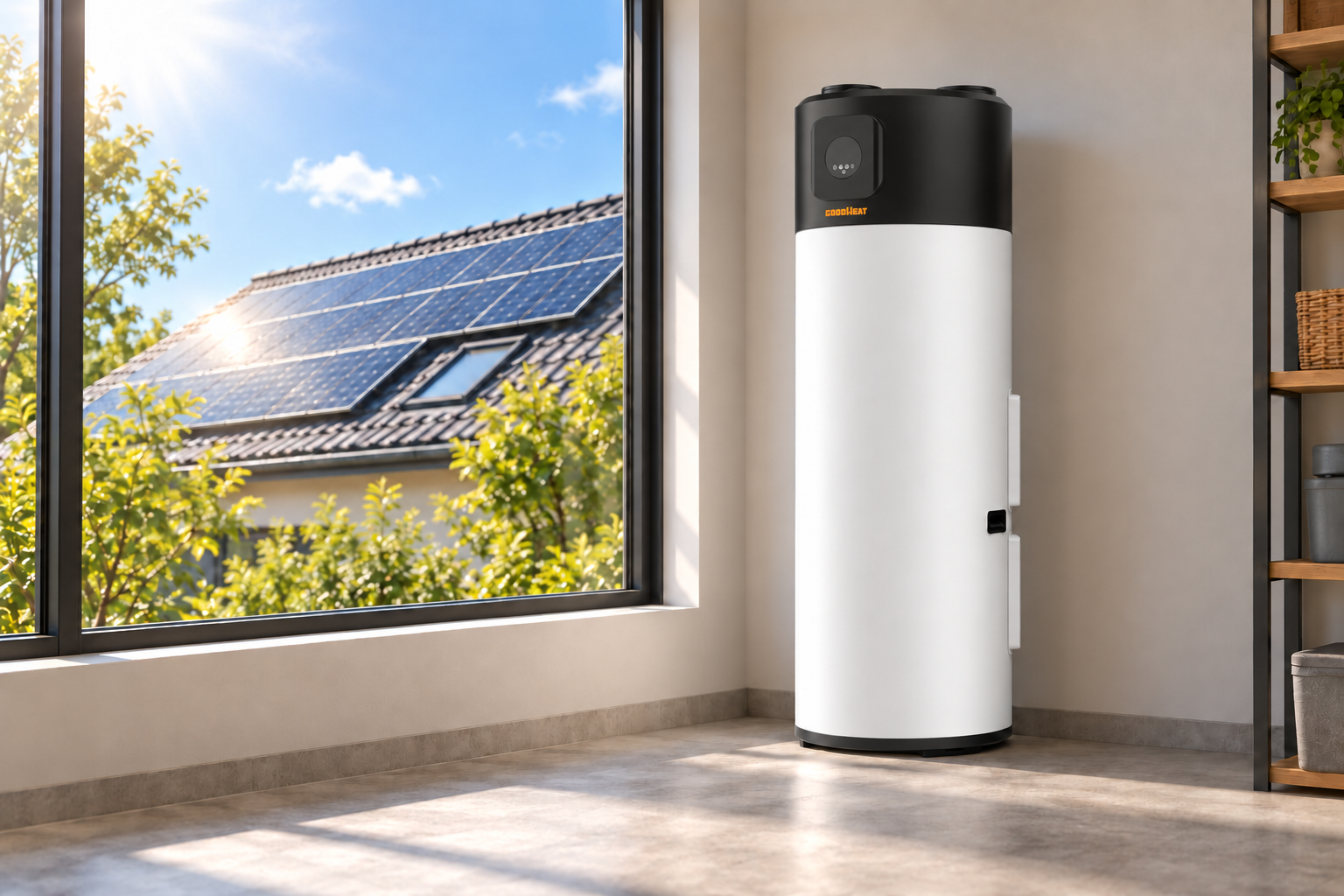

Solar input

for selected 200 / 300 L models.

The PV inverter sheet lists dedicated electrical input data for the 200 and 300 L columns. The PV manual identifies specific inverter model variants for order confirmation.

Temperature limits are separate from rated performance and vary with operating conditions. Product scenes are AI-assisted illustrations based on supplied renderings; cabinet and controller appearance depend on the chosen version. The specifications identify an indoor IPX1 unit; use the approved ventilation and duct arrangement.

Related Products

R32 Commercial Heat Pump Water Heater

Inquire

R290 Commercial Heat Pump Water Heater

Inquire

R290 Side Discharge Heat Pump Water Heater

R290 Side Discharge All-in-One Heat Pump Water Heater

Inquire

R290 Top Discharge All-in-One Heat Pump Water Heater

Inquire

Find the right hot-water configuration.

Tell us your market, demand, installation space and solar plans.

Request a Quote

Compare within the right series.

Select a configuration to view its own parameter table. Temperatures shown as air DB/WB. Scroll the tables horizontally on small screens.

ON-OFF · Enamel

ON-OFF · Duplex 2101

DC Inverter · Duplex 2101

Volume	100L	120L	150L	150L	200L	300L
Model	GHWSVT-100AA1	GHWSVT-120AA1	GHWSVT-150AB1	GHWSVT-150AA1	GHWSVT-200AA1	GHWSVT-300AA1
General Specifications
Installation Type	Wall-mounted	Wall-mounted	Wall-mounted	Floor-standing	Floor-standing	Floor-standing
AC Power Supply (V / Ph / Hz)	220~240 / 1 / 50
Operating Ambient Temperature——Heating (°C)	−7~45
Maximum Leaving-Water Temperature (°C)	75
Maximum Leaving-Water Temperature (°C) (without using backup heater)	65
Heating Performance · Air DB 7 °C, WB 6 °C / Water inlet 15 °C, outlet 55 °C
Heating Capacity (kW)	0.8	0.82	0.84	0.84	1.30	1.18
Standby Power Input (kW)	0.03
Coefficient of Performance (COP)	2.65	2.75	2.89	2.89	2.97	3.02
Heating Time (H)	6.32	7.59	9.85	9.85	5.89	10.73
Energy Efficiency Class	A+
Heating Performance · Air DB 14 °C, WB 13 °C / Water inlet 15 °C, outlet 55 °C
Heating Capacity (kW)	0.94	0.97	1.00	1.00	1.41	1.43
Coefficient of Performance (COP)	3.05	3.20	3.34	3.34	3.42	3.53
Heating Performance · Air DB 20 °C, WB 15 °C / Water inlet 15 °C, outlet 55 °C
Heating Capacity (kW)	0.95	0.98	1.03	1.03	1.48	1.50
Coefficient of Performance (COP)	3.24	3.45	3.56	3.56	3.65	3.75
Electrical & Refrigerant Specifications
Rated Electrical Power Input (kW)	2.00	2.00	2.00	2.00	2.50	2.50
Rated Current Input (A)	2.1 +7.1 (e-heater)	2.1 +7.1 (e-heater)	2.1 +7.1 (e-heater)	2.1 +7.1 (e-heater)	3.9 +7.1 (e-heater)	3.9 +7.1 (e-heater)
Auxiliary Electric Heater (A)	1.6
Refrigerant Type / Charge / Declared GWP	R290 / 0.15 kg / 3
Rated Water Yield (L/H)	23.6	23.6	23.6	23.6	34.4	34.4
Indoor Unit Protection	IPX1
Tank, Air Side & Connections
Inner Tank Material	Enamel
Max. Allowed Tank Pressure (bar)	10
Tank Insulation	50 mm polyurethane
Duct Connection Diameter (mm)	150
Air Flow (m³/h)	500
Hot Water Outlet	G1/2 Male thread	G1/2 Male thread	G1/2 Male thread	G1/2 Male thread	G 3/4 Female thread	G 3/4 Female thread
Cold Water Inlet	G1/2 Male thread	G1/2 Male thread	G1/2 Male thread	G1/2 Male thread	G 3/4 Female thread	G 3/4 Female thread
Acoustic Data
Noise Level [dB(A)]	55
Dimensions & Shipping
Net Weight (kg)	51	59	69	69	93	117
Gross Weight (kg)	55	63	81	81	109	137
Unit Dimensions (mm)	Ø510×1240	Ø510×1390	Ø510×1615	Ø510×1615	Ø570×1720	Ø650×1926
Packaging Dimensions (mm)	570×570×1280	570×570×1430	570×570×1655	570×570×1655	640×640×1850	720×720×2056

Volume	100L	120L	150L	150L	200L	300L
Model	GHWSVB-100AA1	GHWSVB-120AA1	GHWSVB-150AB1	GHWSVB-150AA1	GHWSVB-200AA1	GHWSVB-300AA1
General Specifications
Installation Type	Wall-mounted	Wall-mounted	Wall-mounted	Floor-standing	Floor-standing	Floor-standing
AC Power Supply (V / Ph / Hz)	220~240 / 1 / 50
Operating Ambient Temperature——Heating (°C)	−7~45
Maximum Leaving-Water Temperature (°C)	75
Maximum Leaving-Water Temperature (°C) (without using backup heater)	65
Heating Performance · Air DB 7 °C, WB 6 °C / Water inlet 15 °C, outlet 55 °C
Heating Capacity (kW)	0.80	0.82	0.84	0.84	1.23	1.30
Standby Power Input (kW)	0.03
Coefficient of Performance (COP)	2.62	2.67	2.85	2.85	2.93	3.15
Heating Time (H)	4.24	6.39	7.18	7.18	6.62	9.77
Energy Efficiency Class	A+
Heating Performance · Air DB 14 °C, WB 13 °C / Water inlet 15 °C, outlet 55 °C
Heating Capacity (kW)	0.94	0.97	1.00	1.00	1.41	1.43
Coefficient of Performance (COP)	3.05	3.20	3.34	3.34	3.42	3.53
Heating Performance · Air DB 20 °C, WB 15 °C / Water inlet 15 °C, outlet 55 °C
Heating Capacity (kW)	0.95	0.98	1.03	1.03	1.48	1.50
Coefficient of Performance (COP)	3.24	3.45	3.56	3.56	3.65	3.75
Electrical & Refrigerant Specifications
Rated Electrical Power Input (kW)	2.00	2.00	2.00	2.00	2.50	2.50
Rated Current Input (A)	2.1 +7.1 (e-heater)	2.1 +7.1 (e-heater)	2.1 +7.1 (e-heater)	2.1 +7.1 (e-heater)	3.9 +7.1 (e-heater)	3.9 +7.1 (e-heater)
Auxiliary Electric Heater (A)	1.6
Refrigerant Type / Charge / Declared GWP	R290 / 0.15 kg / 3
Rated Water Yield (L/H)	23.6	23.6	23.6	23.6	34.4	34.4
Indoor Unit Protection	IPX1
Tank, Air Side & Connections
Inner Tank Material	Duplex 2101
Max. Allowed Tank Pressure (bar)	10
Tank Insulation	50 mm polyurethane
Duct Connection Diameter (mm)	150
Air Flow (m³/h)	500						450
Hot Water Outlet	G1/2 Male thread	G1/2 Male thread	G1/2 Male thread	G1/2 Male thread	G 3/4 Female thread	G 3/4 Female thread
Cold Water Inlet	G1/2 Male thread	G1/2 Male thread	G1/2 Male thread	G1/2 Male thread	G 3/4 Female thread	G 3/4 Female thread
Acoustic Data
Noise Level [dB(A)]	55
Dimensions & Shipping
Net Weight (kg)	46	48	53	53	66	80
Gross Weight (kg)	48	51	61	61	81	100
Unit Dimensions (mm)	Ø510×1240	Ø510×1390	Ø510×1615	Ø510×1615	Ø570×1720	Ø650×1826
Packaging Dimensions (mm)	570×570×1280	570×570×1430	570×570×1655	570×570×1655	640×640×1850	720×720×1956

Volume	200L	200L	300L	300L
Model	GHWVSVB-200AA1	GHWVSVB-200AC1	GHWVSVB-300AA1	GHWVSVB-300AA1
General Specifications
Installation Type	Floor-standing	Floor-standing	Floor-standing	Floor-standing
AC Power Supply (V / Ph / Hz)	220~240 / 1 / 50
Operating Ambient Temperature (°C)	-7~46
Maximum Leaving-Water Temperature (°C)	75
Maximum Leaving-Water Temperature (°C) (without using backup heater)	65
PV Electrical Specifications — PV Series only
PV Max. Input Current (A)	21
Optimal PV Input Voltage Range (V)	45~400
Recommended PV Module Qty. (630 W / 50.2 V) (modules)	2
Heating Performance · Air DB 7 °C, WB 6 °C / Water inlet 15 °C, outlet 55 °C
Heating Capacity (kW)	1.23			1.30
Standby Power Input (kW)	0.03
Coefficient of Performance (COP)	2.93			3.15
Heating Time (H)	6.62			9.77
Energy Efficiency Class	A+
Heating Performance · Air DB 14 °C, WB 13 °C / Water inlet 15 °C, outlet 55 °C
Heating Capacity (kW)	1.41			1.43
Coefficient of Performance (COP)	3.42			3.53
Heating Performance · Air DB 20 °C, WB 15 °C / Water inlet 15 °C, outlet 55 °C
Heating Capacity (kW)	1.48			1.50
Coefficient of Performance (COP)	3.65			3.75
Electrical & Refrigerant Specifications
Rated Electrical Power Input (kW)	0.9 +1.6 (e-heater)
Rated Current Input (A)	3.9 +7.1 (e-heater)
Auxiliary Electric Heater (kW)	1.6
Refrigerant Type / Charge / Declared GWP	R290 / 0.15 kg / 3
Rated Water Yield (L/H)	34.4
Indoor Unit Protection	IPX1
Tank, Air Side & Connections
Inner Tank Material	Duplex 2101
Max. Allowed Tank Pressure (bar)	10
Tank Insulation	50 mm polyurethane
Duct Connection Diameter (mm)	150
Air Flow (m³/h)	500
Hot Water Outlet	G 3/4 Female thread
Cold Water Inlet	G 3/4 Female thread
Acoustic Data
Noise Level [dB(A)]	55
Dimensions & Shipping
Net Weight (kg)	73	78	87	92
Gross Weight (kg)	90	95	112	112
Unit Dimensions (mm)	Ø650×1471			Ø650×1826
Packaging Dimensions (mm)	720×720×1620			720×720×1970

Heating capacity, heating time, COP and energy class are declared against EN 16147 procedures and the stated M/L/XL draw-off profiles. These are not interchangeable steady-state ratings or universal savings. The specification footnotes assign different test stages to capacity and COP; compare like-for-like conditions.

Nominal capacity of 1.1 / 1.6 kW in the sheets uses air 20/15 °C and water heating 15→55 °C. Separate heat-pump-only (65 °C) and overall-system (75 °C) limits must not be combined with the minimum ambient into one promise. Final permitted settings depend on mode and version.

PV figures apply to the supplied 200/300 L reference configuration. Three 630 W / 50.2 V modules are a recommendation, not a declared maximum PV input power. The optimal voltage range is not an absolute maximum voltage; confirm cold-weather Voc, current limits and wiring.

Dimensions, airflow and weights differ between sheets, Standard manuals and PV manuals. This page labels the manual AA1 data used for inverter versions. Request the final dimensional and electrical drawings.

Find the right hot-water configuration.

Tell us your market, demand, installation space and solar plans.

Request a Quote

Find the right hot-water configuration.

Tell us your market, demand, installation space and solar plans.

Request a Quote

Confirm the version

before planning the installation.

Can one parameter table represent every version?

No. Tank material, drive type, installation format and capacity change the data. Use the configuration selector to keep these versions separate.

Are all capacities available with PV direct drive?

Does 75 °C mean heat-pump-only operation?

Does 55 dB(A) mean sound pressure at 1 metre?

Can the unit be installed outdoors?

Are all certificates for the inverter and PV models?

Is the supplied SG Ready label current?

Why do the inverter names and dimensions differ between files?
