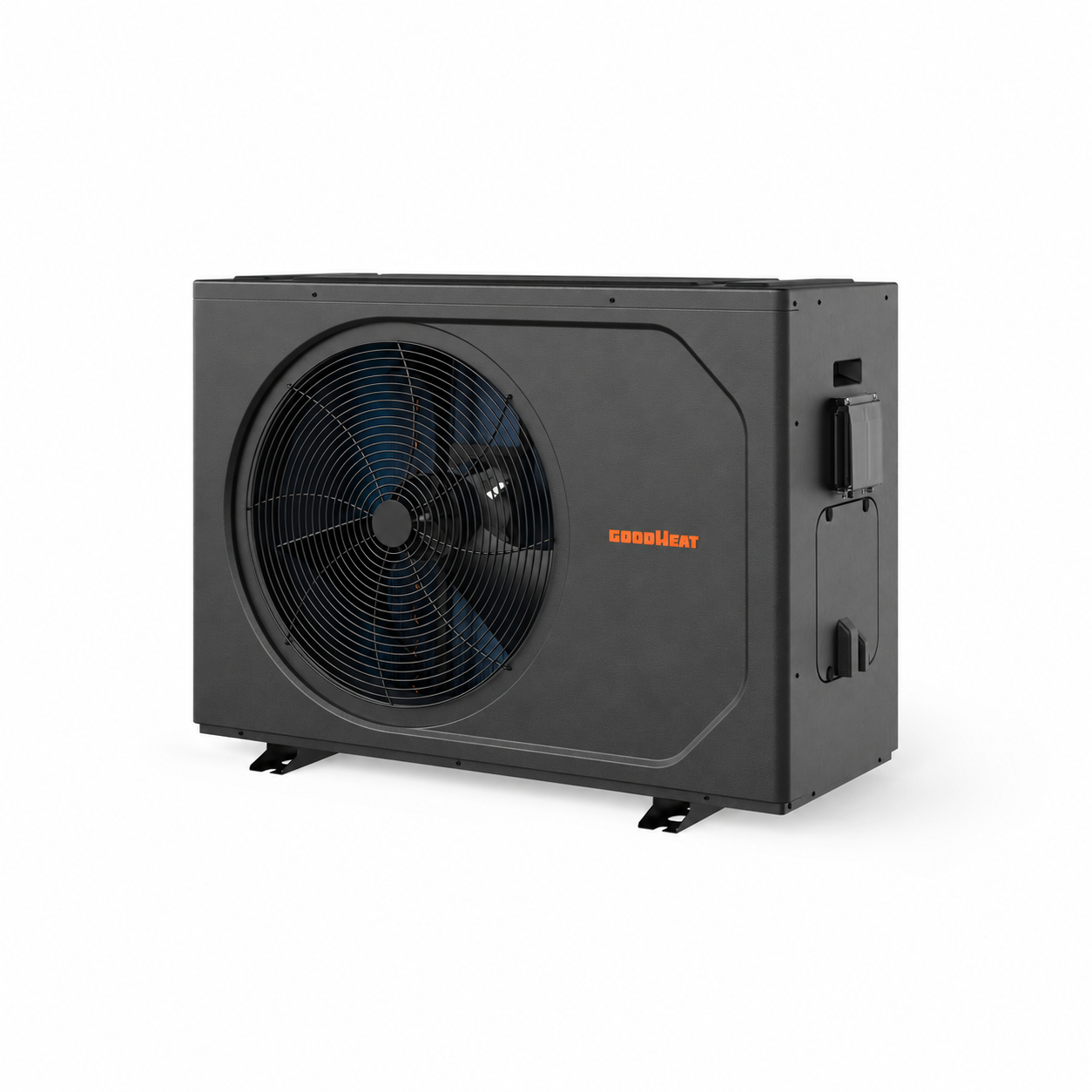

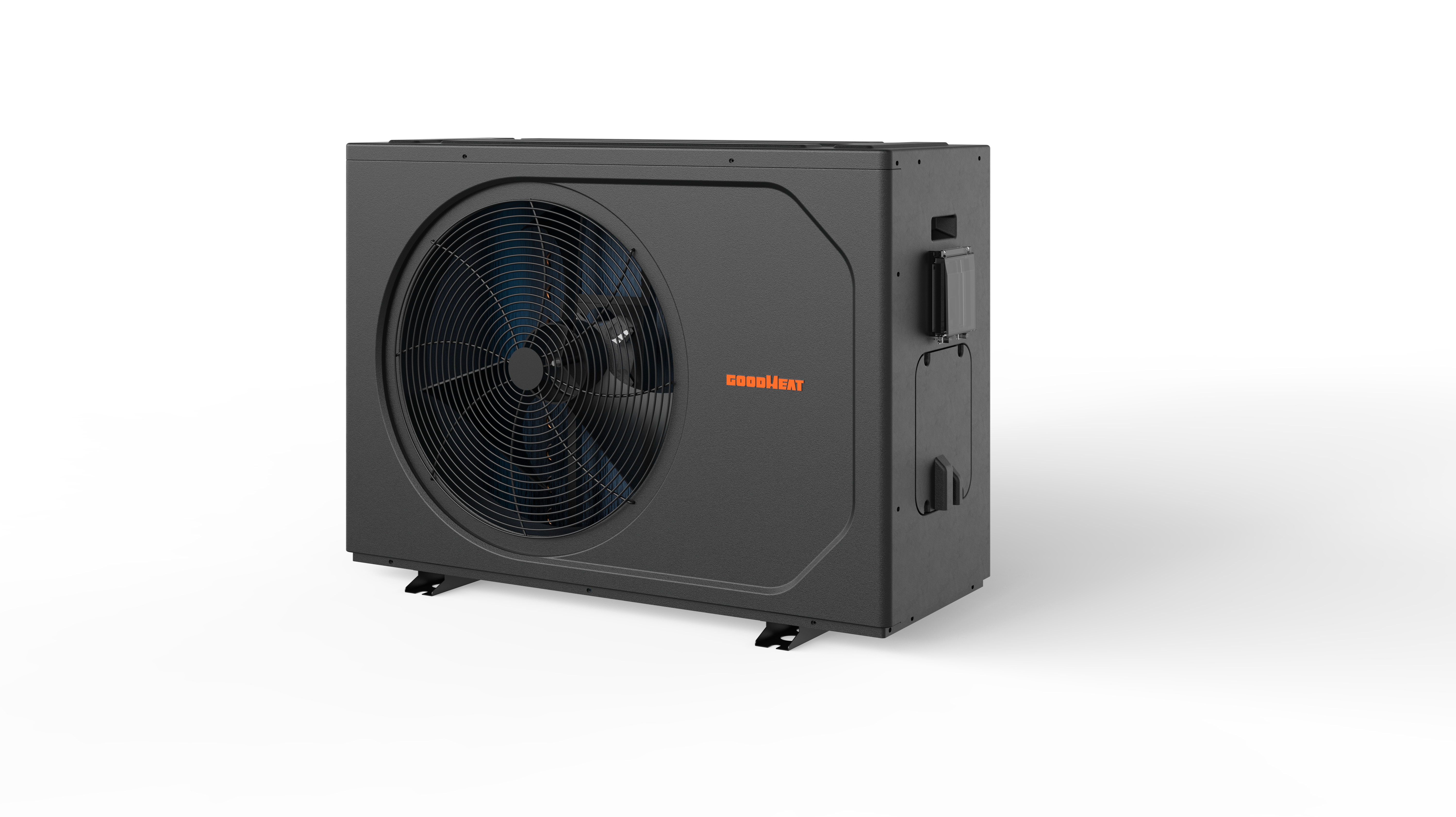

R32 Front Discharge Swimming Pool Heat Pump

R32 full-inverter technology with Mitsubishi compressor and DC inverter fan.
Standard Series and PV direct-drive Series for different power configurations.
7–35 kW capacity classes; selected 25 and 35 kW three-phase variants.
Heating and cooling with automatic reverse-cycle defrosting.
Titanium water-side heat exchanger and DN50 water connections.
Wi-Fi control; controller type varies by capacity and configuration.


Availability:



Inquire

Description

Specification

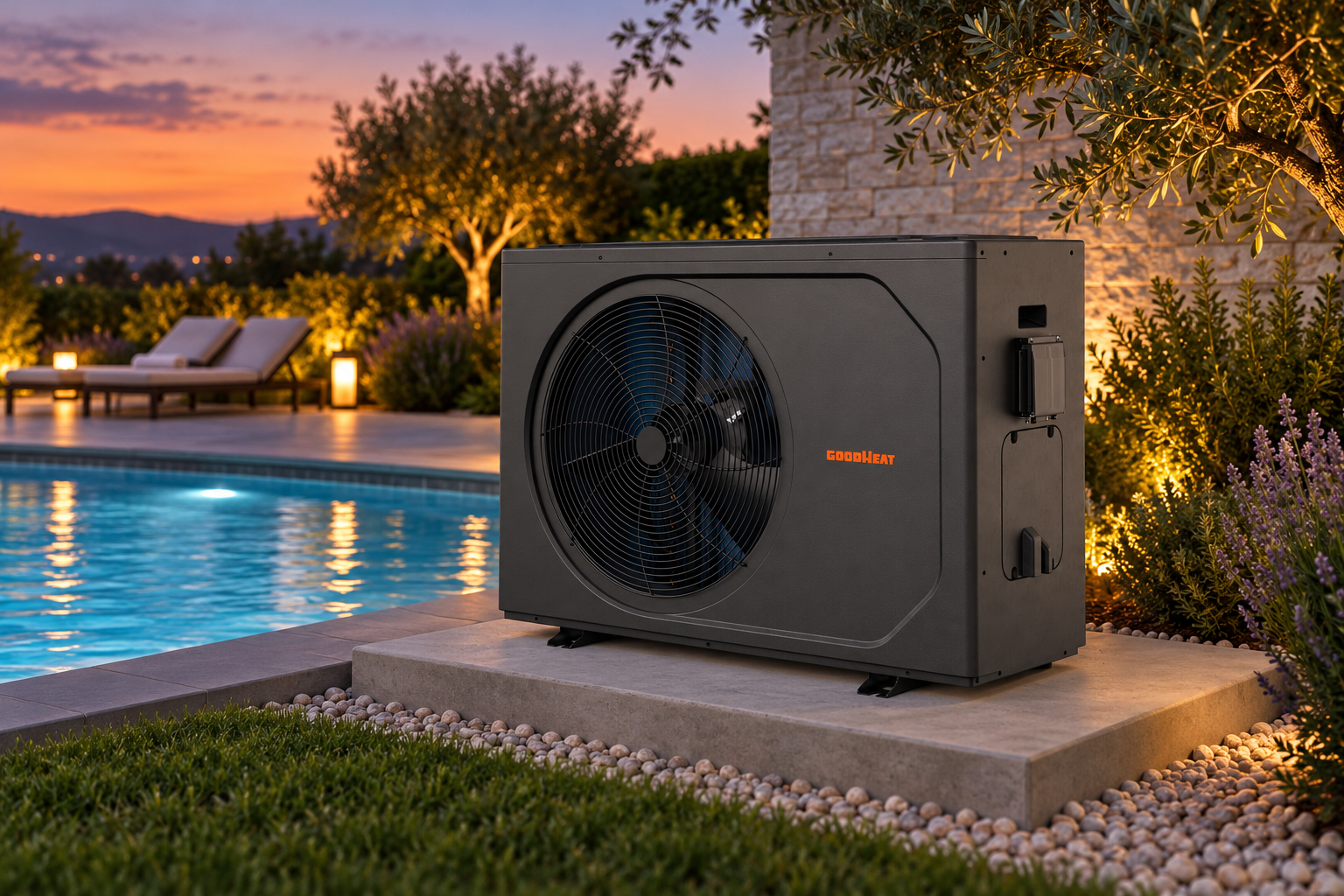

R32 front discharge inverter pool heat pump beside a calm garden pool at dusk

Match output to pool demand.

A Mitsubishi inverter compressor, DC inverter fan and electronic expansion valve regulate operation as pool demand changes. Compare the Standard and PV Series at the stated test conditions.

Extend your pool comfort.

Heating and cooling functions help manage water temperature through changing weather. Automatic four-way-valve defrosting supports operation when defrost is required.

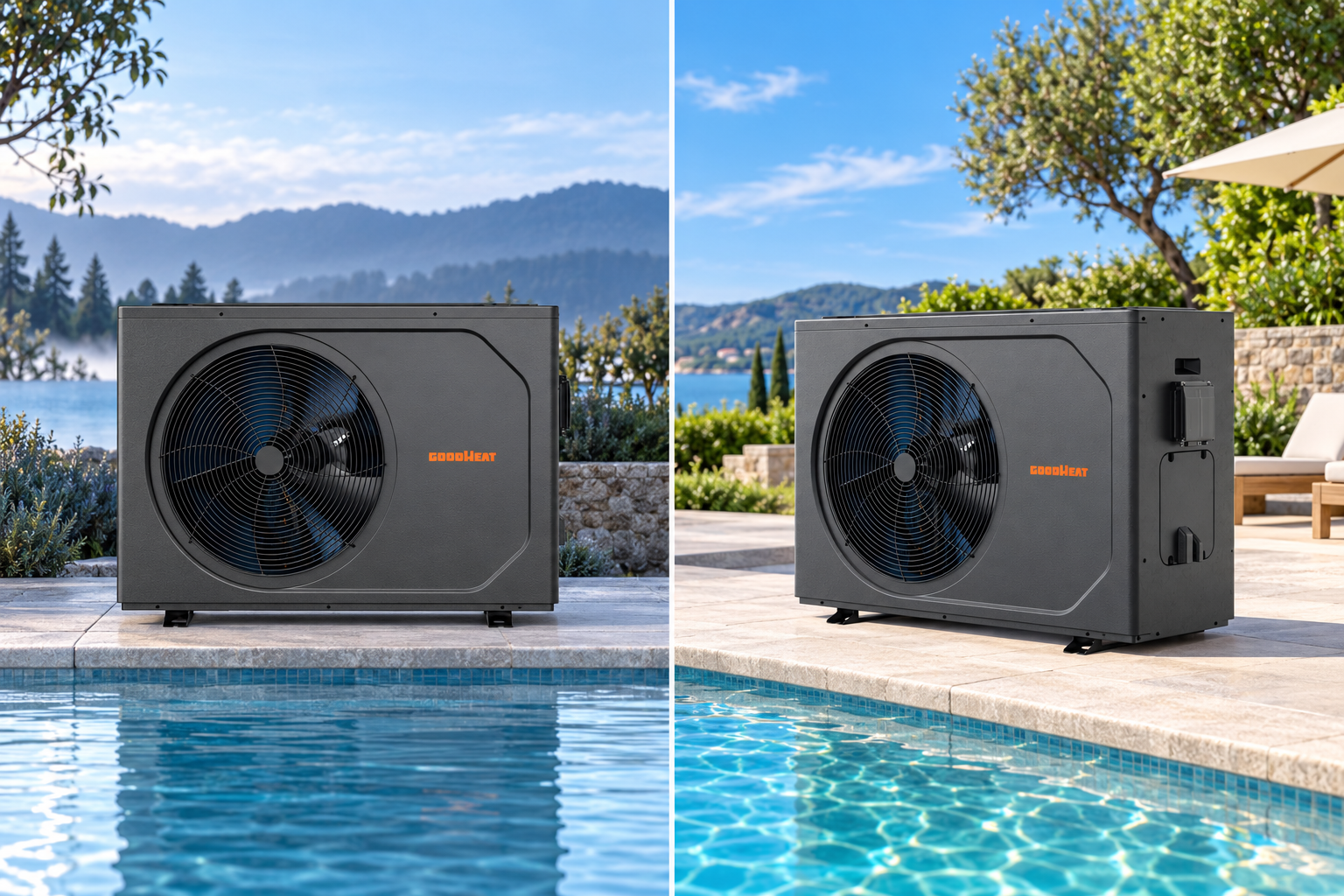

R32 pool heat pump shown in spring and summer swimming pool settings

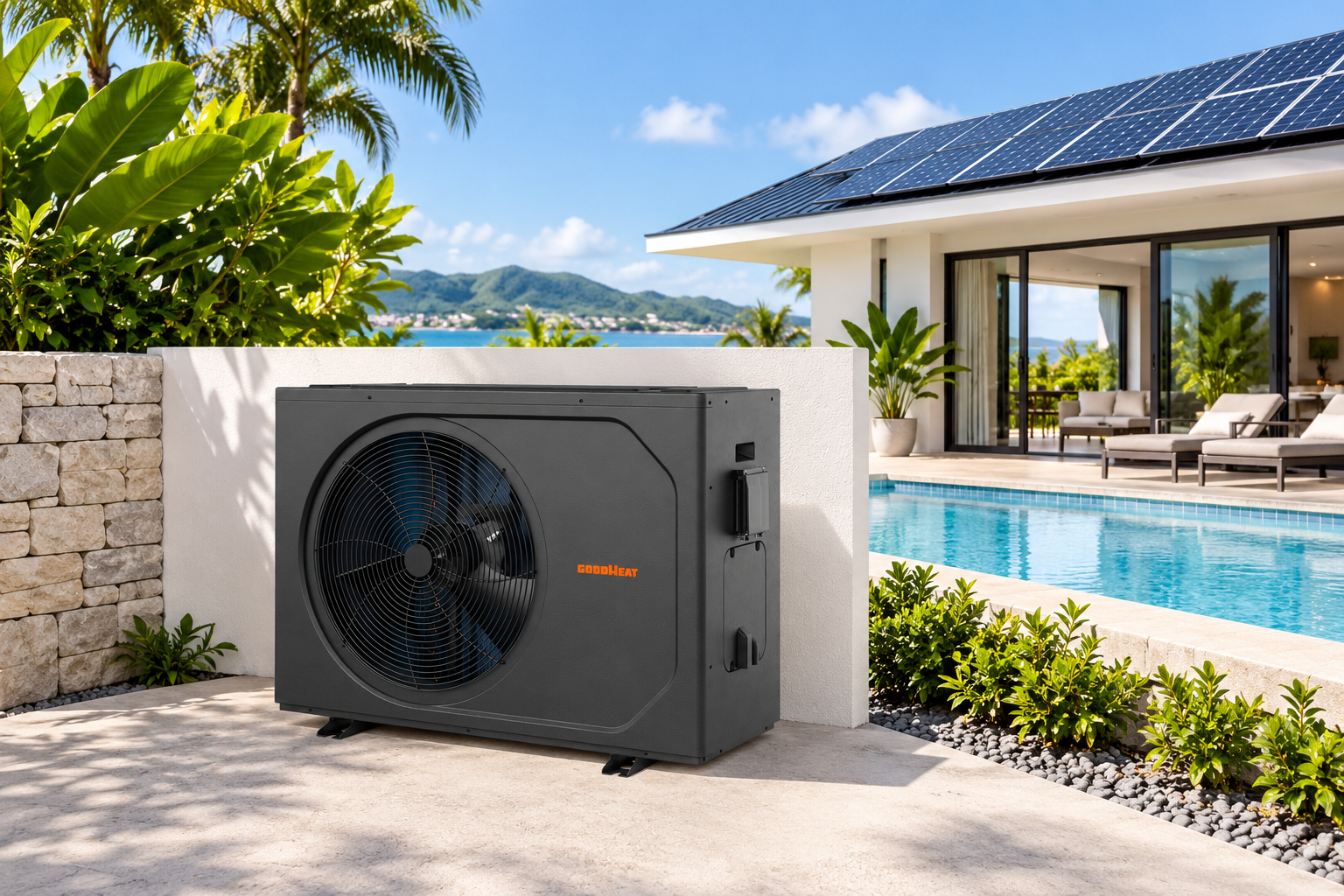

R32 PV direct-drive pool heat pump with rooftop solar panels at a pool villa

A solar option for your pool.

Choose the PV Series for a configuration with declared photovoltaic inputs. Input current, optimal voltage range and recommended module quantity vary with capacity and AC phase.

Control that fits your model.

The configuration sheet lists Wi-Fi controllers, with LCD versions for documented 12–18 kW models and 4-inch TFT versions for documented 25–35 kW models. Confirm the ordered control package.

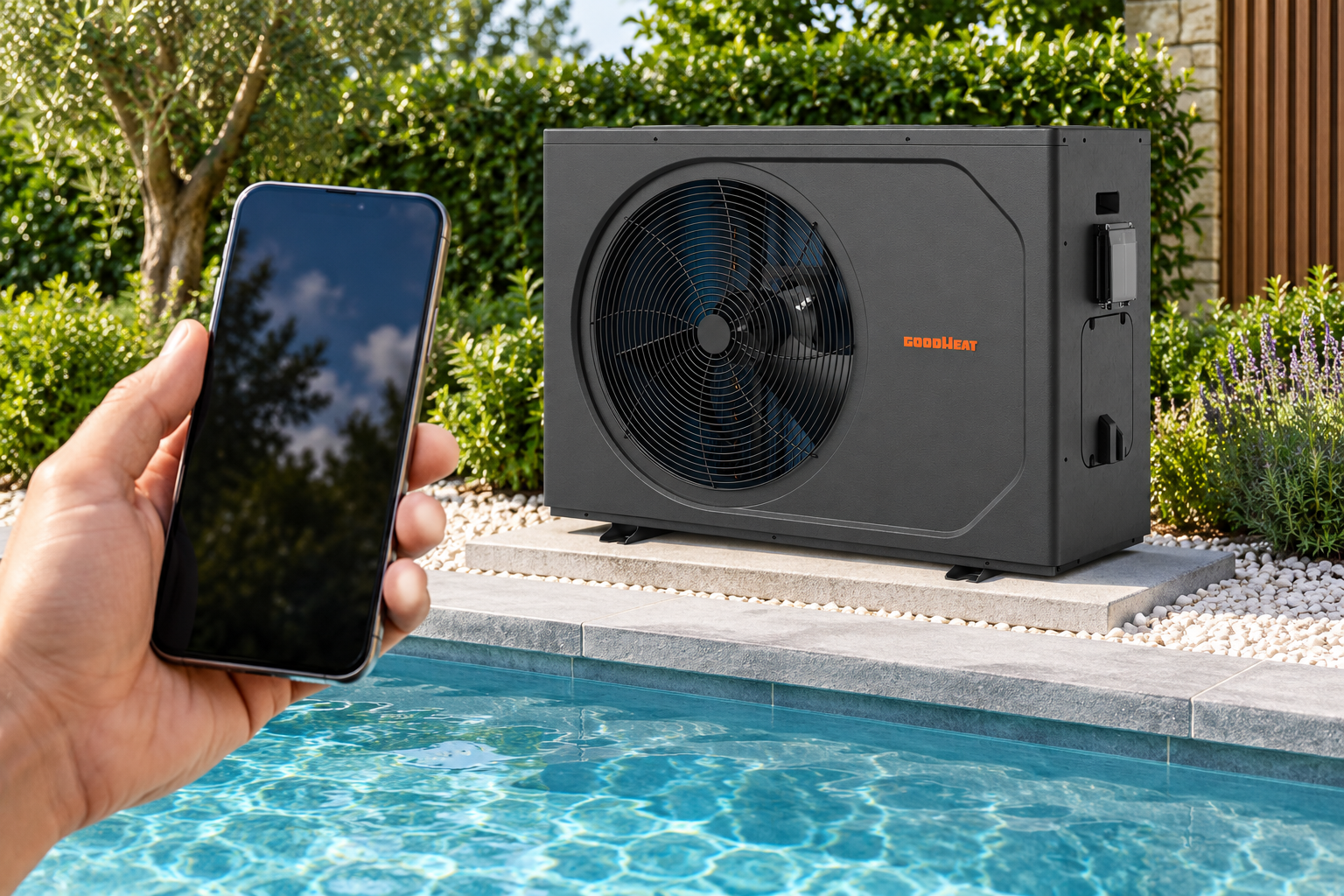

Smartphone held near an R32 inverter pool heat pump in a garden

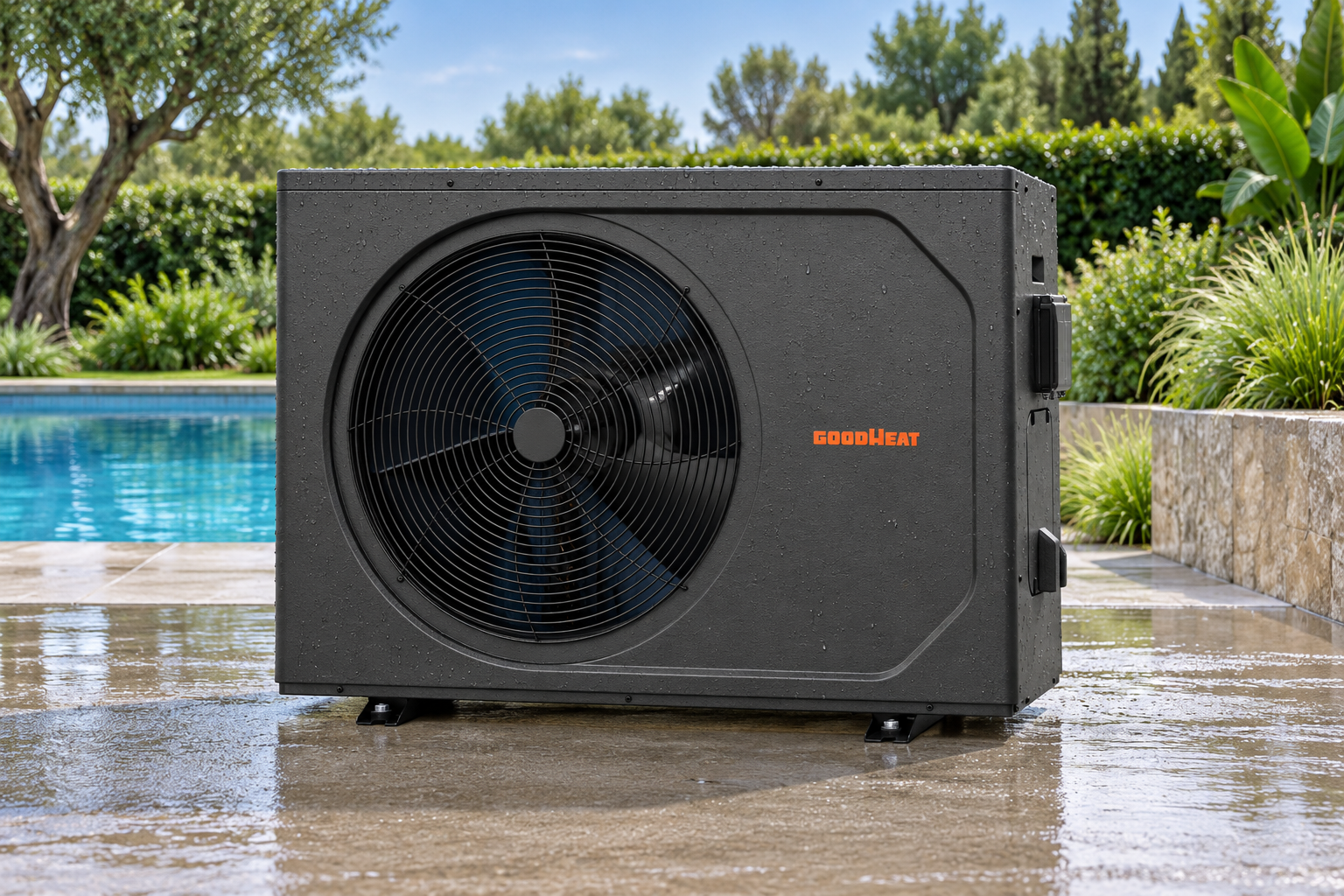

R32 front discharge pool heat pump installed outdoors after light rain

Built around pool-water use.

A titanium water-side heat exchanger and DN50 connections support the pool circulation circuit. IPX4 protection and a horizontal-airflow layout guide the outdoor equipment arrangement.

Related Products

R290 Side Discharge Swimming Pool Heat Pump

Inquire

R290 Mini Swimming Pool Heat Pump

Inquire

R290 Top Discharge Swimming Pool Heat Pump

Inquire

R290 Front Discharge Swimming Pool Heat Pump

Inquire

Find the right model for your pool.

Share your pool volume, location and preferred series with GOODHEAT.

Request a Quote

Model	7kW	9kW	12kW	15kW	18kW	25kW	35kW	25kW	35kW
Model	GSPVSH-7BA1	GSPVSH-9BA1	GSPVSH-12BA1	GSPVSH-15BA1	GSPVSH-18BA1	GSPVSH-25BA1	GSPVSH-35BA1	GSPVTH-25BA1	GSPVTH-35BA1
Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out
Heating Capacity(kW)	1.70~7.60	2.30~9.50	3.00~12.00	3.80~15.00	4.80~18.00	6.80~25.00	8.80~35.00	6.80~25.00	8.80~35.00
Power Input(kW)	0.11~1.12	0.15~1.40	0.18~1.73	0.23~2.14	0.30~2.64	0.43~3.57	0.54~5.13	0.43~3.57	0.54~5.13
COP	6.81~16.20	6.82~16.30	6.90~16.30	7.00~16.40	6.81~16.20	7.00~16.30	6.82~16.40	7.00~16.30	6.82~16.40
Average COP at 50% Capacity	11.80	12.00	11.80	11.90	11.80	11.60	11.80	11.60	11.80
Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out
Heating Capacity	1.40~6.10	1.90~7.60	2.30~9.80	3.00~12.50	3.80~16.50	5.50~22.00	6.40~25.50	5.50~22.00	6.40~25.50
Power Input(kW)	0.19~1.24	0.25~1.55	0.29~1.96	0.38~2.76	0.49~3.37	0.69~4.40	0.67~5.20	0.69~4.40	0.67~5.20
COP	4.90~7.50	4.90~7.60	5.00~7.80	4.90~8.00	4.90~7.80	5.00~8.00	4.90~8.10	5.0~8.0	4.90~8.10
Average COP at 50% Capacity	6.80	7.00	6.90	6.90	6.80	6.90	6.80	6.90	6.80
Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out
Cooling Capacity(kW)	1.00~4.20	1.30~5.30	1.70~7.20	2.10~9.40	2.70~11.60	3.80~14.90	4.90~19.30	3.80~14.90	4.90~19.30
Power Input(kW)	0.15~1.11	0.19~1.40	0.25~1.89	0.31~2.47	0.40~3.05	0.77~3.92	0.73~5.08	0.77~3.92	0.99~5.08
EER	3.50~6.20	3.40~6.00	3.60~6.50	3.60~6.50	3.60~6.50	3.80~6.70	3.50~6.40	3.80~6.70	3.50~6.40
General Data
Power Supply	220~240V/1ph/50Hz							380~415V/3ph/50Hz
Max Power Input(kW)	1.55	1.78	2.60	3.15	3.75	5.17	7.25	6.43	7.25
Max Current(A)	7.3	8.3	11.8	14.5	17.5	24.5	33.5	7.9	12.8
Water Flow Volume(m³/h)	2.5	3.5	4.5	5.5	6.5	9.0	12.0	9.0	12.0
Refrigerant	R32
Heat Exchanger	Titanium
Air Flow Direction	Horizontal
Kind of Difrost	By 4-way Valve
Compressor	Mitsubishi
Casing Material	ABS
Water Proof Level	IPX4
Working Temp. Rante(℃)	-15~43
Water Pipe Connection Size	DN50
Noise Level at 1m(dB(A))	39~49	40~52	42~53	43~55	45~56	47~58	49~59	47~58	49~59
Noise Level at 10m(dB(A))	20~29	20~32	22~33	23~35	25~36	27~38	29~39	27~38	29~39
Net Weight(kg)	42	43	43	46	50	88	98	88	98
Gross Weight(kg)	53	54	54	57	62	99	110	99	110
Net Dimensions(mm)	880340590		920380650			1080420740
Packed Dimensions(mm)	930400640		990400760			1150460870
Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data.
