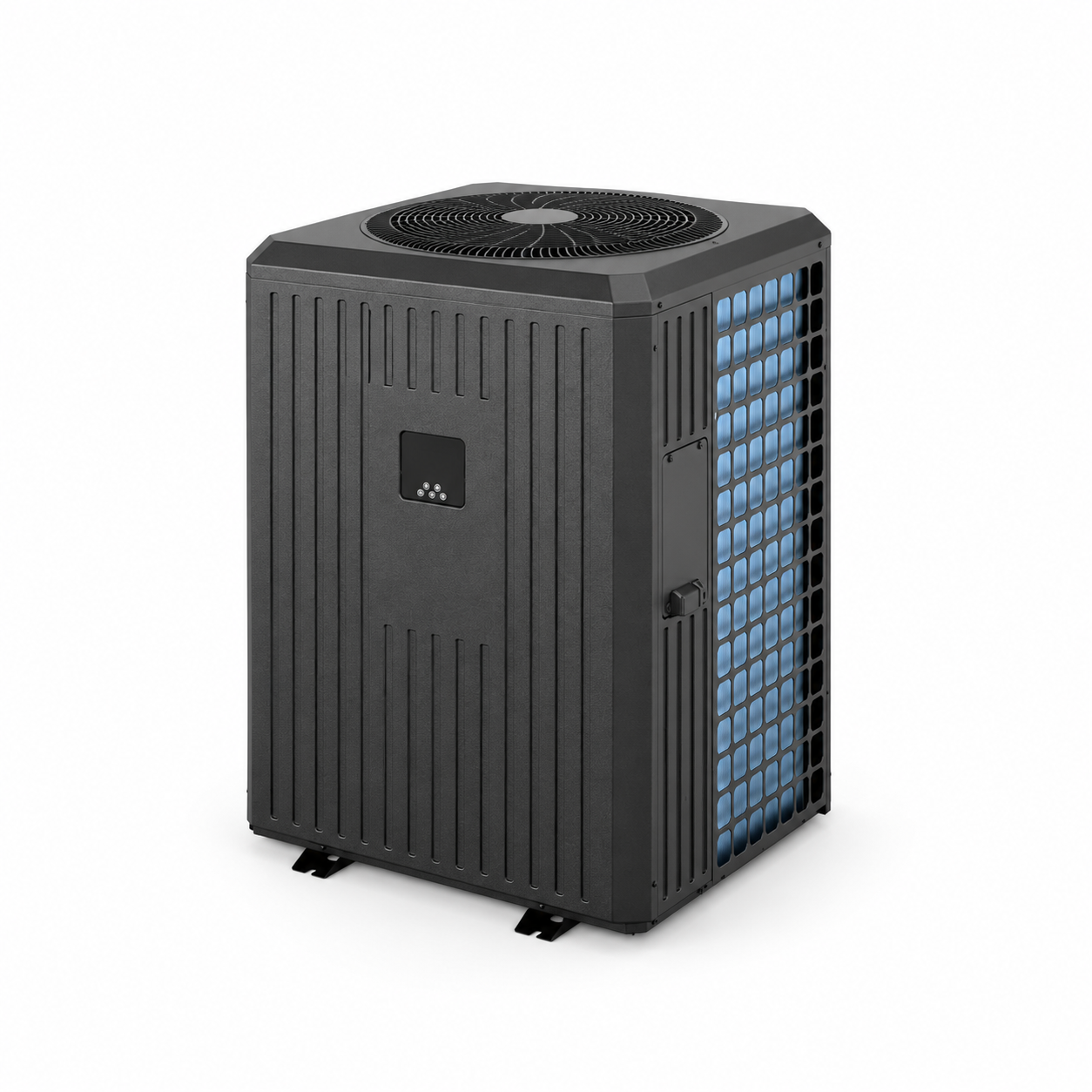

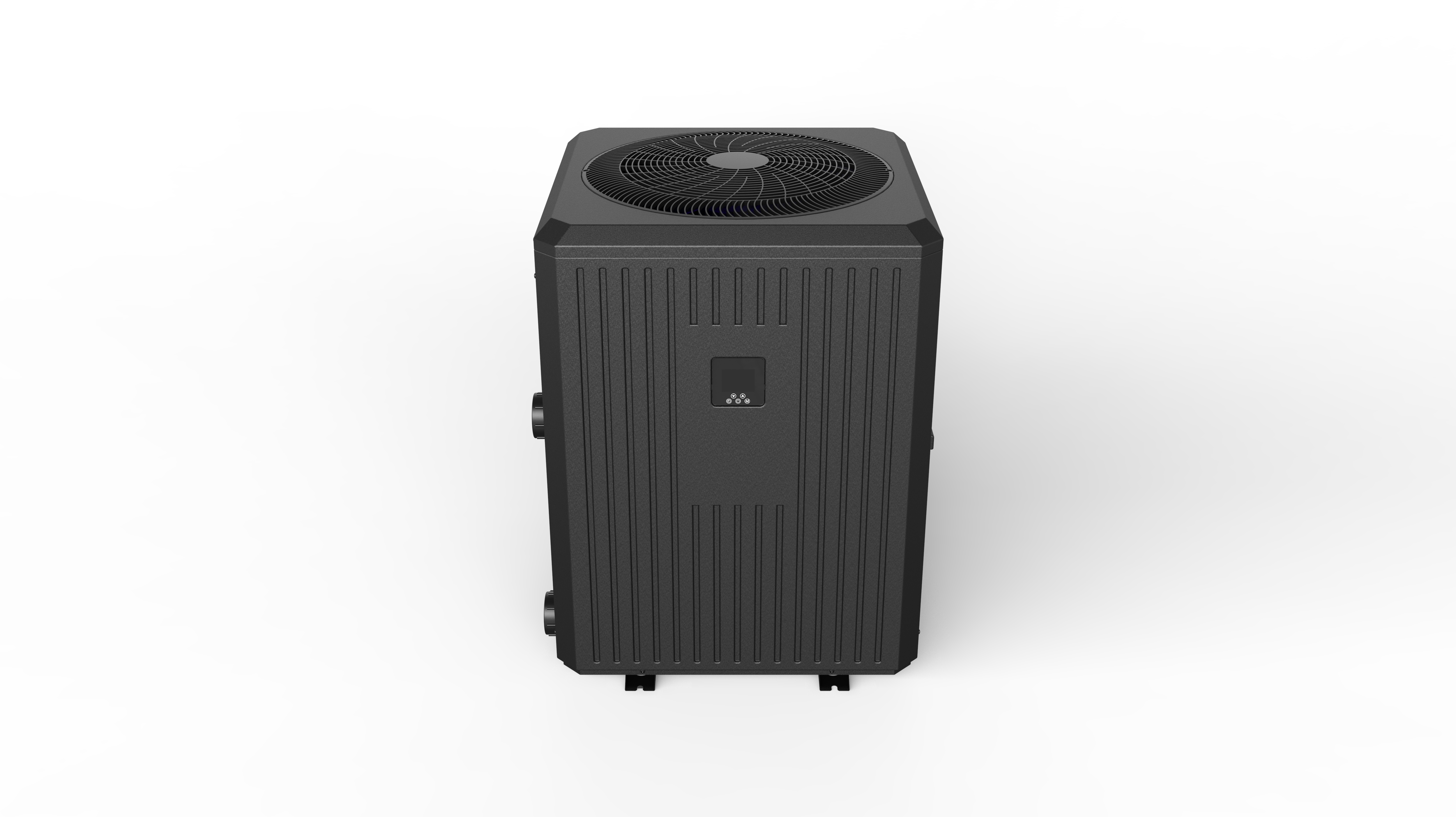

R290 Top Discharge Swimming Pool Heat Pump

R290 refrigerant with a top-discharge cabinet design.
Full-inverter compressor and DC inverter fan motor.
Pool heating and cooling with intelligent temperature control.
PV direct-drive configuration with model-specific solar input options.
8–35 kW capacity classes; single-phase and selected three-phase options.
Automatic defrosting, metal casing and IPX4 protection.

Select capacity, AC phase and PV input requirements for your project. Confirm the final model code with GOODHEAT.


Availability:



Inquire

Description

Specification

FAQ

Pool comfort.

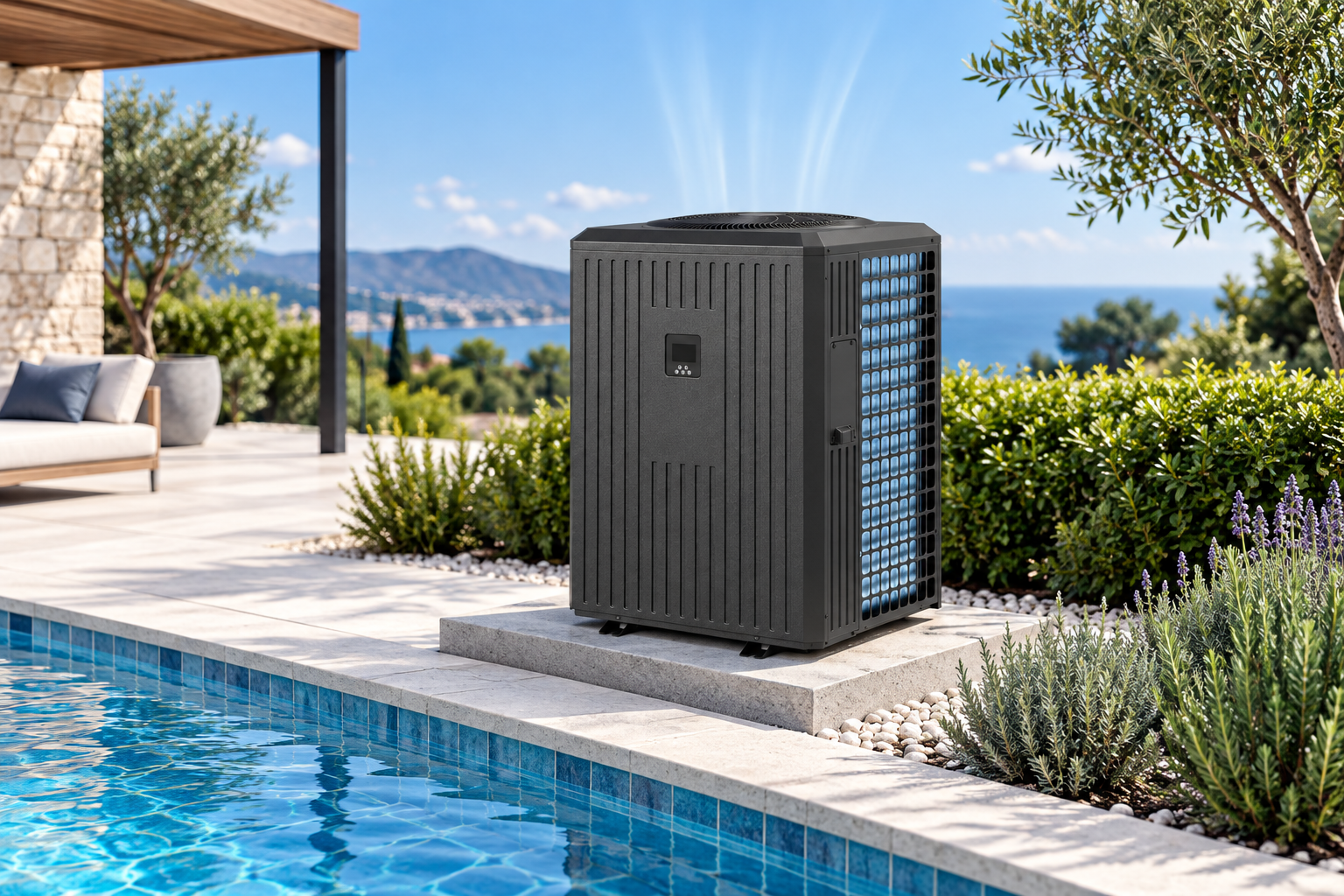

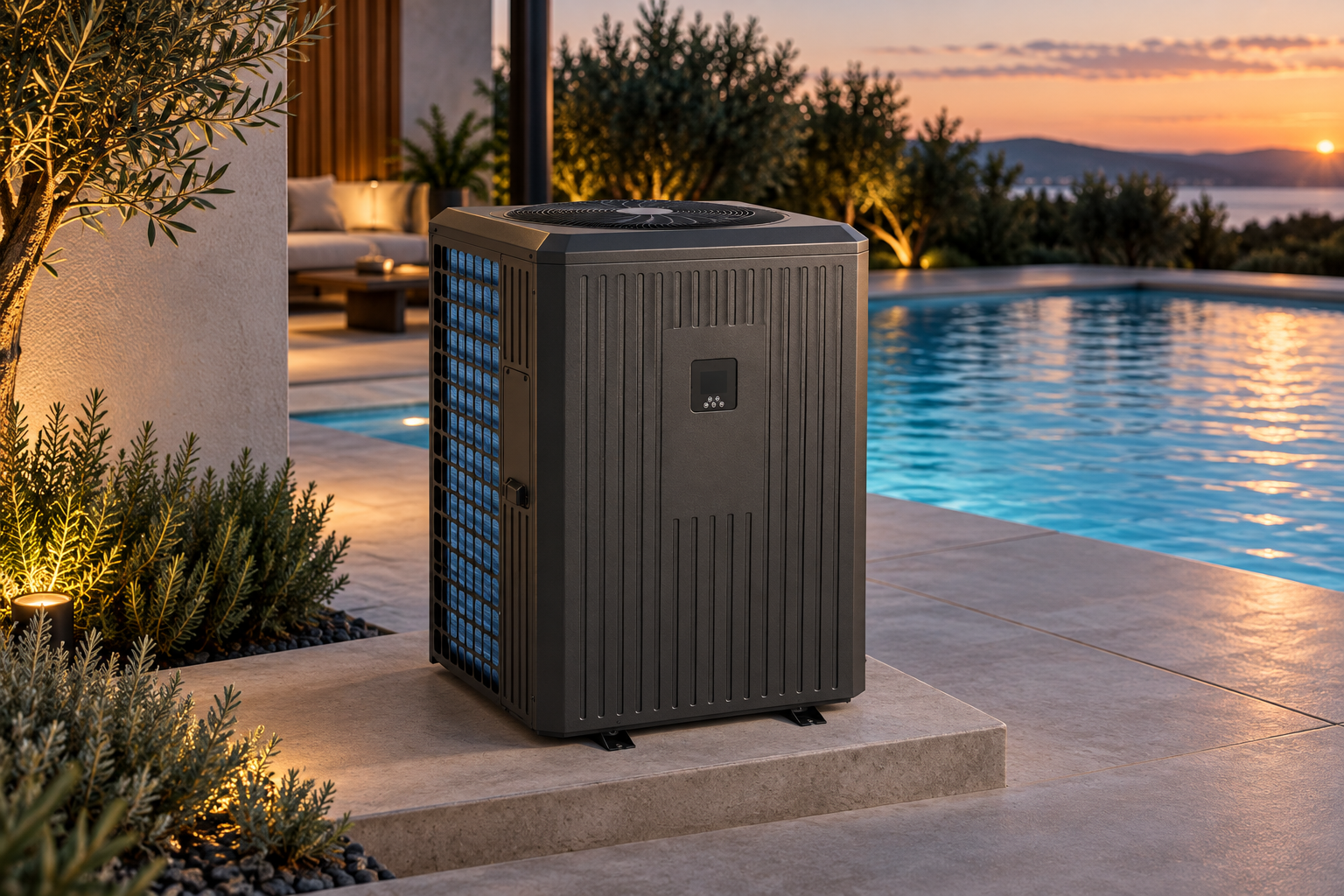

Designed to vent upwards.

The R290 pool heat pump combines a vertical cabinet with a top-mounted fan outlet. Plan an outdoor location with open space above the unit and clear airflow around the side coil.

Output that adapts.

Comfort that stays steady.

A GMCC inverter compressor, DC inverter fan motor and electronic expansion valve regulate operation as demand changes. Intelligent control helps maintain the pool temperature.

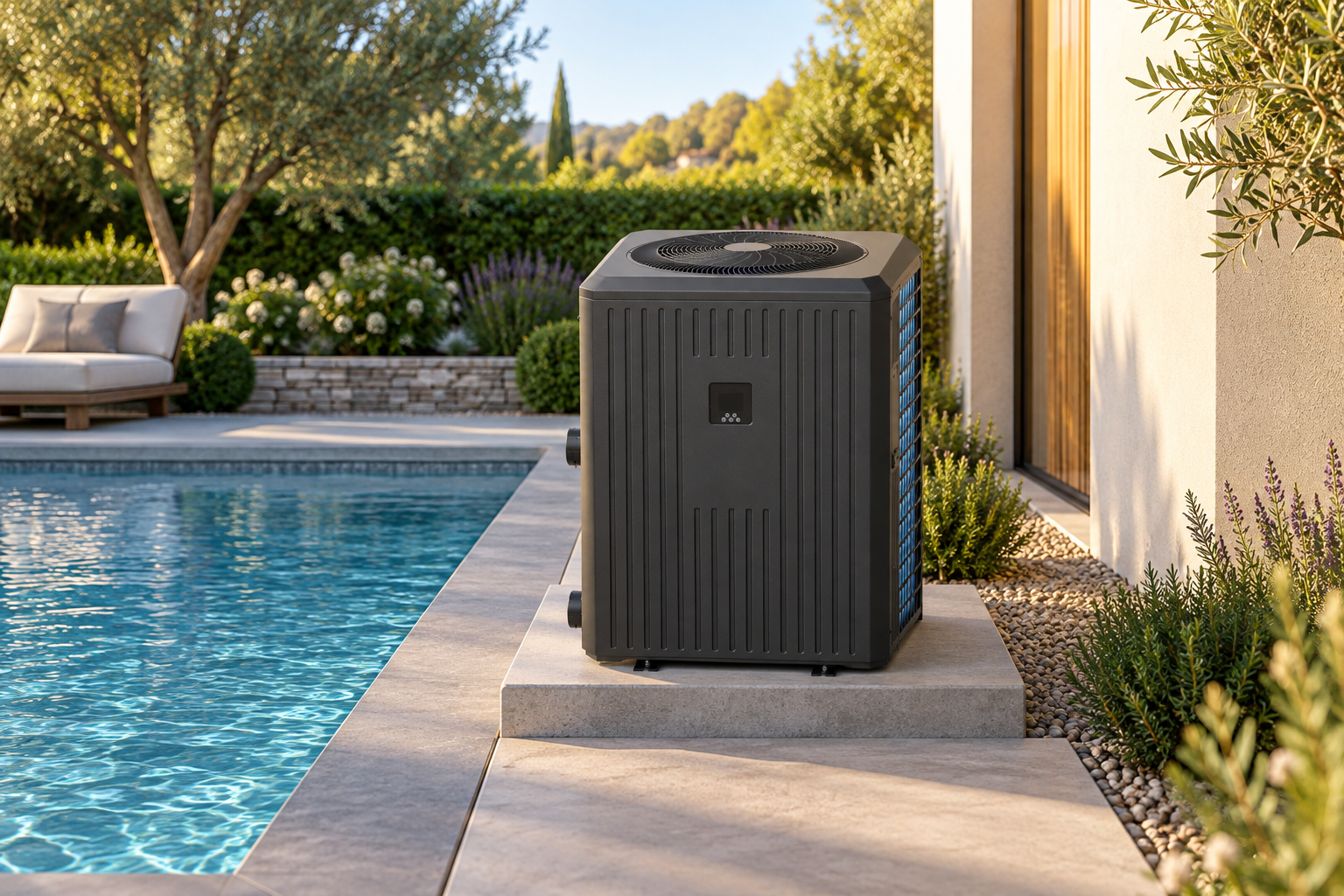

One pool.

Two comfort modes.

Raise pool-water temperature in heating mode or use cooling mode when the pool needs cooling. Compare output at the actual ambient and water temperatures for your project.

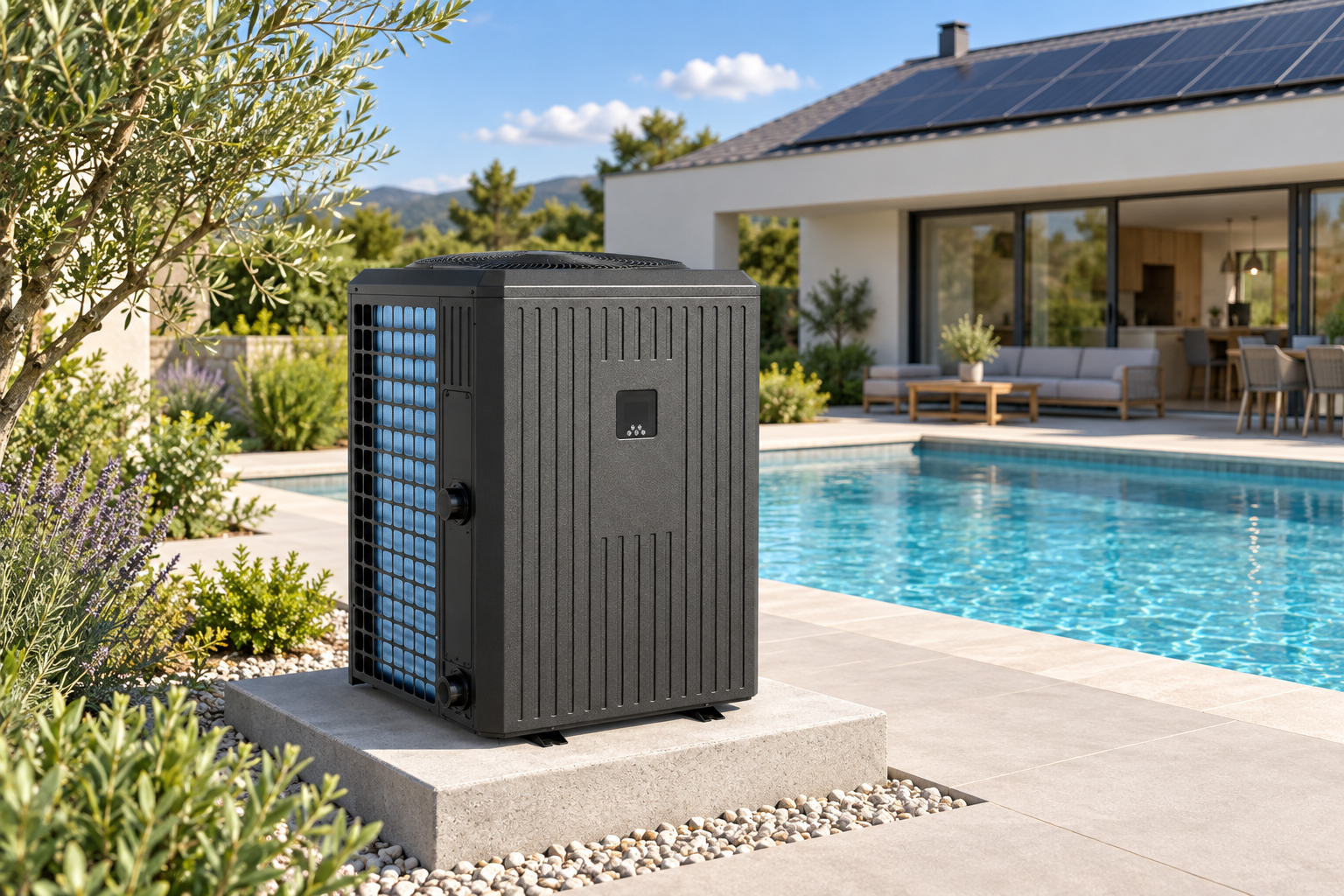

Bring solar energy

to your pool system.

The documented PV configuration accepts photovoltaic input. Solar electrical limits vary with capacity and AC supply: compare the three highlighted PV rows before selecting the array.

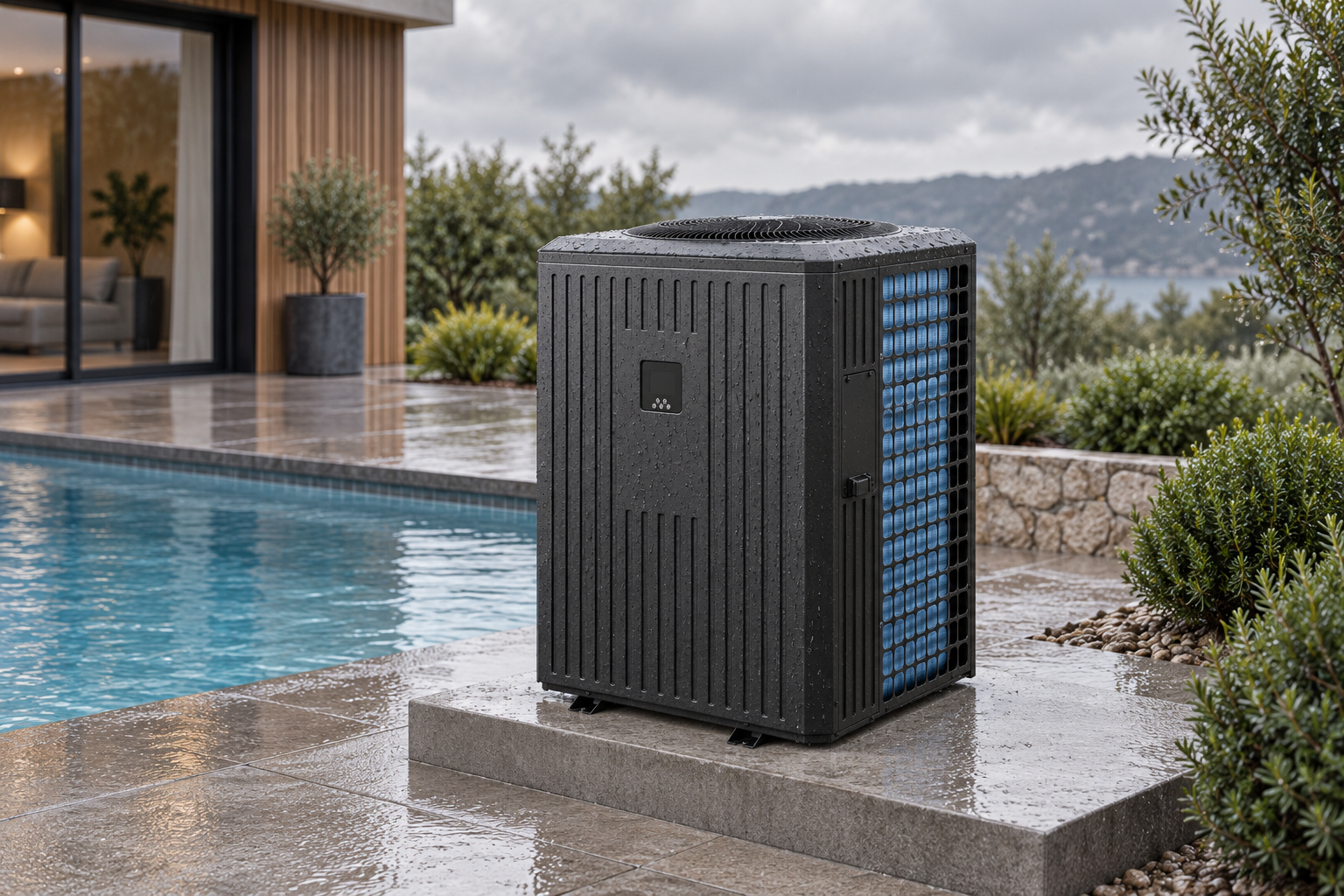

Built for the outdoors.

Ready for changing conditions.

The metal casing and declared IPX4 protection support outdoor use. Automatic reverse-cycle defrosting helps manage coil frost during applicable operating conditions.

Find the right model for your pool.

Share your pool volume, location and preferred series with GOODHEAT.

Request a Quote

Compare nine capacity and supply variants.

R290 PV configuration · scroll horizontally to compare all variants.

Capacity	8kW	10kW	13kW	16kW	19kW	27kW	27kW	35kW	35kW
Model	GSPVSV-8AA1	GSPVSV-10AA1	GSPVSV-13AA1	GSPVSV-16AA1	GSPVSV-19AA1	GSPVSV-27AA1	GSPVTV-27AA1	GSPVSV-35AA1	GSPVTV-35AA1
General Specifications
Recommended Pool Volume (m³)	15~25	18~35	25~45	30~55	35~65	50~95	50~95	65~120	65~120
Operating Ambient Temperature (°C)	−15~43
AC Power Supply (V / Ph / Hz)	220~240 / 1 / 50	220~240 / 1 / 50	220~240 / 1 / 50	220~240 / 1 / 50	220~240 / 1 / 50	220~240 / 1 / 50	380~415 / 3N / 50	220~240 / 1 / 50	380~415 / 3N / 50
PV Electrical Specifications — PV Series only
PV Max. Input Current (A)	21	21	21	42	42	42	42	42	42
Optimal PV Input Voltage Range (V)	45~400	45~400	45~400	45~450	45~450	45~450	130~750	45~450	130~750
Recommended PV Module Qty. (630 W / 50.2 V) (modules)	3	4	5	6	7	2 strings × 5 modules	10	2 strings × 7 modules	13
Heating Performance · Air 26 °C / Water inlet 26 °C, outlet 28 °C / RH 80 %
Heating Capacity (kW)	1.70~8.00	2.40~10.00	3.00~13.00	4.00~16.50	5.00~19.00	7.00~27.00			9.00~36.00
Electrical Power Input (kW)	0.10~1.18	0.15~1.50	0.18~2.00	0.25~2.50	0.30~2.93	0.42~4.20			0.53~5.22
Coefficient of Performance (COP)	6.80~16.50	6.50~16.50	6.50~16.50	6.50~16.50	6.50~16.50	6.50~16.50			6.90~16.80
Heating Performance · Air 15 °C / Water inlet 26 °C, outlet 28 °C / RH 70 %
Heating Capacity (kW)	1.40~5.90	1.90~7.80	2.30~10.50	3.50~13.00	4.50~15.00	5.50~21.00			7.00~27.00
Electrical Power Input (kW)	0.18~1.20	0.25~1.60	0.31~2.20	0.47~2.70	0.60~3.07	0.73~4.30			0.90~5.30
Coefficient of Performance (COP)	4.90~7.60	4.90~7.60	4.80~7.50	4.80~7.40	4.90~7.60	4.90~7.50			5.10~7.80
Cooling Performance · Air 35 °C / Water inlet 29 °C, outlet 27 °C
Cooling Capacity (kW)	1.00~4.50	1.30~5.30	1.70~7.50	2.10~9.00	3.00~10.50	4.50~15.50			5.00~19.00
Electrical Power Input (kW)	0.15~1.13	0.22~1.60	0.28~2.20	0.35~2.65	0.45~2.85	0.69~3.97			0.74~4.80
Energy Efficiency Ratio (EER)	3.50~6.20	3.40~6.00	3.40~6.00	3.40~6.00	3.70–6.60	3.90~6.50			4.00~6.80
Electrical & Hydraulic Data
Maximum Electrical Input Power (kW)	1.6	2.0	2.7	3.3	4.2	6.0	6.5	7.8	7.8
Maximum Input Current (A)	7.73	9.66	13.04	15.94	20.29	28.99	11.00	37.5	15.0
Water Flow Rate (m³/h)	2.5	3.8	5.2	6.5	7.8	12.0	12.0	15.0	15.0
Water Connection	DN50	DN50	DN50	DN50	DN50	DN50	DN50	DN50	DN50
Components & Construction
Refrigerant / Charge	R290/0.35kg	R290/0.38kg	R290/0.55kg	R290/0.70kg	R290/0.74kg	R290/1.00kg	R290/1.00kg	R290/1.10kg	R290/1.10kg
Heat Exchanger	Titanium
Airflow Direction	Vertical
Defrost Method	Reverse-cycle (four-way valve)
Casing Material	Metal
Ingress Protection Rating	IPX4
Acoustic Data
Noise Level at 1 m [dB(A)]	37~49	38~51	39~52	41~53	44~55	46~56			49~59
Noise Level at 10 m [dB(A)]	20~29	20~32	22~34	23~35	24~35	25~37			29~39
Dimensions & Shipping
Net Weight (kg)	50	55	65	71	73	95			113
Gross Weight (kg)	61	67	79	85	87	112			131
Unit Dimensions (mm)	534 × 560 × 668			650 × 650 × 790					730 × 730 × 980
Packaging Dimensions (mm)	600 × 560 × 820			720 × 680 × 950					800 × 760 × 1110

Find the right model for your pool.

Share your pool volume, location and preferred series with GOODHEAT.

Request a Quote

Answers for a better pool project.

Does this heat pump use R290?

Yes. The supplied R290 technical sheet identifies R290 refrigerant and a GMCC inverter compressor.

How should I select the capacity?

Can it heat and cool the pool?

Which models are available with three-phase supply?

How many PV modules are recommended?

Are AC-only specifications the same?

Does the unit have Wi-Fi or a titanium heat exchanger?

What should I check for installation?

Can I install it under a low roof?
