| Model | 60kW | 90kW | 130kW | 250kW |
| Power Supply | 380~415V/1ph/50~60Hz |
| Heating Capacity at Air 26℃/24℃, Water 26℃ in, 28℃ out |
| Heating Capacity(kW) | 25~60 | 30~90 | 40~130 | 70~250 |
| Power Input(kW) | 1.77~8.85 | 2.67~13.85 | 3.62~19.85 | 6.35~38.20 |
| Coefficient of Performance | 6.80~11.30 | 6.50~11.20 | 6.55~11.05 | 6.55~11.05 |
| Heating Capacity at Air 15℃/12℃, Water 26℃ in, 28℃ out |
Heating Capacity(kW)
| 15~55 | 25~80 | 35~105 | 60~200 |
| Power Input(kW) | 1.97~11.22 | 3.35~16.80 | 5.00~24.65 | 8.00~41.68 |
| Coefficient of Performance | 4.90~7.60 | 4.80~7.50 | 4.80~7.60 | 4.80~7.50 |
| Cooling Capacity at Air 35℃/24℃, Water 28℃ in, 26℃ out |
| Cooling Capacity(kW) | 10~36 | 15~56 | 20~80 | 40~155 |
| Power Input(kW) | 1.72~9.60 | 2.60~14.95 | 3.45~21.50 | 7.15~41.20 |
| EER | 3.75~5.80 | 3.75~5.80 | 3.75~5.80 | 3.75~5.60 |
General Data
|
| Max. Power Input(kW) | 15.0 | 20.0 | 28.0 | 56.0 |
| Max. Current(A) | 27.5 | 35.5 | 50.5 | 100.5 |

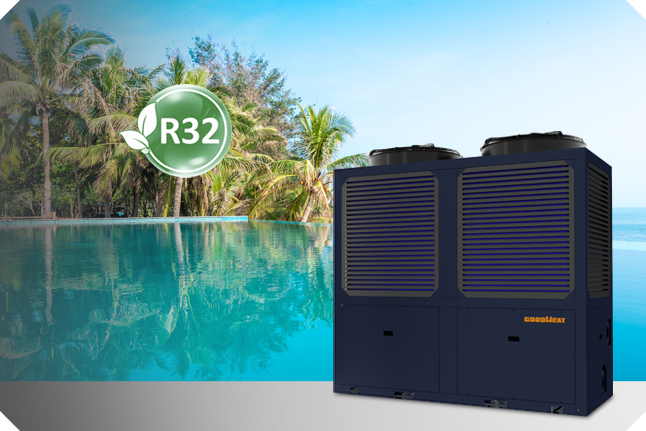

| Refrigerant | R32 |
| Heat Exchanger | Titanium |
| Expansion Valve | Electronic |
Air Flow Direction
| Vertical |
| Water Flow Volume(m3/h) | 26 | 38 | 56 | 110 |
| Working Temp. Range(℃) | -15~46 |

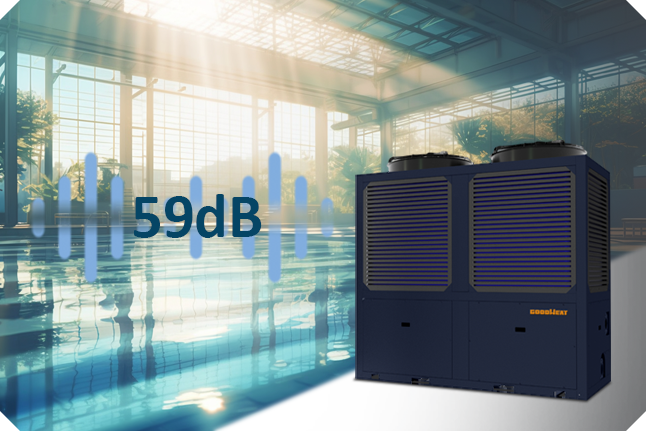

| Noise (dB(A)) | ≤60 | ≤65 | ≤68 | ≤76 |
| Net Weight(kg) | 280 | 420 | 750 | 1290 |
| Water Connection(mm) | 63 | 63 | 75 | 125 |
