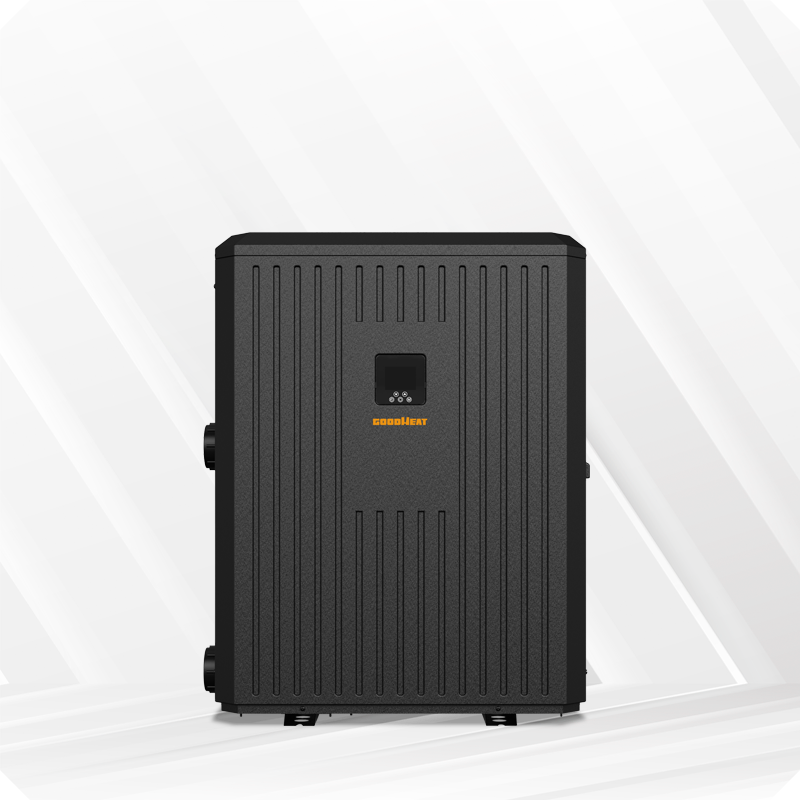

R32 Top Discharge Swimming Pool Heat Pump

  • R32 full-inverter technology with Mitsubishi compressor and DC inverter fan.
  • Top-mounted fan with vertical air discharge.
  • Heating and cooling with intelligent defrosting.
  • 7–41 kW capacity classes; selected three-phase variants.
  • Wi-Fi and Smart Life app control with scheduled operation.
  • Titanium water-side heat exchanger, ABS casing and IPX4 protection.
Availability:
Inquire

Description
Specification
FAQ

Upward airflow.

Flexible pool comfort.

R32 top discharge pool heat pump beside a swimming pool with unobstructed space above the fan

Airflow that goes upward.

The top-mounted fan directs exhaust air vertically. Plan a level installation with clear side air intake and unobstructed discharge space above the unit.

Vertical air discharge.

Upright ABS cabinet.

Follow the model-specific clearance requirements.

Adjust output to pool demand.

A Mitsubishi inverter compressor, DC inverter fan and electronic expansion valve work with intelligent water-temperature control as demand changes.

Compare efficiency at the actual air and water conditions.

Latest manual performance data used in this preview.

Low-noise modes are described in the control guide.

R32 full inverter pool heat pump installed beside a garden swimming pool at dusk
R32 pool heat pump shown in spring and summer swimming pool settings

More ways to manage comfort.

Heating, cooling and automatic modes support changing pool-temperature needs. Intelligent defrosting helps manage frost when required.

Declared ambient working range: −15 to 43 °C.

Separate heating and cooling performance data.

Output varies with operating conditions.

Manage your pool temperature.

Use local control or the Smart Life Wi-Fi functions described in the manual to adjust temperature, switch modes and schedule on/off operation.

Heating / Cooling / Auto modes.

Energy-saving, Silent and Powerful selections as documented.

Confirm the supplied controller and network setup.

Smartphone held near an R32 top discharge swimming pool heat pump
R32 top discharge pool heat pump on an outdoor pool patio after light rain

Built for a pool circuit.

A titanium water-side heat exchanger and DN50 connections support pool-water heat transfer. Match the model’s water-flow requirements with the circulation system.

IPX4 protection.

ABS cabinet.

Confirm permitted water chemistry and installation requirements.

Related Products

Find the right model for your pool.

Share your pool volume, location and preferred series with GOODHEAT.

Parameters at defined conditions.
Capacity 7kW 9kW 12kW 15kW 18kW 25kW 25kW 35kW 35kW 41kW
Model GSPVSV-7BA1 GSPVSV-9BA1 GSPVSV-12BA1 GSPVSV-15BA1 GSPVSV-18BA1 GSPVSV-25BA1 GSPVTV-25BA1 GSPVSV-35BA1 GSPVTV-35BA1 GSPVTV-41BA1
General Specifications
Recommended Pool Volume (m³) 15~25 18~35 25~45 30~55 35~65 50~95 65~120 90~160
Operating Ambient Temperature (°C) −15~43
AC Power Supply (V / Ph / Hz) 220~240 / 1 / 50 220~240 / 1 / 50 220~240 / 1 / 50 220~240 / 1 / 50 220~240 / 1 / 50 220~240 / 1 / 50 380~415 / 3N / 50 220~240 / 1 / 50 380~415 / 3N / 50 380~415 / 3N / 50
Heating Performance · Air 26 °C / Water inlet 26 °C, outlet 28 °C / RH 80 %
Heating Capacity (kW) 1.70~7.00 2.30~8.80 3.90~11.00 5.80~14.50 6.20~17.90 7.50~24.50 8.80~35.00 10.00~41.00
Electrical Power Input (kW) 0.11~1.02 0.14~1.29 0.24~1.61 0.36~2.12 0.39~2.49 0.47~3.57 0.51~5.66 0.63~5.98
Coefficient of Performance (COP) 6.80~15.98 6.82~15.97 6.82~15.96 6.82~15.95 6.82~15.96 6.85~15.98 6.86~15.96 6.86~15.98
Heating Performance · Air 15 °C / Water inlet 26 °C, outlet 28 °C / RH 70 %
Heating Capacity (kW) 1.40~5.30 1.90~7.00 2.30~9.40 3.60~12.50 4.20~15.00 5.50~21.00 6.90~28.60 7.90~35.00
Electrical Power Input (kW) 0.19~1.13 0.25~1.46 0.29~1.96 0.48~2.60 0.50~3.06 0.72~4.29 0.86~5.84 1.01~7.00
Coefficient of Performance (COP) 4.70~7.50 4.80~7.60 4.80~7.80 4.80~7.70 4.90~7.80 4.90~7.60 4.90~8.00 5.00~7.80
Cooling Performance · Air 35 °C / Water inlet 29 °C, outlet 27 °C
Cooling Capacity (kW) 1.00~4.20 1.30~5.30 1.90~6.80 2.10~9.40 2.70~11.60 3.80~14.90 4.90~19.30 5.90~23.40
Electrical Power Input (kW) 0.15~1.11 0.19~1.40 0.25~1.89 0.54~2.47 0.66~3.05 0.77~3.92 0.93~5.08 1.26~5.88
Energy Efficiency Ratio (EER) 3.50~6.00 3.50~6.10 3.40~6.50 3.60~6.30 3.40~6.20 3.80~6.70 3.40~6.40 3.10~6.30
Electrical & Hydraulic Data
Max. Power Input (kW) 1.45 1.75 2.75 3.15 3.75 5.17 4.76 6.43 7.20 9.58
Max. Current Input (A) 7.10 8.30 11.50 14.50 17.50 23.50 7.90 30.00 12.70 13.50
Water Flow Rate (m³/h) 2.5 3.5 4.5 5.5 6.5 9.0 9.0 12.0 12.0 18.0
Water Connection DN50 DN50 DN50 DN50 DN50 DN50 DN50 DN50 DN50 DN50
Components & Construction
Refrigerant R32
Heat Exchanger Titanium
Airflow Direction Vertical
Defrost Method Reverse-cycle (four-way valve)
Casing Material ABS
Acoustic Data
Noise Level at 1 m [dB(A)] 39~51 40~52 41~53 42~54 43~56 47~58 46~59 49~59
Dimensions & Shipping
Net Weight (kg) 50 55 65 71 73 95 113 115
Gross Weight (kg) 61 67 79 85 87 112 130 132
Unit Dimensions (mm) 530 × 530 × 655 650 × 650 × 790 730 × 730 × 980
Packaging Dimensions (mm) 600 × 560 × 820 720 × 680 × 950 800 × 760 × 1110

The older spreadsheet and live page contain different heating-input, COP and small-unit dimension values. Confirm the final released datasheet and nameplate before publication. The older sheet’s 50% COP rows are omitted because they are not validated in the newer manual.


50 / 60 Hz follows the supplied documentation; confirm frequency approval for the ordered variant. Three-phase neutral requirements and acoustic measurement method require model-specific confirmation.

Find the right model for your pool.

Share your pool volume, location and preferred series with GOODHEAT.

Details for your project.

How is the air discharged?

Exhaust leaves vertically through the top fan. Keep overhead space clear and maintain the specified intake and service clearances.

Does it support both heating and cooling?

Which models use three-phase power?

Can I control it by phone?

Why is COP up to 16 not shown here?

Is there a PV direct-drive version in this page?

What information is needed for selection?
