Model
| 10kW | 12kW | 14kW | 17kW | 20kW | 22kW | 27kW | 27kW | 32kW | 32kW | 40kW |
| GSPVSHP-10AA1 | GSPVSHP-12AA1 | GSPVSHP-14AA1 | GSPVSHP-17AA1 | GSPVSHP-20AA1 | GSPVSHP-22AA1 | GSPVSHP-27AA1 | GSPVTHP-27AA1 | GSPVSHP-32AA1 | GSPVTHP-32AA1 | GSPVTHP-40AA1 |
| Power Supply | 220~240V/1ph/50Hz
| 380~415V/3ph/50Hz | 220~240V/1ph/50Hz | 380~415V/3ph/50Hz
|
| Advised Pool Volume(m³) | 18~35 | 25~40 | 30~50 | 35~60 | 40~65 | 45~75 | 55~90 | 55~90 | 65~105 | 65~105 | 75~120 |

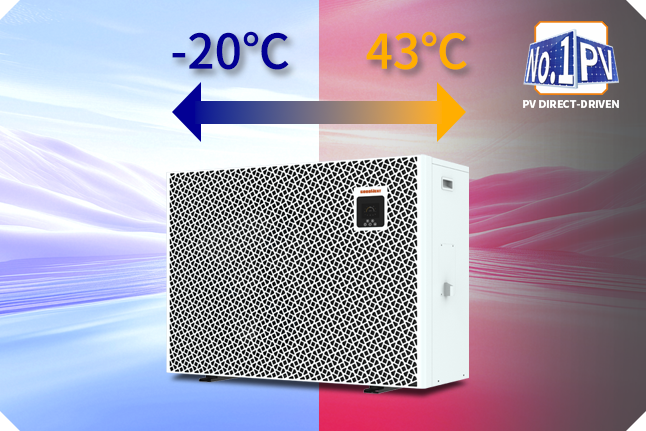

| Operating Air Temp.(℃) | -20~43
|
PV Max. Input Voltage Range(V)
| 80~370
| 120~370
| 310~560
|
Performance Condition: Air 26℃, Water 26℃, Humidity 80%
|
| Heating Capacity(kW) | 9.5~1.3 | 12~3.0 | 14~3.5 | 16.5~4.2 | 20~5.0 | 22.5~5.8 | 26.5~6.8 | 26.5~6.8 | 32~8.0 | 32~8.0 | 40~10.0 |
| Power Input(kW) | 0.11~1.25 | 0.13~1.54 | 0.16~1.84 | 0.18~2.23 | 0.22~2.7 | 0.25~3.04 | 0.30~3.58 | 0.30~3.58 | 0.35~4.44 | 0.35~4.44 | 0.44~5.56 |

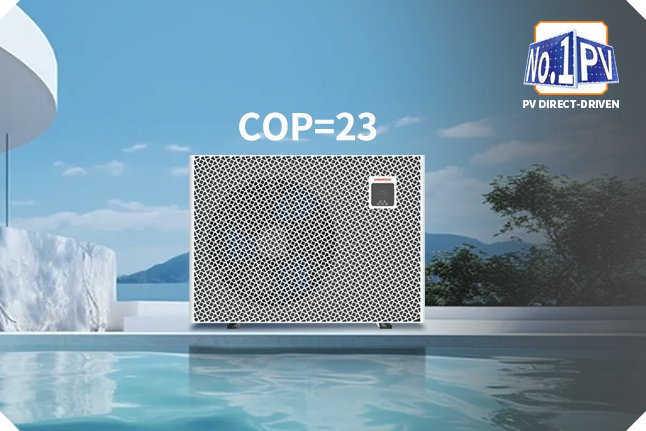

| COP | 23.2~7.6 | 23.5~7.8 | 23.2~7.6 | 23.2~7.4 | 23.2~7.4 | 23.2~7.4 | 22.8~7.4 | 22.8~7.4 | 22.8~7.2 | 22.8~7.2 | 22.8~7.2 |
Performanc Condition: Air 15℃, Water 26℃， Humidity 70%
|
| Heating Capacity(kW) | 6.5~1.63 | 8.6~2.15 | 9~2.25 | 11~2.75 | 13.5~3.38 | 15.5~3.88 | 18~4.5 | 18~4.5 | 22.5~5.63 | 22.5~5.63 | 28.5~7.13 |
| Power Input(kW) | 0.2~1.2 | 0.24~1.51 | 0.27~1.7 | 0.31~2.12 | 0.4~2.65 | 0.48~2.92 | 0.54~3.46 | 0.54~3.46 | 0.69~4.33 | 0.69~4.33 | 0.88~5.7 |
| COP | 8.0~5.4 | 8.9~5.7 | 8.2~5.3 | 8.8~5.2 | 8.5~5.1 | 8.1~5.3 | 8.3~5.2 | 8.3~5.2 | 8.1~5.2 | 8.1~5.2 | 8.1~5.0 |
| Performance Condition: Air 35℃, Water 28℃, Humidity 80% |
| Cooling Capacity(kW)(optional) | 4.5 | 5.5 | 6.5 | 8.5 | 10 | 11.5 | 13 | 13 | 15 | 15 | 18.9 |

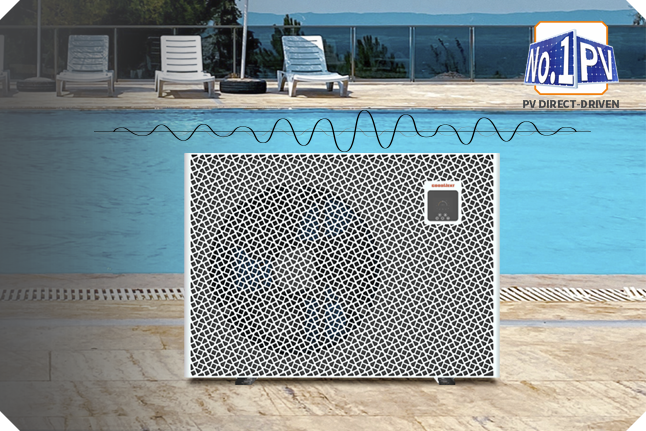

| Sound Pressure at 1m (dB(A)) | 36.6~43.4 | 37.7~44.8 | 37.8~45.9 | 41~46.7 | 41.5~47.3 | 41.9~49.5 | 39.7~49.8 | 39.7~49.8 | 42.1~50.3 | 42.1~50.3 | 41.5~50.5 |
Sound Pressure of 50% capacity at 1m (dB(A))
| 37.6 | 38.8 | 40.3 | 42.7 | 42.5 | 43.3 | 43.1 | 43.1 | 45.2 | 45.2 | 42.5 |
| Sound Pressure at 10m (dB(A)) | 16.6~23.4 | 17.7~24.8 | 17.8~25.9 | 21~26.7 | 21.5~27.3 | 21.9~29.5 | 19.7~29.8 | 22.1~30.3 | 22.1~30.3 | 22.1~30.3 | 21.5~30.5 |

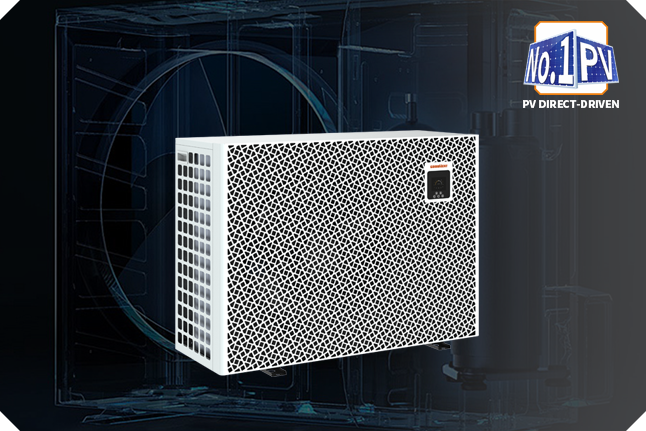

| Compressor | Twin-Rootary DC Inverter |
| Heat Exchanger | Titanium Heat Exchanger |
| Casing | Metal Casing
|
| Net Dimensions(L*W*H)(mm) | 880*340*590
| 920*380*650
| 1092*445*742 | 1200*530*950 |
| Packed Dimensions(L*W*H)(mm) | 930*400*710
| 990*440*761
| 1150*460*870
| 1270*580*1070
|
| Note: The data above is for reference only. Please refer to the nameplate for the unit if for more specific data. |
