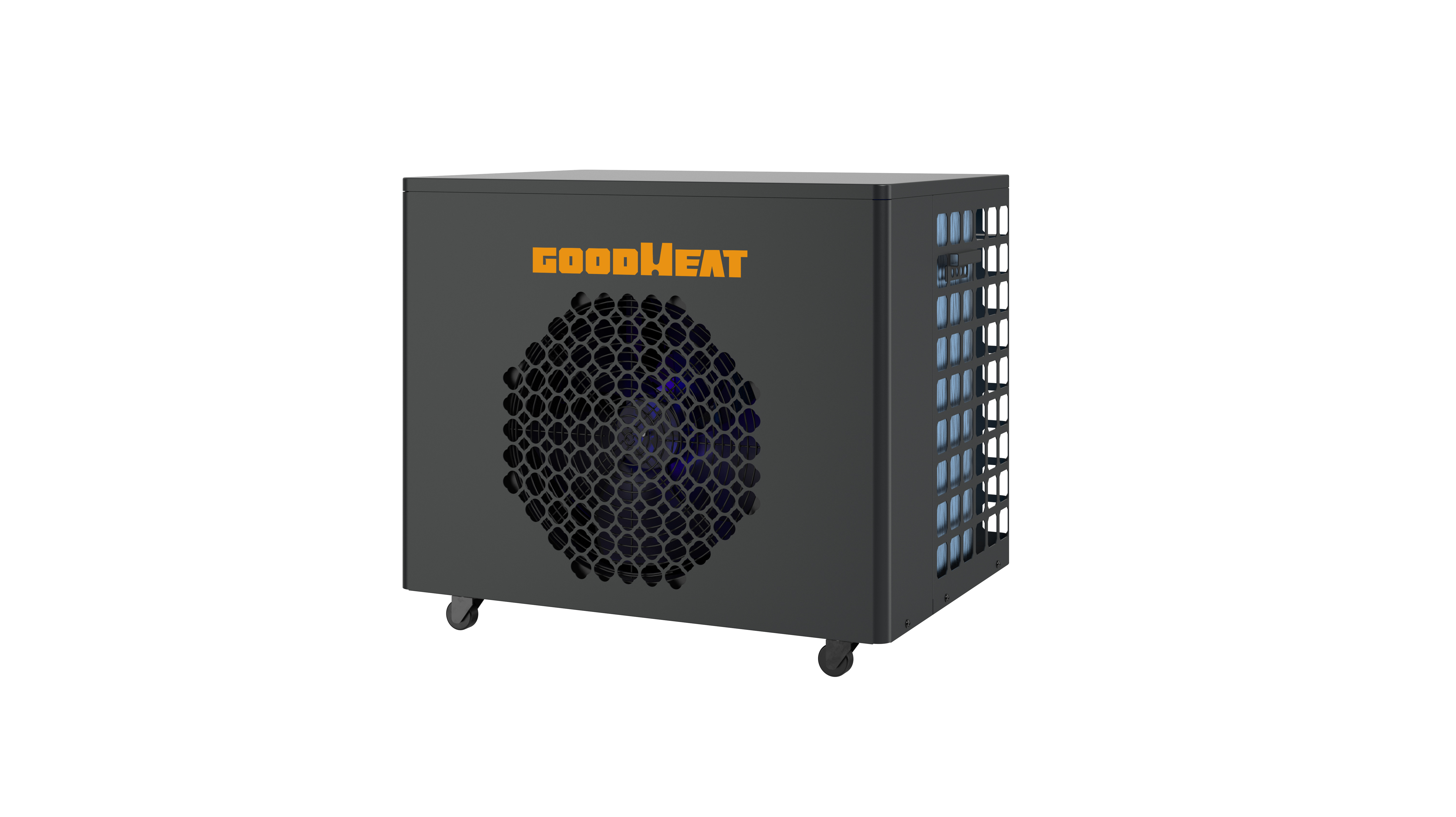

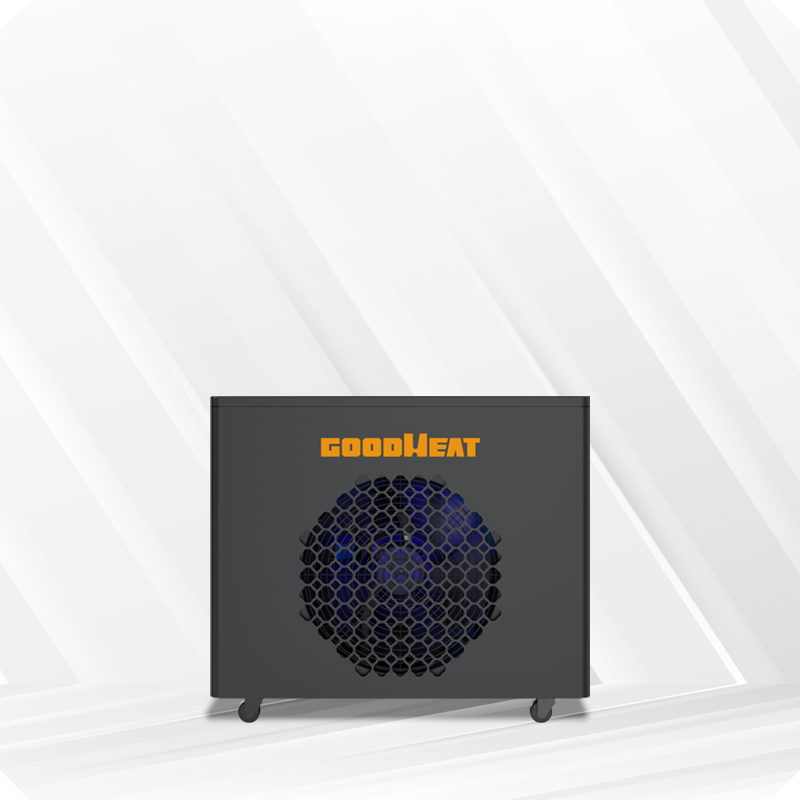

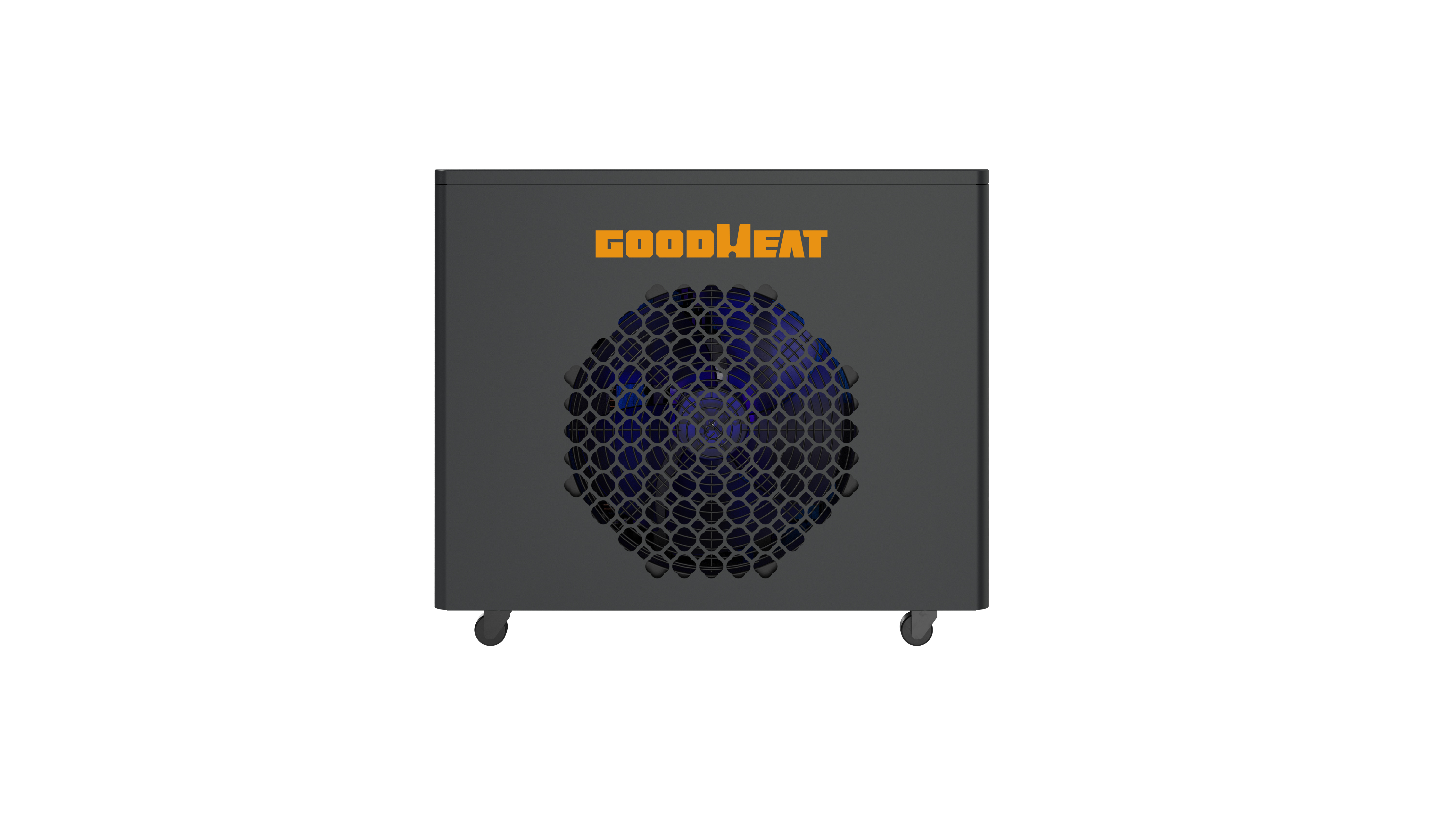

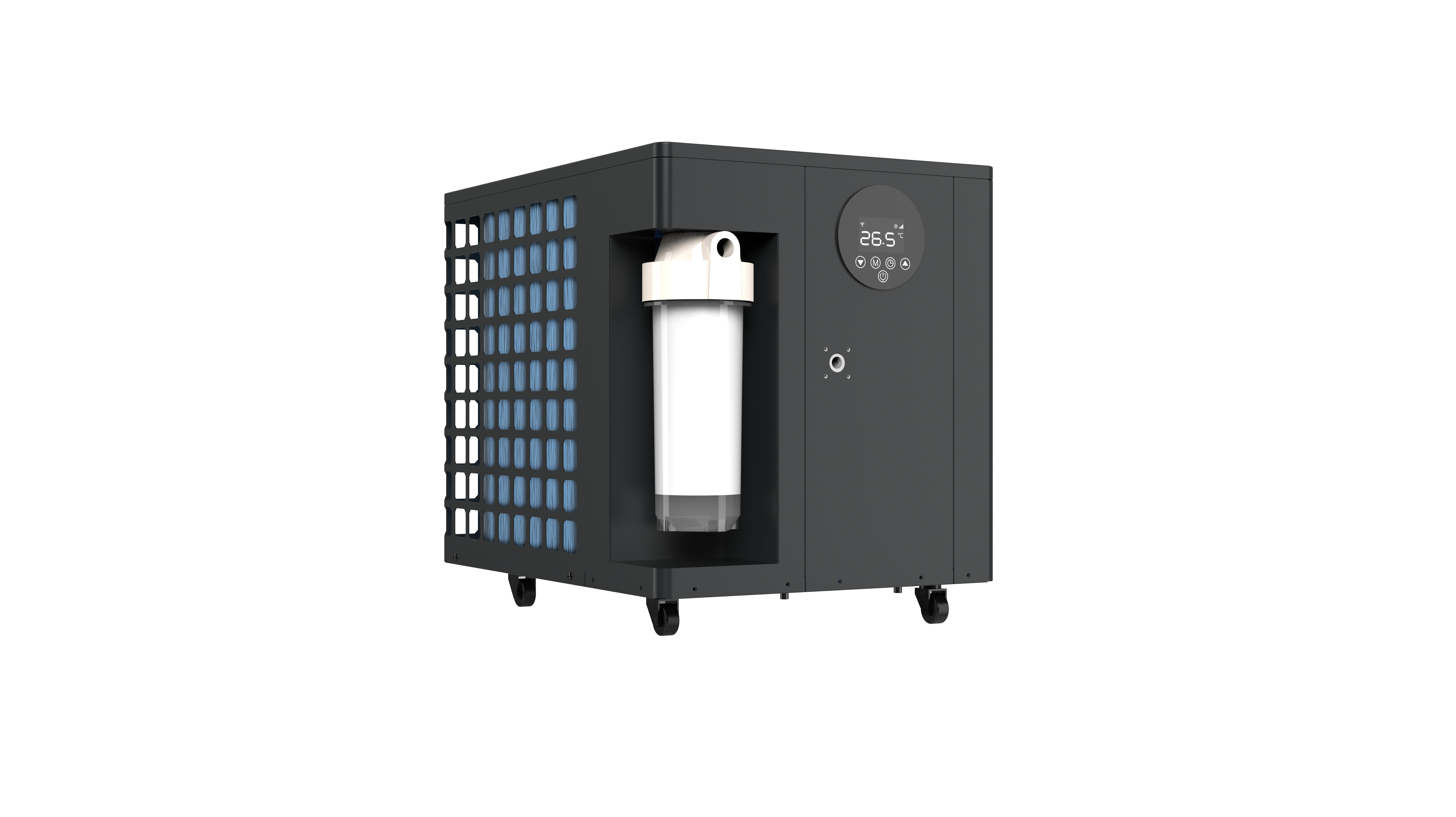

R290 Ice Bath Chiller

  • R290 refrigerant with heating, cooling and automatic modes.
  • 2.0 kW cooling capacity at air 27 °C / outlet water 5 °C.

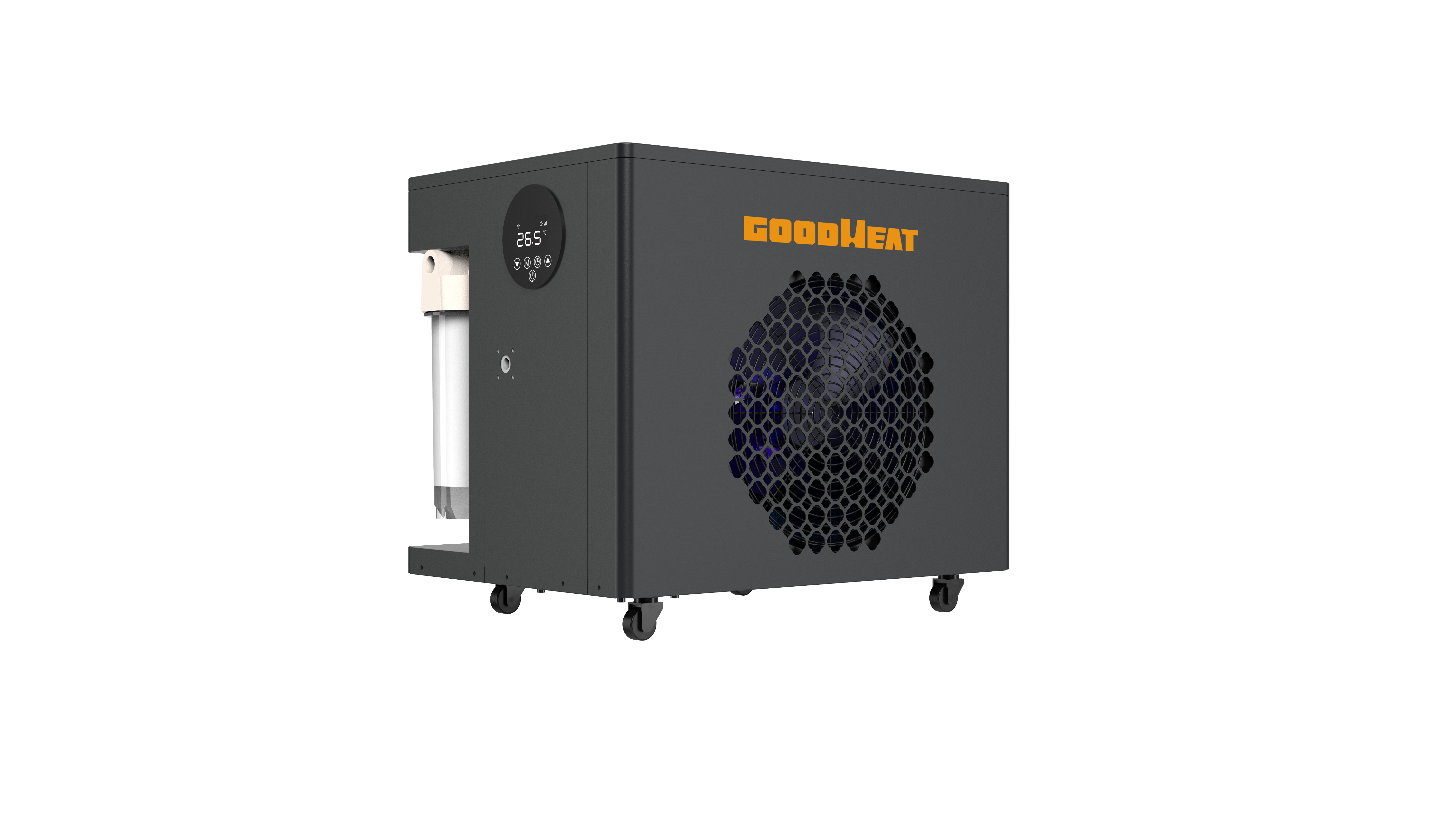

  • Built-in circulating water pump, filter and ozone generator.
  • LCD wired controller, Wi-Fi control and three timer groups.
  • Titanium water-side heat exchanger and IPX4 protection.
  • Compact cabinet with carry handles.
Availability:
Inquire

Description
Specification
FAQ

Cold plunge control.

Heating flexibility.

R290 ice bath chiller connected to an insulated cold plunge tub on an outdoor patio

Cold water.

Defined performance.

Deliver 2.0 kW cooling capacity at air 27 °C / outlet water 5 °C / 80% RH. A separate low-water-temperature test records 2.1 kW at air 15 °C / outlet water 2 °C / 70% RH.

R290 refrigerant, 300 g charge.

Compare output at the water temperature you need.

Confirm the minimum selectable temperature for your controller.

One system.

More temperature choices.

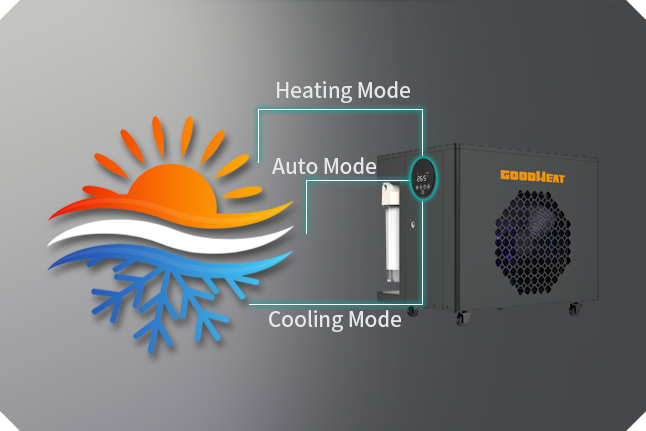

Switch between heating, cooling and automatic modes. The declared heating water-temperature range is 15–40 °C, with 5.49 kW heating output at air 27 °C / inlet–outlet water 26–28 °C / 80% RH.

Cooling ambient operating range: 10–43 °C.

Heating ambient operating range: -5 to 43 °C.

R290 ice bath chiller beside a plunge tub in cool morning and warm evening settings
R290 ice bath chiller beside a plunge pool with clear water

Circulation and water care.

Built in.

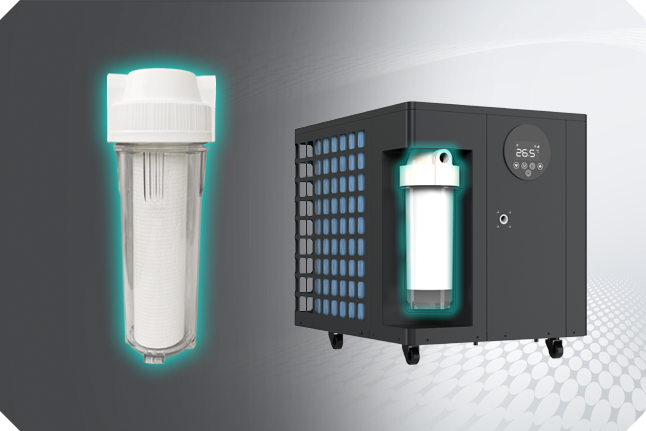

The documented configuration includes a circulating pump, filter and ozone generator. These integrated components support a compact bath-water circulation system.

Suggested water flow: 2.5 m³/h.

Titanium water-side heat exchanger.

Maintain water quality and service the filter as required.

Set it locally.

Manage it remotely.

Use the LCD wired controller or the Wi-Fi functions described in the Smart Life app guide. Adjust target temperature and operating mode, and use the controller’s timer settings to plan operation.

Three timer groups on the wired controller.

Celsius / Fahrenheit switching.

Smart Life app setup and device sharing.

Smartphone held beside an outdoor cold plunge tub and R290 ice bath chiller
Compact R290 ice bath chiller with caster wheels beside an outdoor plunge tub

A compact cabinet.

A considered installation.

The 578 × 422 × 448 mm cabinet weighs 42 kg and includes carry handles. Horizontal airflow and IPX4 protection support an outdoor layout planned around clear ventilation, drainage and service access.

220–240 V, 1~, 50 Hz supply.

Keep the unit upright when moving.

Follow the model-specific R290 installation requirements.

Related Products

Find the right model for your pool.

Share your pool volume, location and preferred series with GOODHEAT.

Performance at defined conditions.
Capacity 5kW
Model GWCSH-5AA1
General Specifications
Heating Operating Ambient Temperature (°C) −5~43
Cooling Operating Ambient Temperature (°C) 10~43
Heating Water Temperature Range (°C) 15~40
Cooling Water Temperature Range (°C) 2~28
AC Power Supply (V / Ph / Hz) 220~240 / 1 / 50
Cooling Performance · Air 35 °C / Water outlet 27 °C, Humidity 40%
Cooling Capacity (kW) 2.90
Power Input (kW) 1.07
Current Input (A) 4.73
Energy Efficiency Ratio (EER) 2.72
Cooling Performance · Air 27 °C / Water outlet 5 °C, Humidity 80%
Cooling Capacity (kW) 2.00
Power Input (kW) 0.69
Current Input (A) 3.06
Energy Efficiency Ratio (EER) 2.90
Cooling Performance · Air 15 °C / Water outlet 5 °C, Humidity 70%
Cooling Capacity (kW) 2.30
Electrical Power Input (kW) 0.67
Operating Current (A) 2.96
Energy Efficiency Ratio (EER) 3.45
Cooling Performance · Air 15 °C / Water outlet 2 °C, Humidity 70%
Cooling Capacity (kW) 2.10
Power Input (kW) 0.66
Current Input (A) 2.91
Energy Efficiency Ratio (EER) 3.20
Heating Performance · Air 27 °C / Water inlet 26 °C, outlet 28 °C / RH 80 %
Heating Capacity (kW) 5.49
Power Input (kW) 1.24
Current Input (A) 5.44
Coefficient of Performance (COP) 4.42
Heating Performance · Air 15 °C / Water inlet 26 °C, outlet 28 °C / RH 70 %
Heating Capacity (kW) 3.97
Power Input (kW) 1.30
Current Input (A) 5.72
Coefficient of Performance (COP) 3.05
Heating Performance · Air 27 °C / Water inlet 38 °C / RH 70 %
Heating Capacity (kW) 5.05
Power Input (kW) 1.46
Current Input (A) 6.42
Coefficient of Performance (COP) 3.50
Electrical & Hydraulic Data
Max. Power Input (kW) 1.8
Max. Current Input² (A) 9.3
Water Flow Rate (m³/h) 2.5
Water Connection DN50
Components & Construction
Refrigerant / Charge R290/0.30kg
Heat Exchanger Titanium
Airflow Direction Horizontal
Casing Material Metal
Ingress Protection Rating IPX4
Acoustic Data
Noise Level [dB(A)] 49
Dimensions & Shipping
Net Weight (kg) 42
Gross Weight (kg) 48
Unit Dimensions (mm) 578 × 422 × 448
Packaging Dimensions (mm) 665 × 464 × 535

Find the right model for your pool.

Share your pool volume, location and preferred series with GOODHEAT.

Details before you specify.

Does it heat as well as cool?

Yes. The manual documents Heating, Cooling and Auto modes.

Are pump, filtration and ozone included?

Can I set the water to 2 °C?

Can I control it by phone?

How long will it take to cool my tub?

How should it be installed?

Which water fittings are required?
