| Model | 210L | 270L | 320L |
| GHWVSH-210AA1 | GHWVSH-270AA1 | GHWVSH-320AA1 |
| Power Supply | 220~240V/1ph/50~60Hz |
| Rated Heating Capacity(kW) | 3 | 3 | 3 |
| Rated Power Input(kW) | 0.577 | 0.577 | 0.577 |
| Coefficient of Performance | 5.2 | 5.2 | 5.2 |
| Max. Power Input(kW) | 3.1 | 3.1 | 3.1 |
| Max. Current Input(A) | 16 | 16 | 16 |
| Water Tank Volume(L) | 210 | 270 | 320 |
| Refrigerant | R290 |

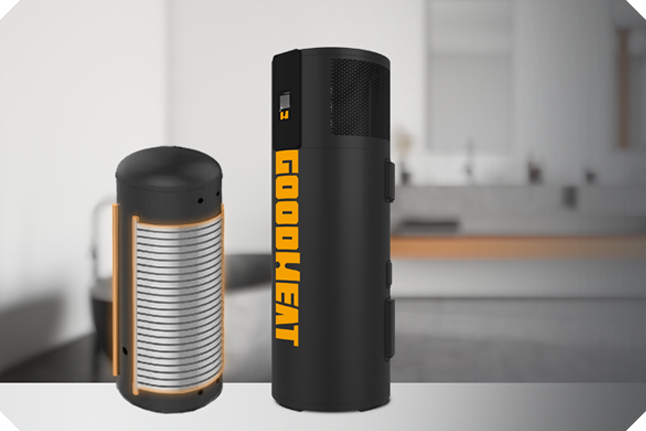

| Heat Exchanger | Microchannel |
| Defrosting Method | By 4-way Valve |
| Water Proof Level | IPX4 |
| Max. Water Tank Pressure(MPa) | 0.85 |
| Outer Casing/Shape | Metel |
| Expansion Valve | Electronic |
| Air Flow(m³/h） | 1000 |
| Air Discharge | Horizontal |
| Air Duct Diameter | Non-ducted |
| Electric Heater | Rated Power(kW) | 1.6 |
| Rated Current(A) | 7.1 |
| Default Water Temp.(℃) | 60 |
| Max. Water Temp.(℃) | 75 |
| Operating Ambient Temp.(℃) | -7~46 |
| Noise(dB(A)) | 43 |
| Water Pipe Diameter(inch) | G3/4 |
| Net Weight(kg) | 116 | 130 | 146 |
| Gross Weight(kg) | 126 | 150 | 166 |
| Unpacked Dimensions(L*W*H)(mm) | 650*650*1650 | 650*650*1870 | 650*650*2090 |
| Packed Dimensions(L*W*H)(mm) | 720*720*1785 | 720*720*2005 | 720*720*2225 |
| Heating Capacity at Air 20℃/15℃, Water Temp. from 15℃~55℃ |
| Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data. |
