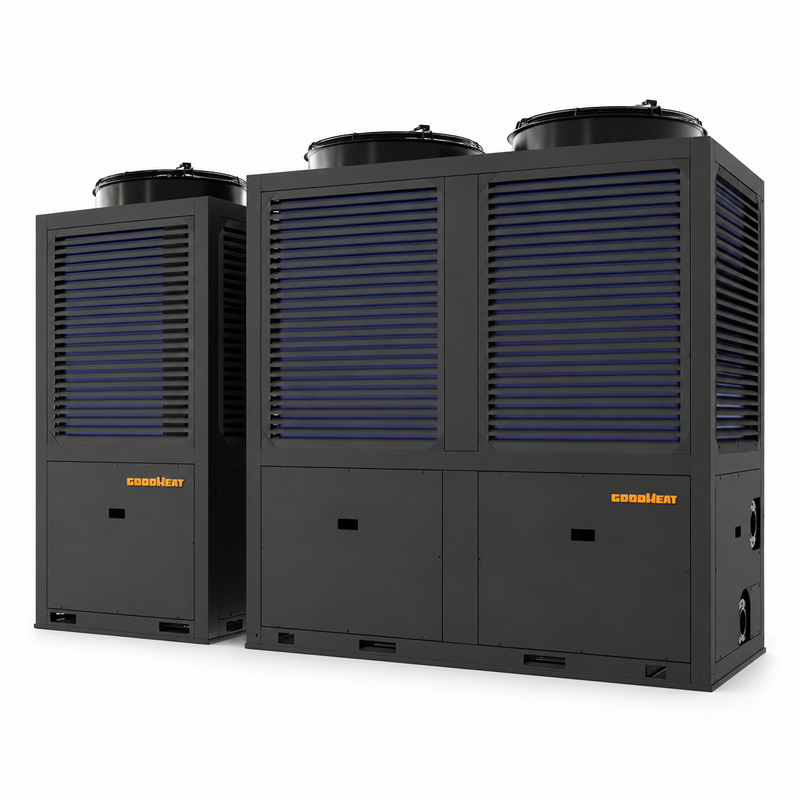

R290 Commercial Heat Pump Water Heater

  • ​​​R290 refrigerant for commercial hot-water projects.
  • 52 / 75 / 115 kW heating capacity at air 20/15°C, water 15→55°C.
  • Hitachi inverter compressors across the three listed models.
  • Maximum outlet water temperature: 70°C.*
  • Declared ambient operating range: −15 to 45°C.*
  • Coaxial water-side heat exchanger; three-phase 380 V supply.

*Maximum outlet temperature and ambient range are separate limits; confirm the operating envelope.



Availability:
Inquire

Description
Specification
FAQ

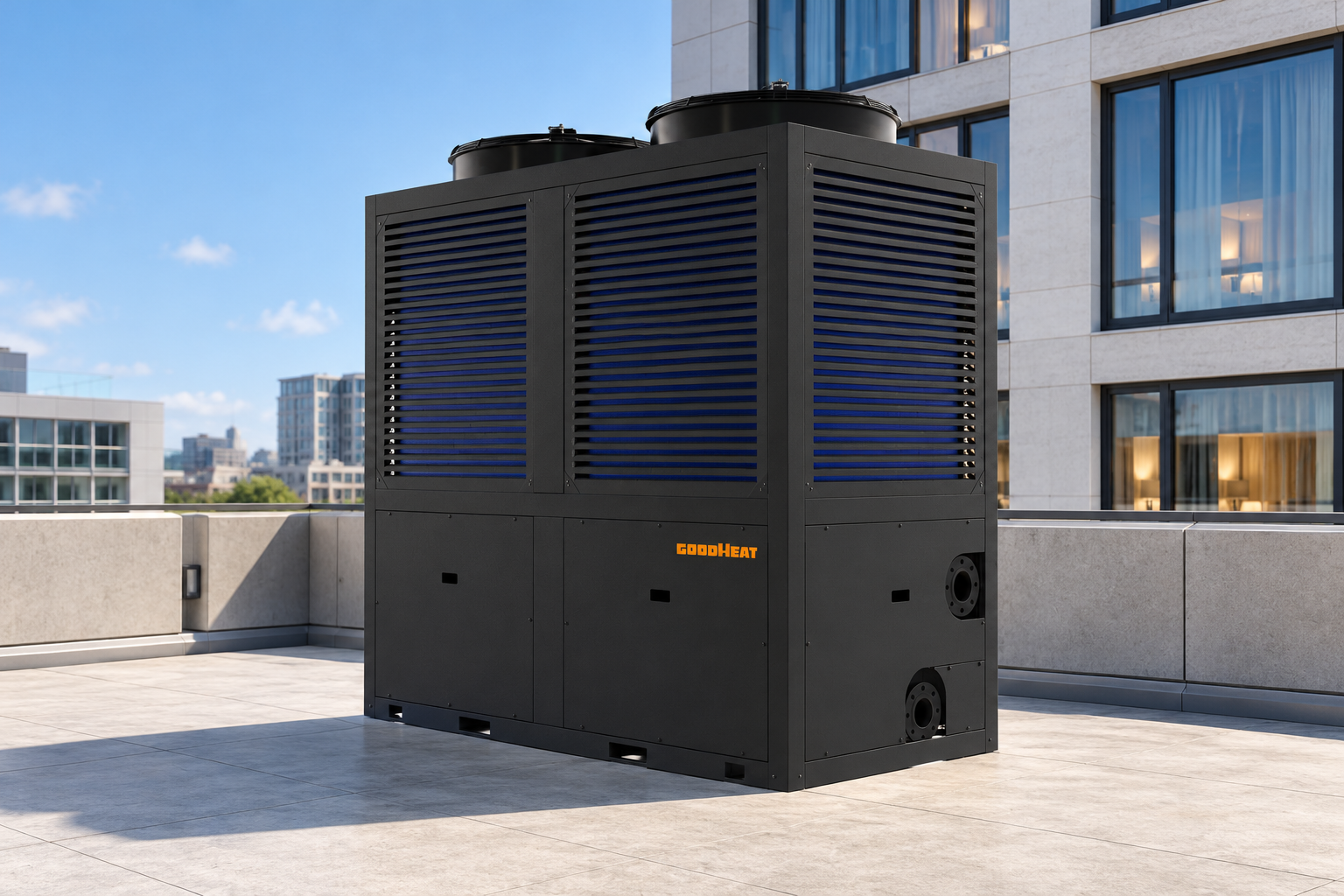

GOODHEAT R290 commercial heat pump water heater on a hotel service terrace

Capacity for commercial demand.

Choose from three listed capacity classes for central hot-water projects. At the stated standard test condition, heating outputs are 52, 75 and 115 kW.

Compare hotel, accommodation and shared-facility demand by project.

Select against peak draw-off, recovery time and storage volume.

Capacity varies with air and water conditions.

Outlet water up to 70°C.

The specification lists a maximum outlet water temperature of 70°C for all three models. This supports evaluation of higher-temperature hot-water requirements.

Standard performance is rated for water heating from 15 to 55°C.

Maximum outlet temperature is separate from the rated performance point.

Confirm the permitted temperature at the project design ambient.

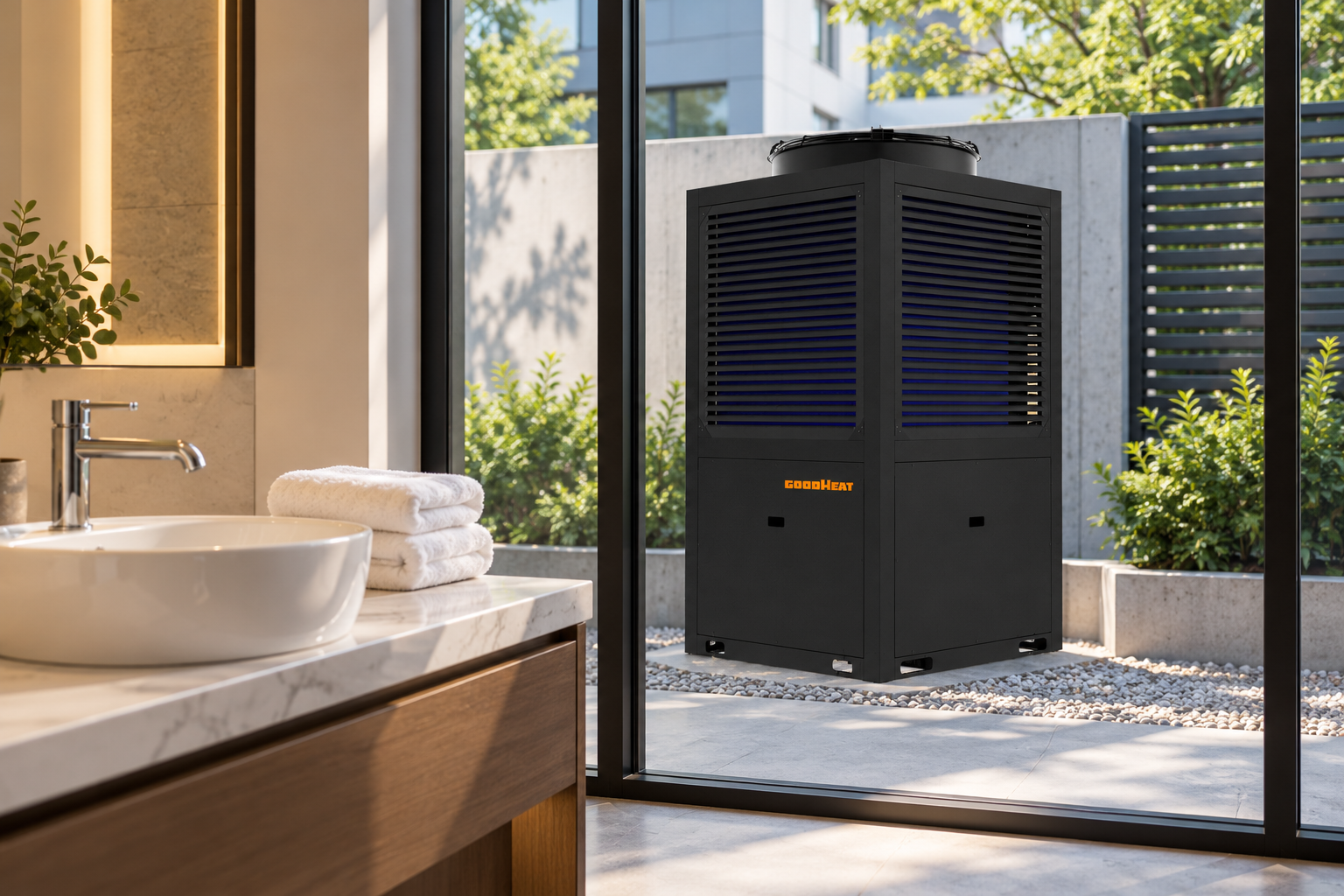

GOODHEAT R290 heat pump water heater outside a building with a washbasin visible indoors

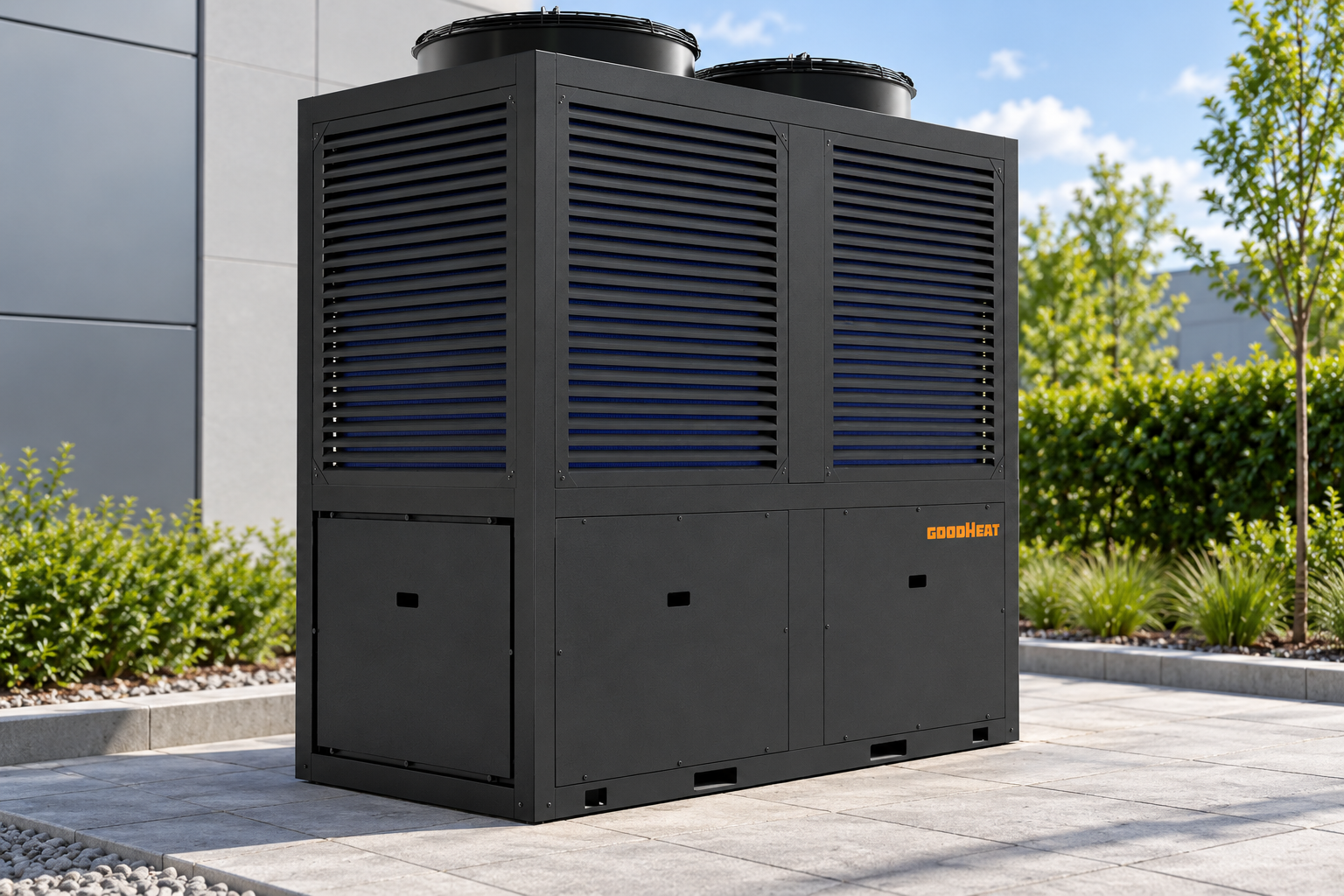

GOODHEAT R290 commercial inverter heat pump with twin top fans and service panels

Hitachi inverter.

Three capacity choices.

All three columns specify Hitachi inverter compressors. Standard-condition COP values are 4.65 for the 50 kW class and 4.25 for the 75 and 115 kW classes.

Compare heating input and output at the same test condition.

Rated heating input: 11.18 / 17.65 / 27.10 kW.

Project consumption depends on operating conditions and demand.

Performance data

for colder conditions.

The declared ambient operating range is −15 to 45°C. Separate air 7/6°C and −7/−8°C ratings help assess capacity at colder design points.

At air −7/−8°C: 27.61 / 43.71 / 85.42 kW heating output.

The low-temperature test heats water from 9 to 55°C.

Do not apply standard-condition output to minimum ambient.

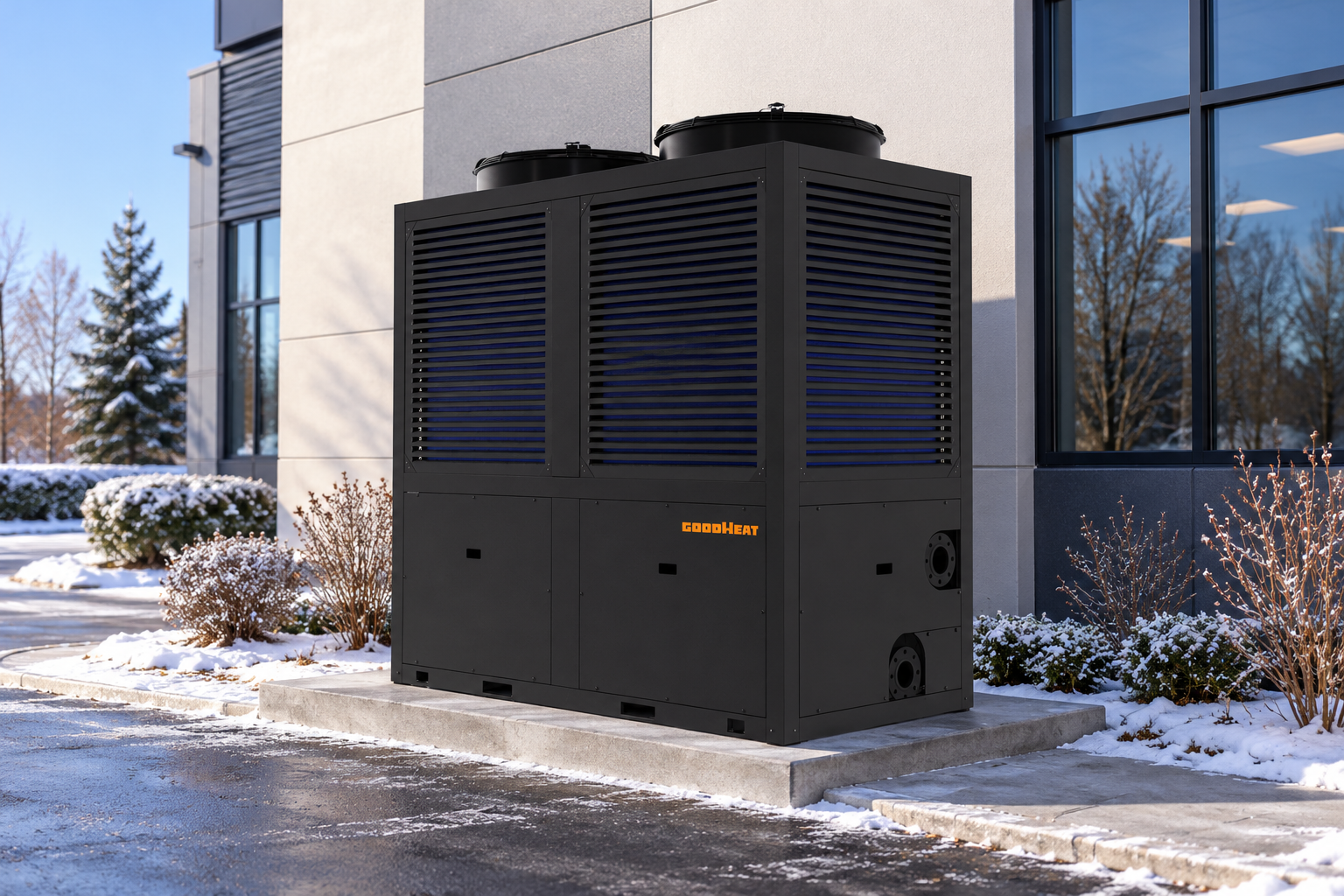

GOODHEAT R290 commercial heat pump on a clear service pad in a winter setting

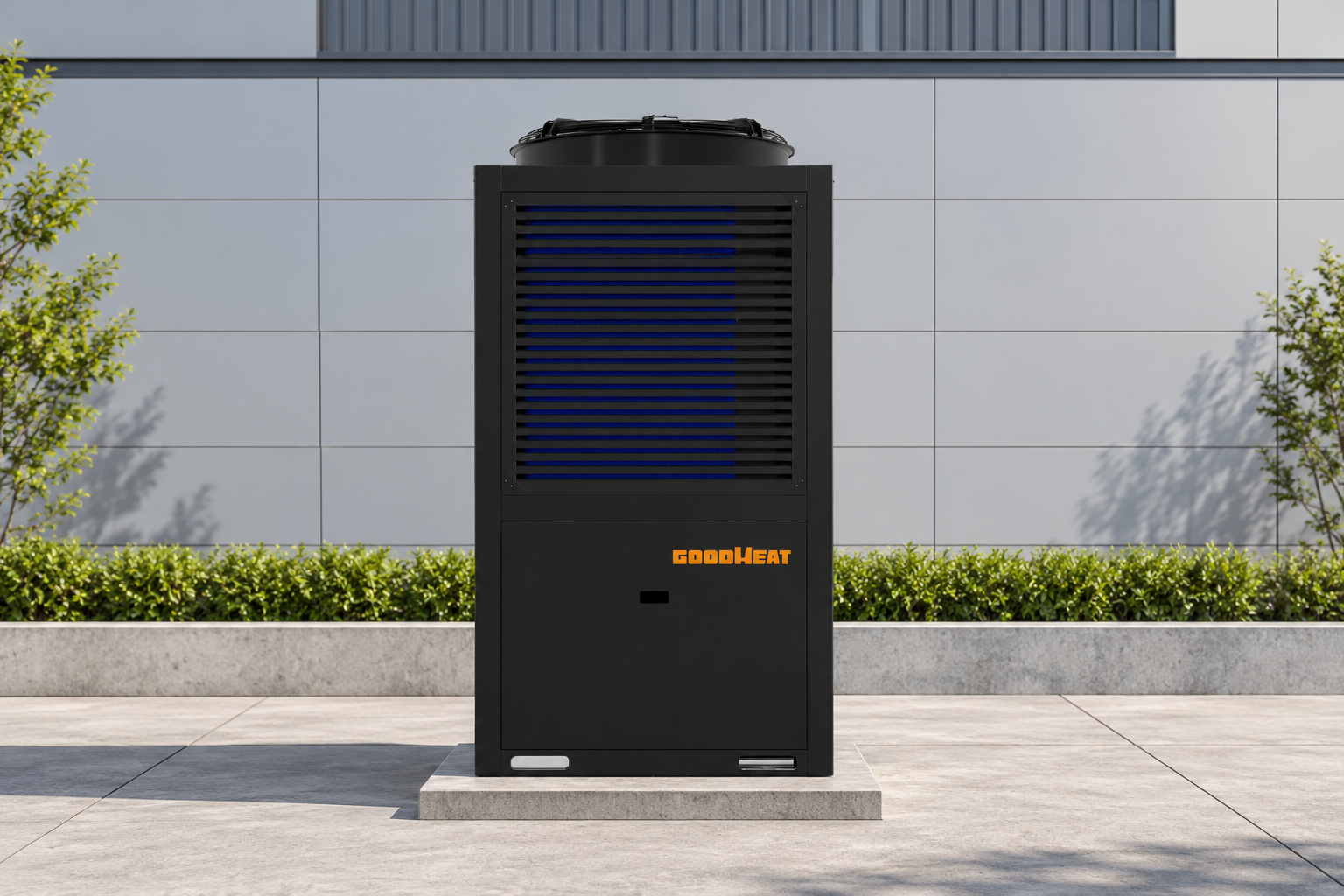

GOODHEAT R290 single-fan commercial heat pump water heater in a building service yard

Water-side details.

Ready for selection.

The listed water-side heat exchanger is coaxial. Connection sizes, rated flow, unit weight and dimensions are provided separately for each capacity class.

Connections: DN40 / DN50 / DN65.

Maximum water pressure: 1.0 MPa; enclosure rating: IPX4.

Check access, structural loading and top-discharge clearance.

Related Products

Plan your commercial hot-water project.

Share peak demand, storage volume, climate and target water temperature.

Compare like operating conditions.

Air temperatures are dry-bulb / wet-bulb (DB/WB). Water temperatures show the heating interval. Scroll horizontally on small screens.
Capacity 50kW 75kW 100kW
Model GHWVTV-50AA1 GHWVTV-75AA1 GHWVTV-115AA1
General Specifications
AC Power Supply (V / Ph / Hz) 380 / 3 / 50
Operating Ambient Temperature (°C) −15~45
Maximum Leaving-Water Temperature (°C) 70
Heating Performance · Air DB 20 °C, WB 15 °C / Water inlet 15 °C, outlet 55 °C
Heating Capacity (kW) 52.00 75.00 115.00
Electrical Power Input (kW) 11.18 17.65 27.10
Coefficient of Performance (COP) 4.65 4.25 4.25
Norminal Hot Water Output (L) 1118 1612 2472
Heating Performance · Air DB 7 °C, WB 6 °C / Water inlet 9 °C, outlet 55 °C
Heating Capacity (kW) 38.45 54.50 106.50
Electrical Power Input (kW) 10.36 15.35 30.00
Coefficient of Performance (COP) 3.71 3.55 3.55
Norminal Hot Water Output (L) 719 1019 1991
Heating Performance · Air DB -7 °C, WB -8 °C / Water inlet 9 °C, outlet 55 °C
Heating Capacity (kW) 27.61 43.71 85.42
Electrical Power Input (kW) 11.27 18.60 36.35
Coefficient of Performance (COP) 2.45 2.35 2.35
Electrical & Refrigerant Specifications
Rated Electrical Power Input (kW) 13.50 19.30 40.00
Rated Input Current (A) 30.50 35.50 74.00
Refrigerant Type / Charge / Declared GWP R290 / 2.50 kg / 3 R290 / 3.80 kg / 3 R290 / 2.50 kg*2 / 3
Rated Water Flow (m³/h) 8.80 13.00 22.90
Water Pressure Drop (MPa) 1.00 1.00 1.00
Water Connection DN40 DN50 DN65
Acoustic Data
Noise Level at 1 m [dB(A)] 40~64 40~66 40~68
Dimensions & Shipping
Net Weight (kg) 160 450 1080
Unit Dimensions (mm) 1210×453×1650 1110×1110×2150 2000×1110×2250

The maximum water temperature and minimum ambient are separate listed limits. The source does not establish 70°C output at −15°C ambient. Obtain the complete operating envelope for the ordered version.


The noise row does not identify sound pressure / sound power, distance or test condition; do not describe it as a 1 m sound-pressure rating. The source hot-water-output rows are labeled only “L”, with no time basis: they are excluded from rate claims pending clarification.

Build the brief.

Confirm the design point.

Why is the 50 kW class shown as 52 kW?

The workbook labels the model column “50KW” and separately declares 52 kW at air 20/15°C with water heated from 15 to 55°C. Both are retained without treating the capacity label as an order code.

Can the unit deliver 70°C at −15°C ambient?

How should I compare the COP values?

Does this page include a PV direct-driven version?

Can the products be controlled in a cascade?

How much hot water can it produce per hour?

Does a rendering identify the exact ordered cabinet?
