| Model | 25kW | 50kW | 100kW | 200kW |
| Power Supply | 380~415V/3ph/50Hz
|
| Heating Capacity at Air 26℃/24℃, Water 26℃ in, 28℃ out |
| Heating Capacity(kW) | 25.0 | 50.0 | 100.0 | 200.0 |
| Power Input(kW) | 4.13 | 8.26 | 17.09 | 34.19 |

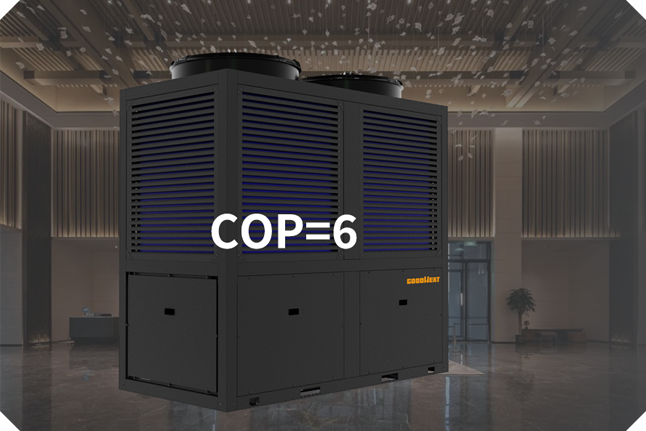

| Coefficient of Performance | 6.05 | 6.05 | 5.85 | 5.85 |
| Heating Capacity at Air 15℃/12℃, Water 26℃ in, 28℃ out |
| Heating Capacity(kW) | 20.0 | 38.0 | 75.0 | 150.0 |
| Power Input(kW) | 4.04 | 7.68 | 15.46 | 30.93 |
| Coefficient of Performance | 4.95 | 4.95 | 4.85 | 4.85 |
| Cooling Capacity at Air 35℃/24℃, Water 29℃ in, 27℃ out |
| Cooling Capacity(kW) | 17.0 | 32.5 | 65.0 | 130.0 |
| Power Input(kW) | 5.23 | 10.00 | 20.25 | 42.62 |
| Energy Efficiency Ratio | 3.25 | 3.25 | 3.21 | 3.05 |
| Max Power Input(kW) | 6.9 | 13.2 | 26.5 | 50 |
| Max Current(A) | 12.3 | 23.5 | 47.5 | 91.5 |

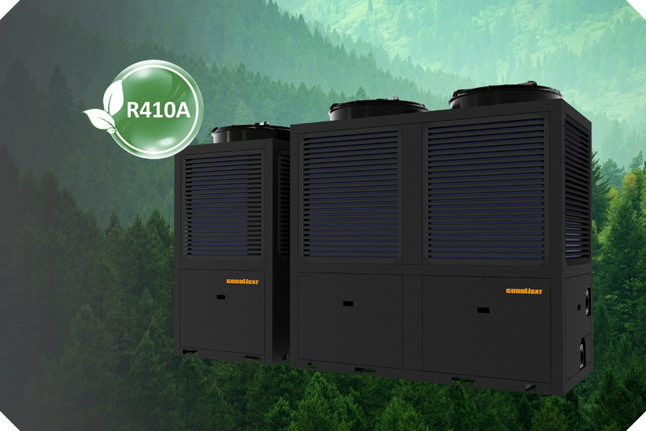

| Refrigerant | R410A
|
| Heat Exchanger | Titanium |
| Expansion Valve | Electronic |
| Air Flow Direction | Vertical |
| Water Flow Volume(m³/h) | 11 | 21 | 43 | 86 |

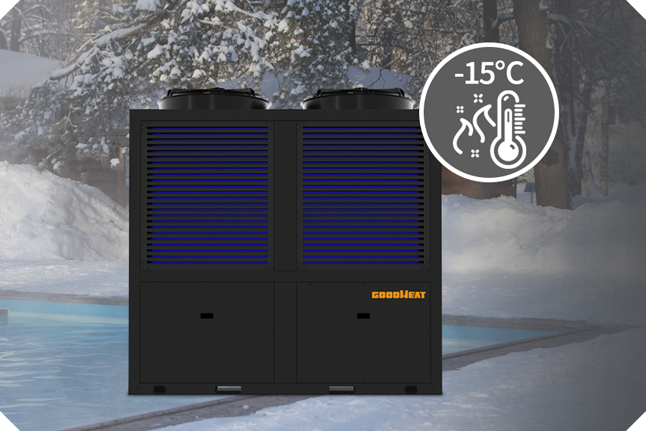

| Working Temp. Range(℃) | -15~43
|

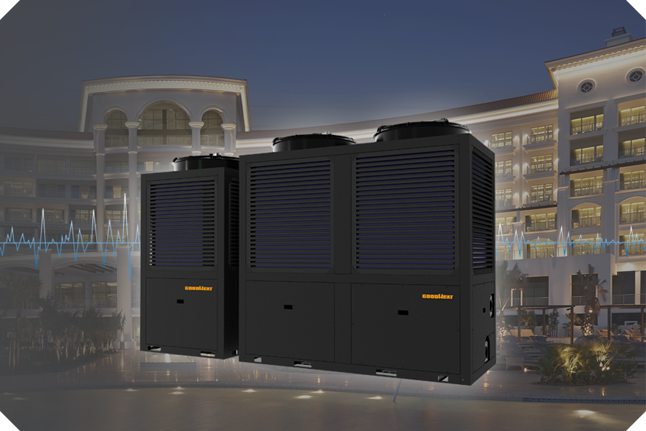

| Noise(dB(A)) | ≤56 | ≤59 | ≤65 | ≤70 |
| Water Connection(mm) | 50 | 65 | 80 | 110 |
| Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data. |
